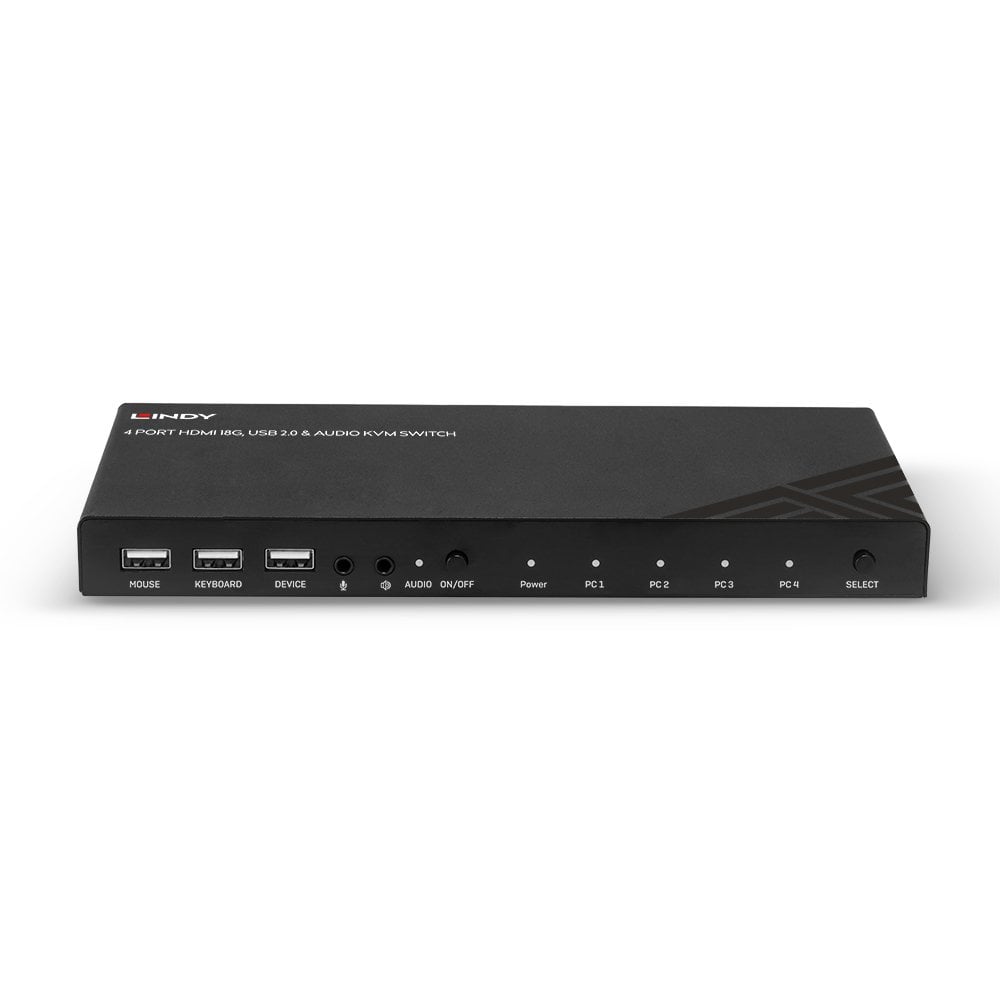

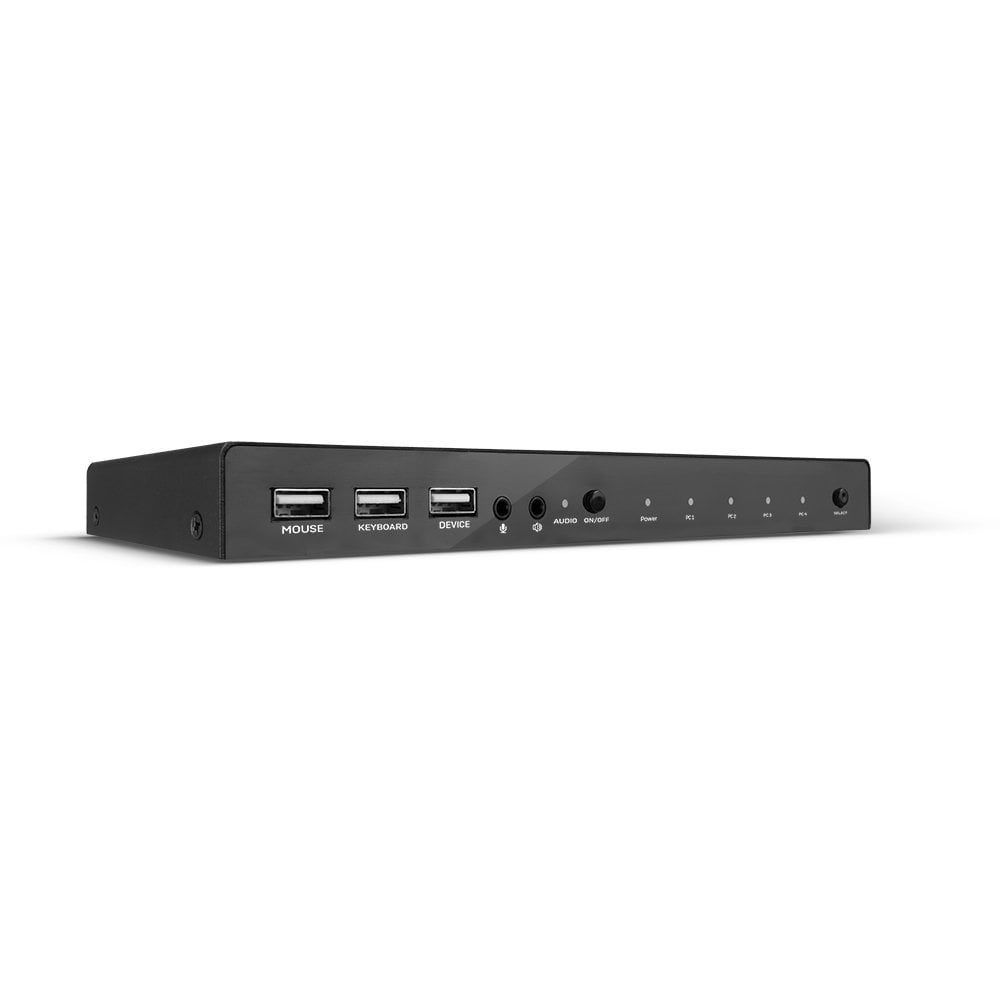

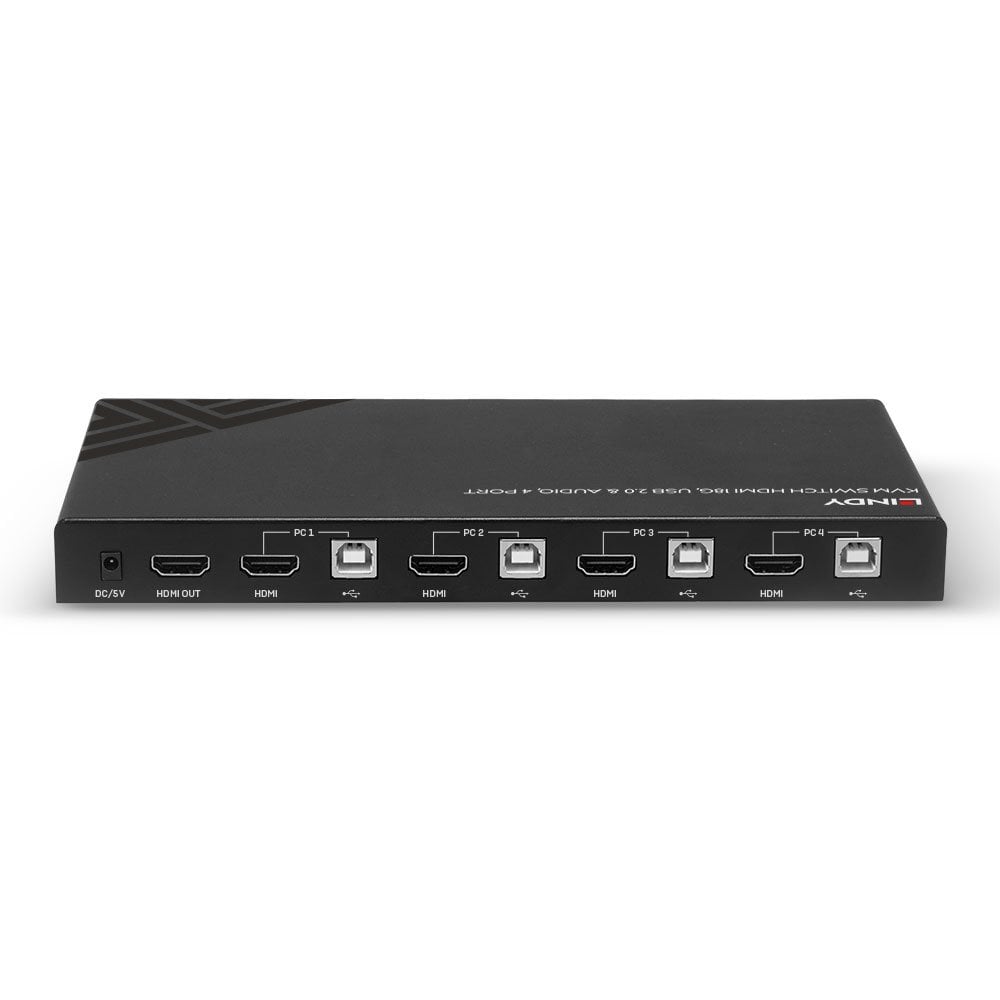

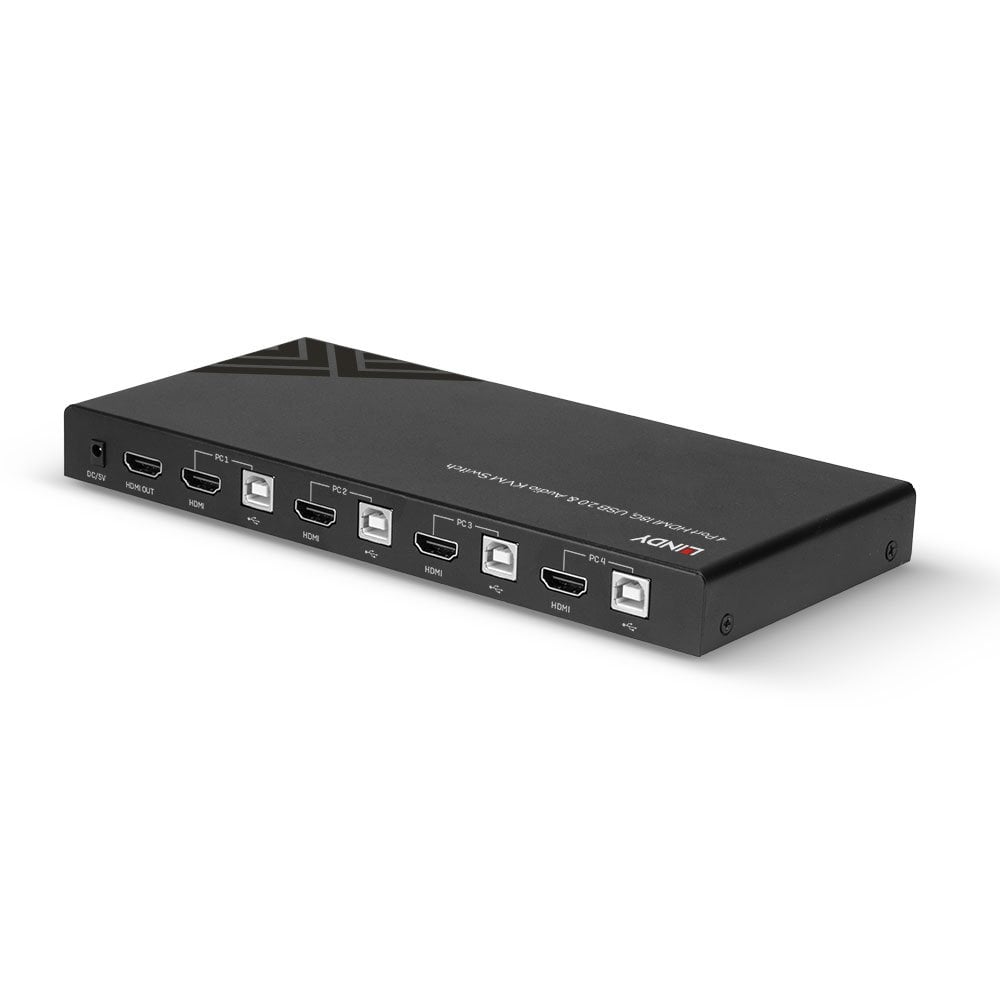

• Lindy 4 Port HDMI 4K60, USB 2.0 & Audio KVM Switch | 32810

  A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

  The Lindy 4 Port HDMI® 4K60, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over four HDMI® equipped PCs from a single keyboard, mouse and monitor setup.

  Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI® signal but to a built-in USB converter while an additional USB device  such as a printer, scanner or hard drive can be connected to the additional USB port on the front panel.

  The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.

• Category	Details
  Specifications
  AV Interface	HDMI®
  Console Interfaces	USB
  Interface Standard	HDMI® 2.0, USB 2.0
  Maximum Resolution	4096×2160@60Hz 4:4:4 8Bit
  HDCP Support	2.2
  Supported Audio	Analogue Stereo
  Separate Audio Ports	2 x 3.5mm (Female)
  Serial Interface	–
  Console Number	1
  Max Number PC/Server	4
  Cascadable	–
  Switching Method	Push Button, Hotkey Switching
  Special Features	USB 2.0 device port, Audio ports with On/Off button, Active LED Indicators
  Connectors
  Console Interfaces	HDMI® Type A (Female), 3 x USB 2.0 Type A (Female), 2 x 3.5mm (Female)
  PC/Server Interfaces	4 x HDMI® Type A (Female), 4 x USB 2.0 Type B (Female)
  Other Interfaces	–
  Power	3.5/1.35mm DC socket
  Physical Properties
  Dimensions WxDxH	231x108x23mm (9.09×4.25×0.91in)
  Housing Material	Metal
  Net Weight	0.689kg (1.52lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-10°C – 60°C (14°F – 140°F)
  Humidity	5 – 80% RH (non-condensing)
  Power Requirements	5VDC 2A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	292x238x55mm (11.5×9.37×2.17in)
  Gross Weight	0.988kg (2.18lb)
  Warranty (Years)	2
  Certificated	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Content
  Included Items	HDMI® KVM Switch Multi-country PSU (UK, EU, US & AUS) Lindy Manual
  Purchasing Information
  No.	32810
  EAN	4002888328104
