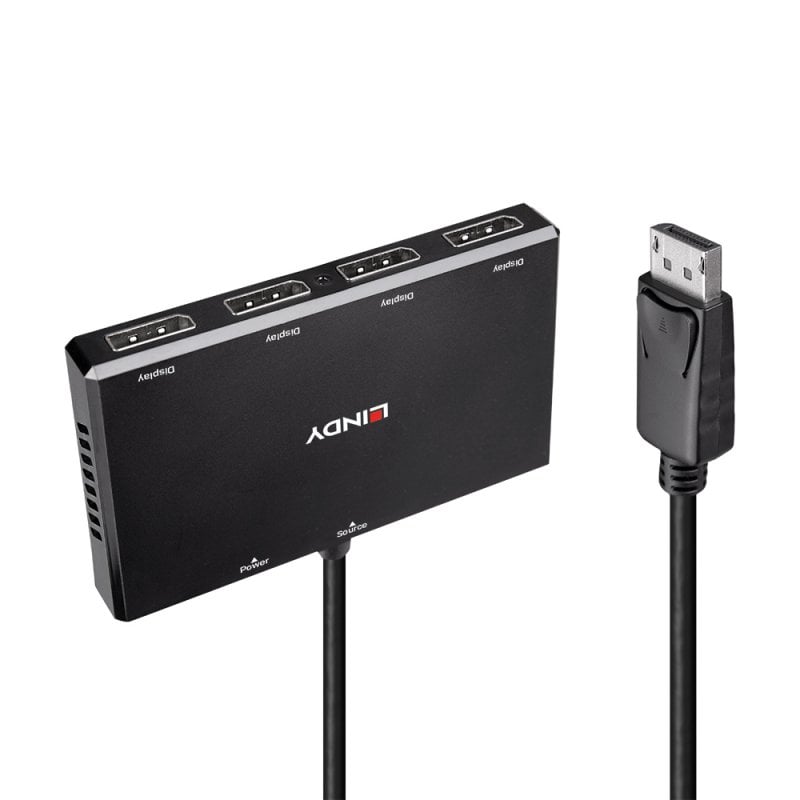

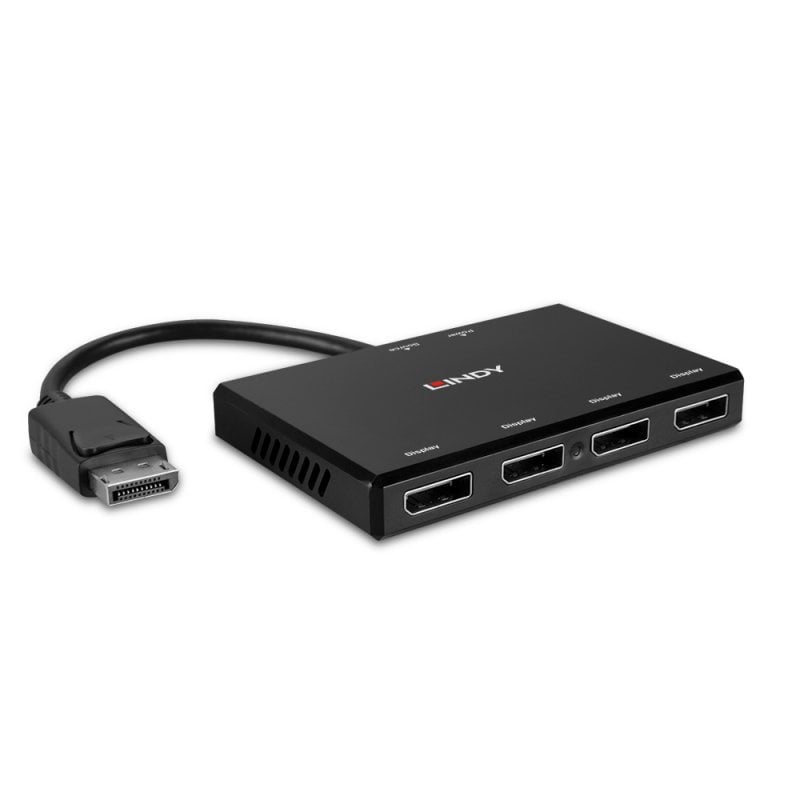

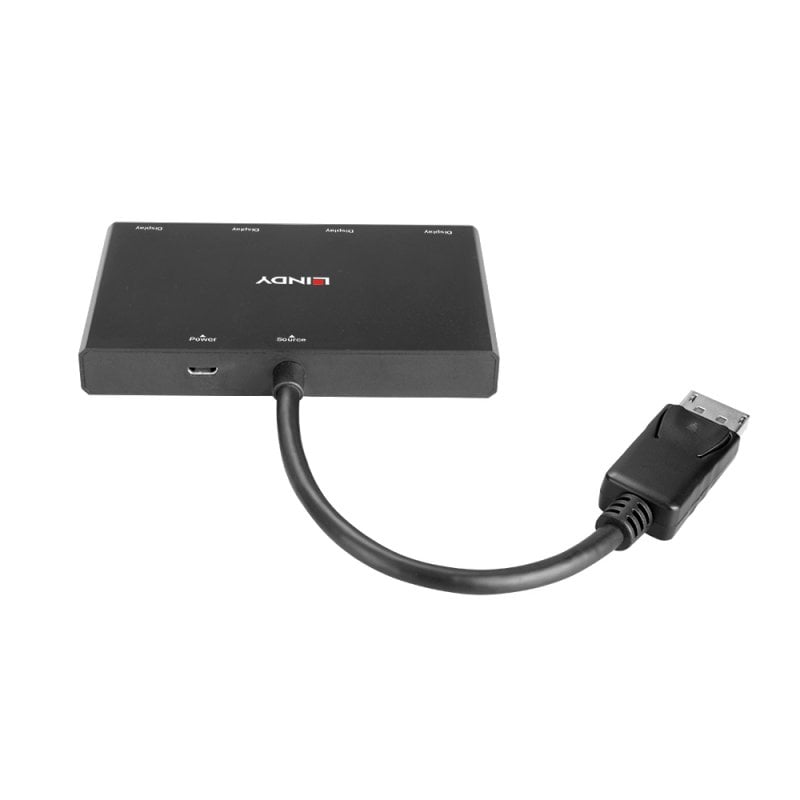

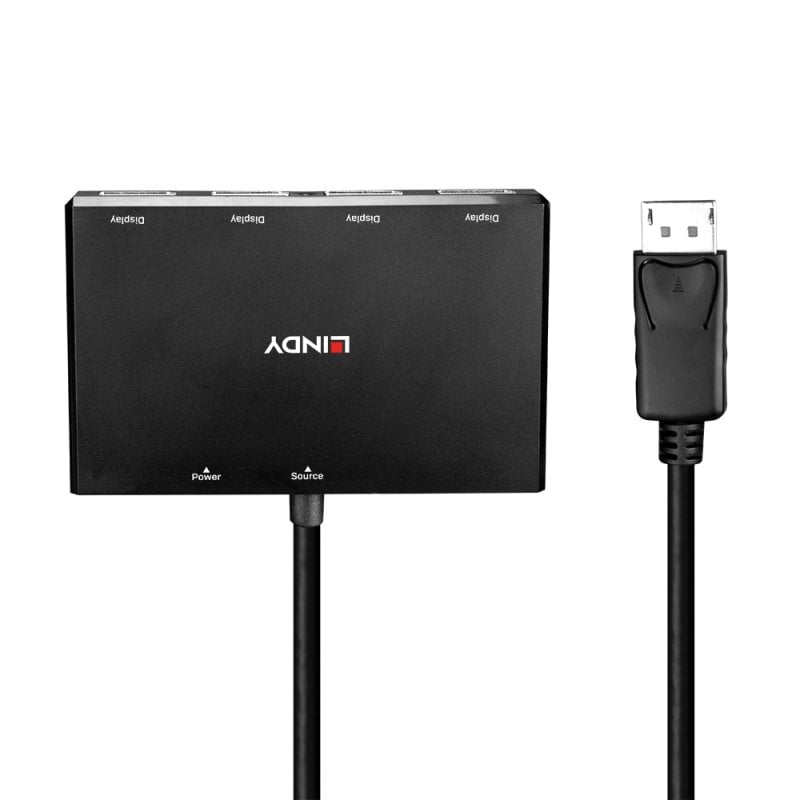

Lindy 4 Port Display Port 1.2 MST Hub | 38431

• Description
• Specifications

• Lindy 4 Port Display Port 1.2 MST Hub | 38431

  The Lindy 4 Port DP MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 4 DisplayPort monitors.  MST hubs allow for the connection of a single DP source device including computers, laptops or notebooks to 4 separate DP displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across the displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on the displays for use in hospitality, retail or educational scenarios.

  With support up to 3840×2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.

  Please note: This hub is not compatible with Apple products

• Category	Details
  Specifications
  AV Interface	DisplayPort
  Interface Standard	DP 1.2
  Supported Bandwidth	21.6 Gbit/s
  Maximum Resolution	2 x 3840×2160@30Hz 4:4:4 8bit; 4 x 1920×1080@60Hz 4:4:4 8bit
  HDCP Support	HDCP 1.4
  Supported Audio	Up to 7.1CH
  Separate Audio Ports	–
  CEC Support	–
  Serial Interface	–
  Special Features	–
  Connectors
  Input	DisplayPort (Male)
  Output	4 x DisplayPort (Female)
  Control	–
  Power	Micro-USB (Female)
  Physical Properties
  Dimensions	105x14x65mm (4.13×0.55×2.56in)
  Housing Material	ABS
  Net Weight	0.12kg (0.26lb)
  Operating Temperature	-20°C – 40°C (-4°F – 104°F)
  Storage Temperature	-40°C – 80°C (-40°F – 176°F)
  Humidity	5-90% RH (Non-condensing)
  Power Requirements	5VDC 1A
  Colour	Black
  Miscellaneous
  Packaging Type	Polybag
  Packaging Dimensions	174x194x20mm (6.85×7.64×0.79in)
  Gross Weight	0.131kg (0.29lb)
  Warranty	2 years
  Certified	CE, UKCA, FCC, RoHS & REACH
  Package Content	DisplayPort MST Hub, USB Micro-B to USB Type A Cable
  Purchasing Information	No.: 38431, EAN: 4002888384315
