Lindy 4 Port Automatic Optical Audio Switch | 70437

• Description
• Specifications
• Downloads

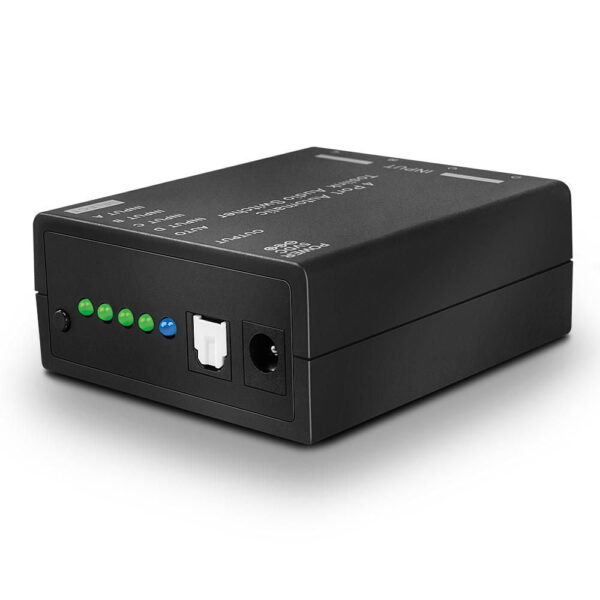

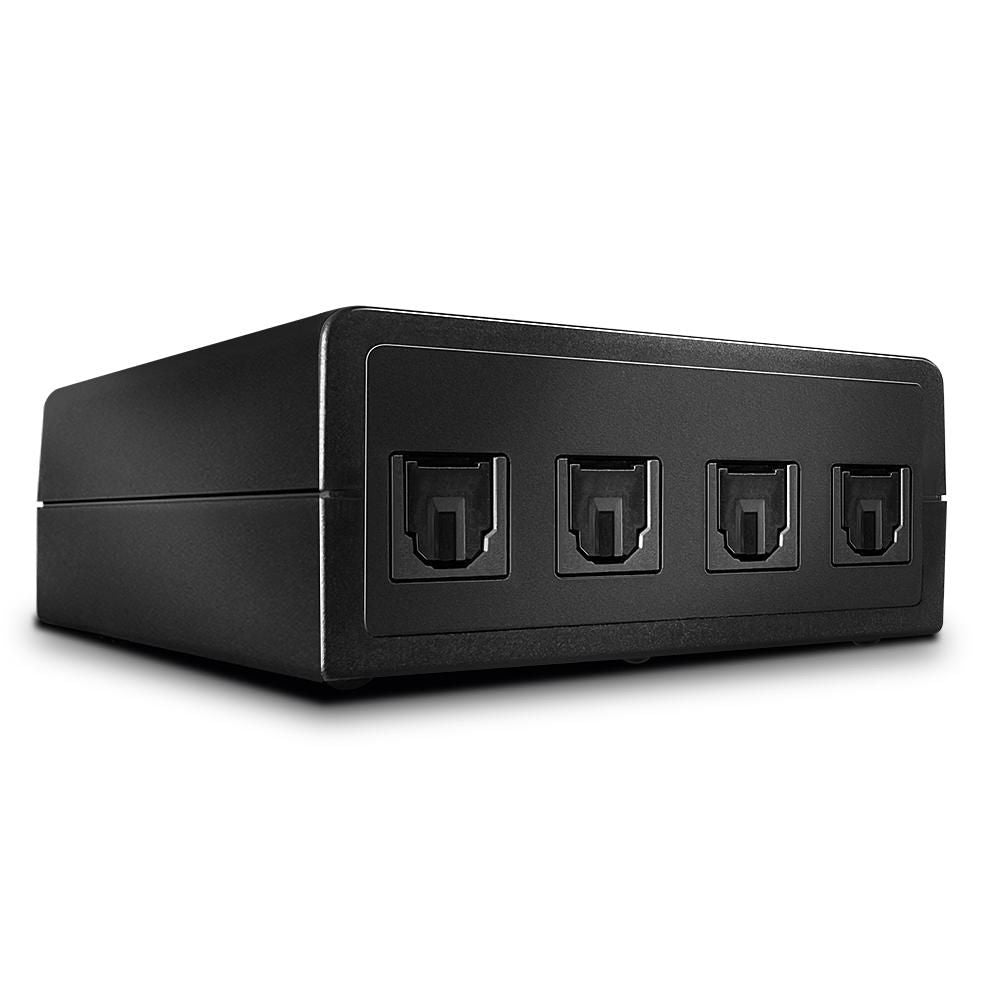

• Lindy 4 Port Automatic Optical Audio Switch


  Connects four digital optical Toslink sources to a single optical Toslink input
  Automatic or manual switch function
  Input ports: 4 x Toslink (Optical Fibre)
  Output Ports: 1 x Toslink (Optical Fibre)
  2 year warranty

  The Lindy 4 Port Automatic Optical Audio Switch allows users to connect four digital optical Toslink sources to a single optical TosLink (SPDIF) input on an AV amplifier, Hi-Fi or home cinema system.
  The optical switch will automatically detect the live signal and switch to this channel.
  Ideal for use with games consoles, HD players, set top boxes, PC’s etc. and saves on wear and tear of constant plugging and unplugging of cables.

• Category	Details
  AV Interface	TosLink
  Interface Standard	–
  Bandwidth	32 – 96kHz
  Supported Audio	S/PDIF, 2-Channel LPCM, Uncompressed PCM / LPCM, Dolby AC-3, Dolby 5.1, Dolby Digital, DTS
  Connectors – Input	4 x TosLink (Optical Fibre)
  Connectors – Output	1 x TosLink (Optical Fibre)
  Control	–
  Power	5.5/2.1mm DC socket
  Dimensions (WxDxH)	75x65x30mm (2.95×2.56×1.18in)
  Housing Material	Plastic
  Net Weight	0.057kg (0.13lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 70°C (-4°F – 158°F)
  Humidity	20 – 80% RH (non-condensing)
  Power Requirements	5VDC 1.2A
  Colour	Black
  Packaging Type	Carton Box
  Packaging Dimensions	155x120x60mm (6.1×4.72×2.36in)
  Gross Weight	0.293kg (0.65lb)
  Warranty (Years)	2
  Certified	CE, UKCA, FCC, RoHS & REACH
  Package Contents	4 Port Automatic Optical Audio Switch, Multi-Country Power Supply (EU, UK, US & AUS), Lindy Manual
  Purchasing Information	No.: 70437, EAN: 4002888704373

• Description	Downloads
  Lindy 4 Port Automatic Optical Audio Switch | 70437 User Manual	Downloads
