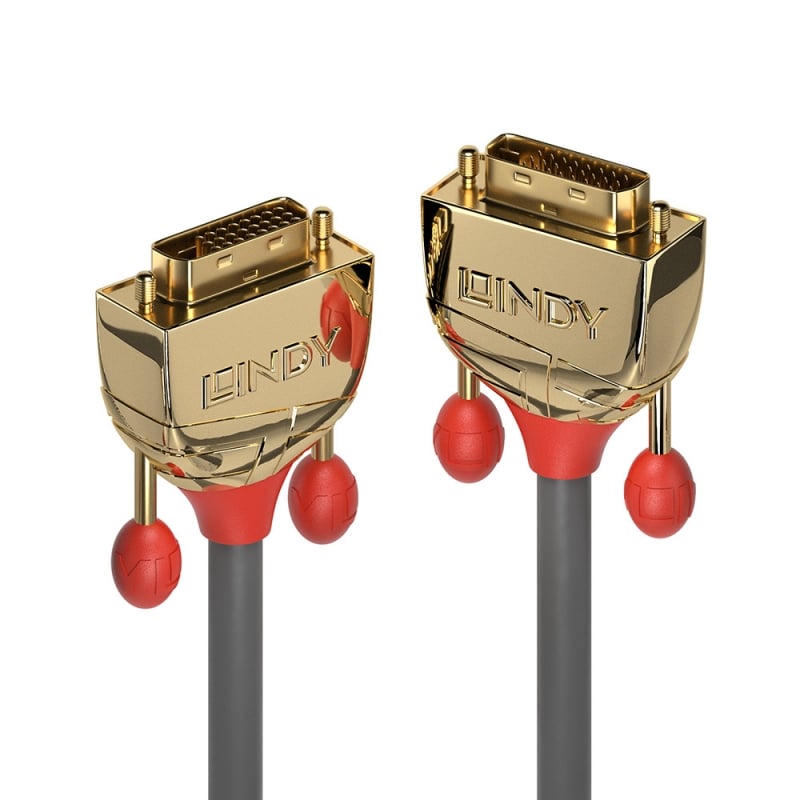

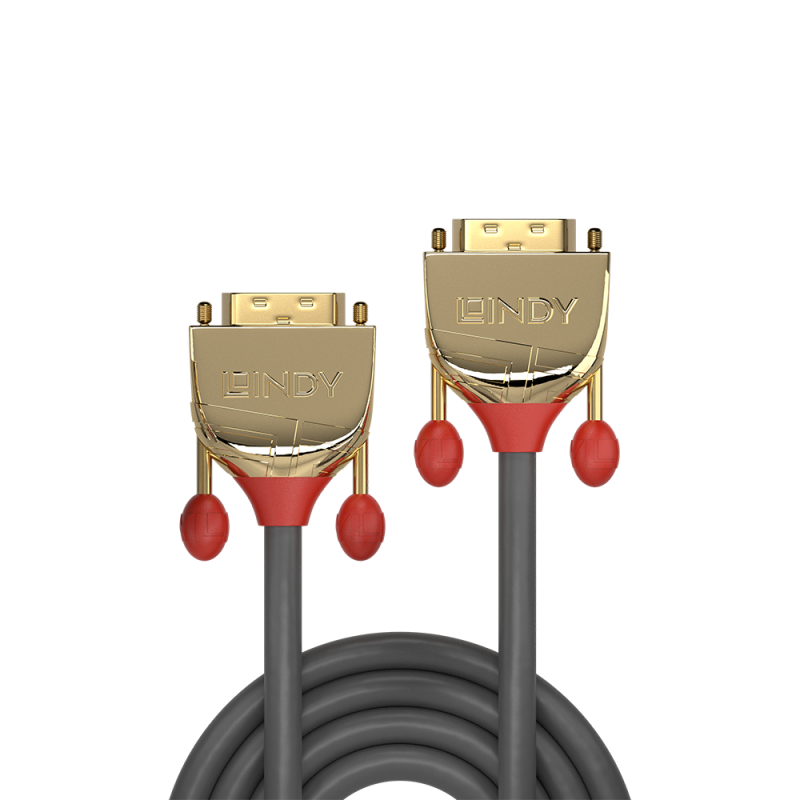

Lindy 3m DVI-D Dual Link Cable, Gold Line | 36203

• Description
• Specifications
• Downloads

• Lindy 3m DVI-D Dual Link Cable, Gold Line | 36203

  From the Lines cable connectivity concept by Lindy, Gold Line DVI-D Dual Link cables are the no compromise, high resolution connection solution for use in the most demanding professional environments.

  Gold Line DVI-D Dual Link cables feature triple shielded construction with 28AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

  The full metal housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.

  These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.

  Gold Line DVI-D Dual Link cables support DVI resolutions up to 2560×1600@60Hz including HD resolutions up to 1080p.

  Gold DVI-D Dual Link cables are available in lengths from 0.5m to 25m.

• Category	Details
  Connectors	– Connector A: DVI-D Male (Dual Link)
  	– Connector B: DVI-D Male (Dual Link)
  	– Housing Material: 24K Gold Plated Metal
  	– Connector Plating: 24K Gold 3µm
  	– Pin Construction: Phosphor Bronze
  	– Pin Plating: 24K Gold 15µm
  	– Dimensions: 39.5×16.5×44.5mm (1.55×0.65×1.73in)
  Cable Construction	– Length: 3m (9.84ft)
  	– Standard: DVI-D Dual Link
  	– Colour: Grey
  	– Type: Round
  	– Jacket Diameter: 8.6mm (0.34in)
  	– Jacket Material: PVC
  	– Conductor Material: OFC Copper
  	– Conductor Gauge: 28AWG
  	– Shielding: Copper Braid 85%
  Specifications	– Supported Bandwidth: 9.9 Gbps
  	– Maximum Resolution: 2560×1600@60Hz
  	– Nominal Attenuation: 1 – 825Mhz < 8db
  	– Minimum Bend Radius: 120mm (4.72in)
  	– Operating Temperature: -20°C – 80°C (-4°F – 176°F)
  	– Storage Temperature: -25°C – 85°C (-13°F – 185°F)
  Miscellaneous	– Packaging Type: Polybag
  	– Warranty (Years): 25
  	– Certifications: RoHS, REACH, UL
  Purchasing Info	– Product No.: 36203
  	– EAN: 4002888362030
  	– Available Lengths: 0.5m to 25m (1.64ft to 82.02ft)
