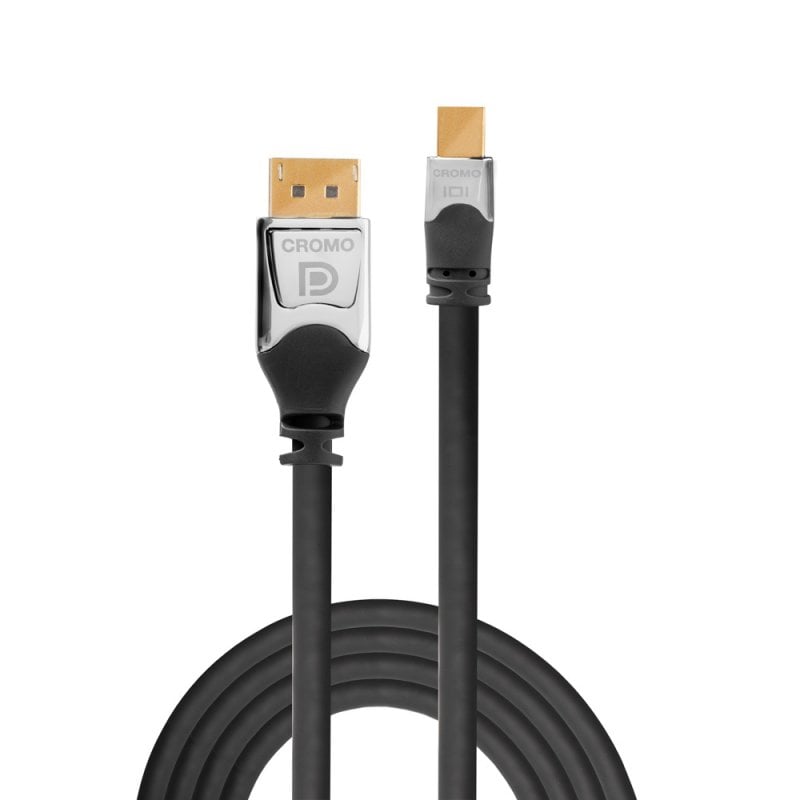

Lindy 3m CROMO Mini DisplayPort to DisplayPort Cable | 36313
CROMO Mini DisplayPort To DisplayPort Cables feature triple shielded construction with 30AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. CROMO DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
CROMO cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.
Package Contents
3m CROMO Mini DP to DP Cable -
Category Details Connectors Connector A Mini DisplayPort Male Connector B DisplayPort Male Housing Material Chrome-Plated ABS Connector Plating 24K Gold 3µm Pin Construction Phosphor Bronze Pin Plating 24K Gold 15µm Dimensions (Mini DP) 10x7x32mm (0.39×0.28×1.26in) Dimensions (DP) 19.7x12x38.9mm (0.77×0.47×1.53in) Cable Construction Length 3m (9.84ft) Standard DisplayPort 1.2 Colour Grey Type Round Jacket Diameter 6.5mm (0.256in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge 30AWG Shielding Copper Braid 85% Specifications Supported Bandwidth 21.6 Gbps Maximum Resolution 4096×2160@60Hz 4:4:4 10bit Nominal Attenuation 300kHz-825MHz <5dB 825MHz-2.475GHz <5dB 2.475GHz-4.125GHz <12dB 4.125GHz-5.1GHz <20dB Minimum Bend Radius 55mm (2.17in) Operating Temperature -20°C – 80°C (-4°F – 176°F) Storage Temperature -25°C – 85°C (-13°F – 185°F) Miscellaneous Packaging Type Polybag Warranty 10 years Certificates RoHS, REACH, UL Purchasing Information Item Number No. 36313 EAN 4002888363136 Available Lengths 0.5m, 1m, 2m, 3m, 5m (with respective item numbers) -
