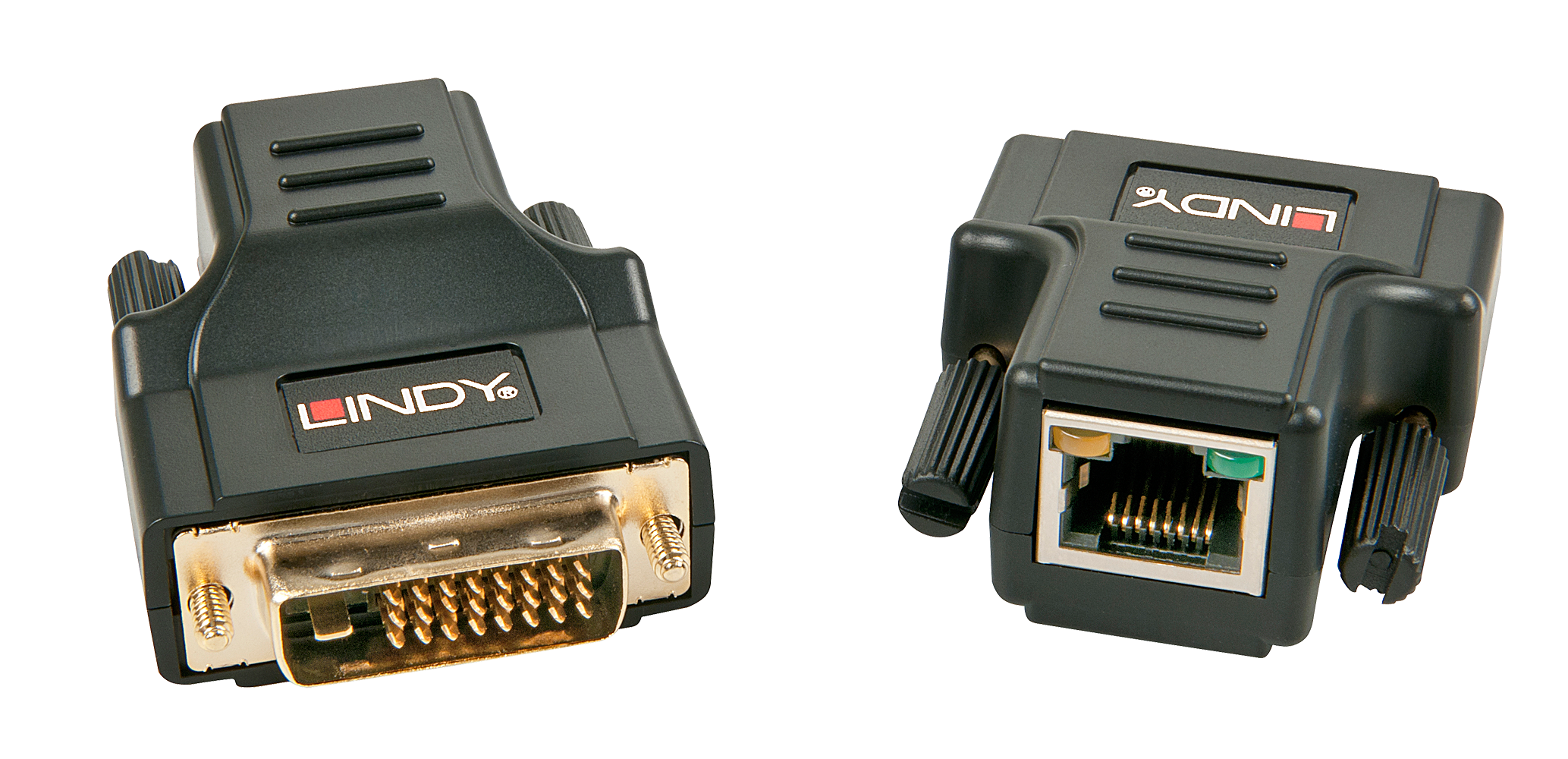

Lindy 30m Cat.6A DVI-D Single Link Extender – 32599

• Description
• Specifications
• Downloads

• Lindy 30m Cat.6A DVI-D Single Link Extender – 32599

  Allows DVI-D video signals to be sent up to 30m using low cost (not included)
  Supports HDTV resolutions of 480i, 576i, 480p, 576p, 720p and 1080p
  HDCP not suported
  Dimensions: 4 x 5 x 2.5cm (WxDxH)
  2 year warranty

• Category	Details
  Specifications
  AV Interface	DVI-D
  Interface Standard	DVI-D 1.1 (Single Link)
  Supported Bandwidth	4.95 Gbps
  Maximum Distance	30m (98.42ft) – 1024×768@60Hz / Cat.6a
  	20m (65.62ft) – 1680×1050@60Hz / Cat.6
  	15m (49.21ft) – 1920×1200@60Hz / Cat.6a
  Maximum Resolution	1920×1200@60Hz
  HDCP Support	–
  EDID Pass Through	–
  Supported Audio	–
  Separate Audio Ports	–
  IR Support	–
  CEC Support	–
  Serial Interface	–
  Transmission Protocol	–
  Transmission Medium	1 x Cat.6A / Cat.6
  Laser Class	(only for Fibre) –
  Wavelength	(only for Fibre) –
  Chipset	–
  Special Features	–
  Connectors
  Transmitter Input	DVI-D (Male)
  Transmitter Output	RJ45 (Female)
  Receiver Input	RJ45 (Female)
  Receiver Output	DVI-D (Male)
  Bidirectional Ports	–
  Power	–
  Physical Properties
  Dimensions (WxDxH)	40x50x25mm (1.57×1.97×0.98in) per unit
  Housing Material	Plastic
  Net Weight	0.028kg (0.06lb) per unit
  Operating Temperature	0°C – 55°C (32°F – 131°F)
  Storage Temperature	-20°C – 85°C (-4°F – 185°F)
  Humidity	0 – 95% RH (non-condensing)
  Power Requirements	–
  Colour	Black
