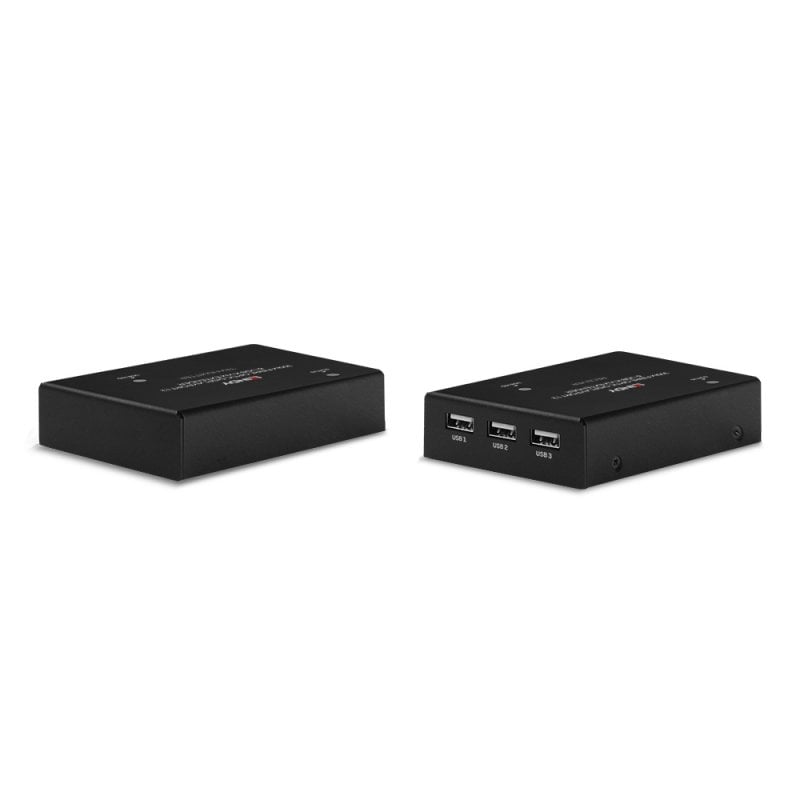

Lindy 300m Fibre Optic DisplayPort 1.2 & USB KVM Extender | 39376

• Description
• Specifications
• Downloads

• Lindy 300m Fibre Optic DisplayPort 1.2 & USB KVM Extender | 39376

  KVM Extenders are devices which allow users to work on a computer from a distance by extending the connection between a computer and keyboard, monitor and mouse.

  The Fibre Optic DisplayPort 1.2 KVM Extender is an effective, reliable solution for extending high quality 4K DisplayPort signals over distances up to 300m with standard LC fibre cable. Support for DisplayPort 1.2 allows for the transmission of highly detailed 3840×2160@60Hz resolutions, perfect for eye catching digital signage or detailed content in medical setups.

  This extender also supports lossless audio formats including Dolby TrueHD and DTS-HD to add powerful multi-channel sound to video content, providing an enhanced experience and sense of immersion for the viewer. USB KM connectivity via 3 USB HID ports allow for a keyboard and mouse at the receiver to control a DP equipped PC from a remote PC setup, which can be stored in a secure or controlled temperature environment, while seamlessly providing consistent video content from the display. The use of LC fibre between the transmitter and receiver provides a reliable, lower cost connection for much longer distances that what is possible over copper cabling, great for use in electronically “noisy” environments such as factory shop floors or medical installations.

  With the ability to extend signals up to 300m using the two included units, the transmitter can be easily connected to a variety of DisplayPort source devices such as PCs and laptops in a more convenient location, while the receiver can be placed in a suitable viewing area with a LFD (large format display), monitor or projector, ensuring there is no distraction from the display from bulky source devices. This versatility provides a suitable system for use in various scenarios such as educational presentations, CAD facilities or remote server administration.

  The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver, further enhancing this system focus on providing high quality 4K DP content over distances easily and with minimum hassle for the user.

• Category	Specification
  AV Interface	DisplayPort
  Console Interface	USB
  Interface Standard	DisplayPort 1.2, USB HID
  Supported Bandwidth	21.6Gbps
  Maximum Distance	300m (984.24ft)
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	1.3
  Supported Audio	Digital Audio Pass-through
  Separate Audio Ports	–
  Transmission Protocol	TMDS
  Transmission Medium	1 x Duplex LC (50/125µm)
  Laser Class	Class 1
  Wavelength	850nm
  Special Features	Automatic EDID Management

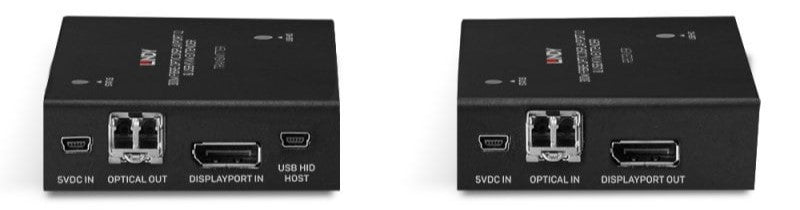

  Connectors
  Transmitter KVM Interfaces	DisplayPort (Female), USB Type Mini-B (Female)
  Transmitter Extension Port	SFP Multi-Mode Duplex
  Receiver Console Interface	DisplayPort (Female), 3 x USB Type A (Female)
  Receiver Extension Port	SFP Multi-Mode Duplex
  Bi-directional Ports	–
  Other Interfaces	–
  Power	USB Type Mini-B (Female)
  Physical Properties
  Dimensions (WxDxH)	75x101x25mm (2.95×3.98×0.98in)
  Housing Material	Metal
  Net Weight	1.05kg (2.31lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 80°C (-4°F – 176°F)
  Humidity	0 – 90% RH (non-condensing)
  Power Requirements	5VDC 2A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	175x306x74mm (6.89×12.05×2.91in)
  Gross Weight	1.25kg (2.76lb)
  Warranty (Years)	2
  Certifications	CE, UKCA, FCC, RoHS & REACH
  Package Contents
  Contents	Transmitter, Receiver, SFP Modules, USB Cables, Power Supplies, Rubber Feet, Manual
  Purchasing Information
  No.	39376
  EAN	4002888393768

• Description	Downloads
  Manual	Download
