• Lindy 300m Cat.6 4 Port VGA Splitter Extender Transmitter | 35403

  VGA splitter extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.

  The Lindy 300m Cat.6 4 Port VGA Splitter is a high-quality solution for extending 4 separate analogue VGA signals over long distances using standard network cables when combined with the compatible receiver unit (35404). Supporting resolutions up to 1920×1080, this extender splitter provides high quality video for up to 4 separate distribution zones, such as classrooms or in security facilities. A 3.5mm female port ensures source devices or embedded audio can be added within the connection.

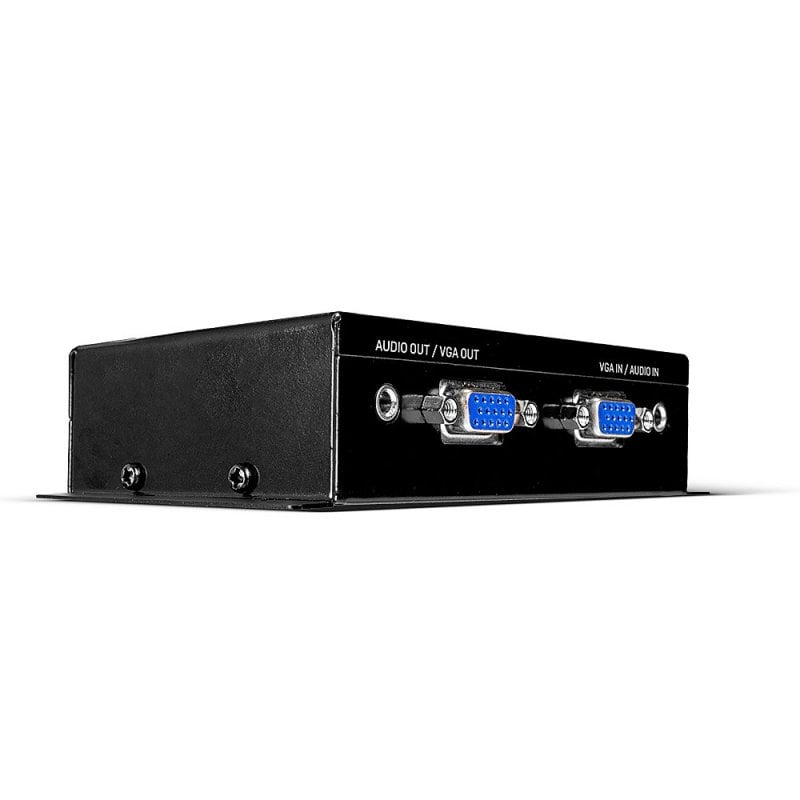

  The VGA loop-out allows for the connection of a local display, great for monitoring and control of the setup. Dual mono audio extraction also provides the possibility of connecting speakers to the local setup.

  The transmitter has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.

• Category	Details
  AV Interface	VGA
  Interface Standard	–
  Supported Bandwidth	350MHz
  Maximum Distance	300m (984.24ft)
  Maximum Resolution	300m: 640×480 200m: 800×600 180m: 1024×768 120m: 1280×1024 100m: 1920×1080
  HDCP Support	–
  EDID Pass Through	–
  Supported Audio	Dual Mono
  Separate Audio Ports	3.5mm
  IR Support	–
  CEC Support	–
  Serial Interface	–
  Transmission Protocol	–
  Transmission Medium	1 x Cat.5e/6
  Chipset	EL4543IUZ
  Special Features	Local VGA Output, Dual Mono Audio Extraction, Mountable Housing
  Transmitter Input	VGA (Female), 3.5mm (Female)
  Transmitter Output	VGA (Female), 3.5mm (Female), 4 x RJ-45 (Female)
  Receiver Input	–
  Receiver Output	–
  Bi-directional Ports	–
  Power	5.5/2.1mm DC socket
  Dimensions (WxDxH)	135.4x73x31mm (5.33×2.87×1.22in)
  Housing Material	Metal
  Net Weight	0.484kg (1.07lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 70°C (-4°F – 158°F)
  Humidity	20 – 80% RH (non-condensing)
  Power Requirements	12VDC 1.2A
  Colour	Black
  Packaging Type	Carton Box
  Packaging Dimensions	177x75x110mm (6.97×2.95×4.33in)
  Gross Weight	0.547kg (1.21lb)
  Warranty	2 Years
  Certification	CE, FCC, RoHS, REACH & California Proposition 65
  Package Contents	300m 4 Port Cat.6 VGA Splitter, 4 x Mounting Screws, Multi-country Power Supply (UK, EU, US & AUS), Lindy Manual
  Part Number	35403
  EAN	4002888354035
