Lindy 300m Cat.6 2 Port VGA Receiver | 35404

• Description
• Specifications

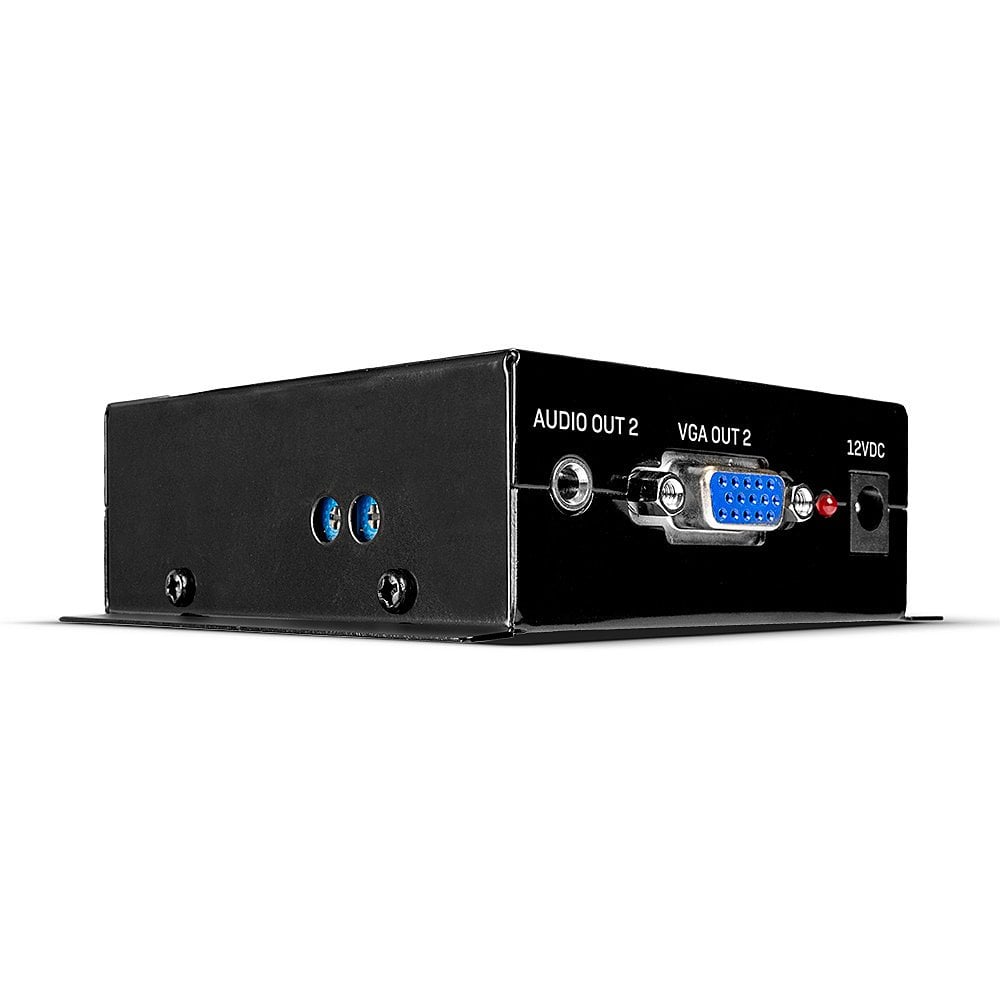

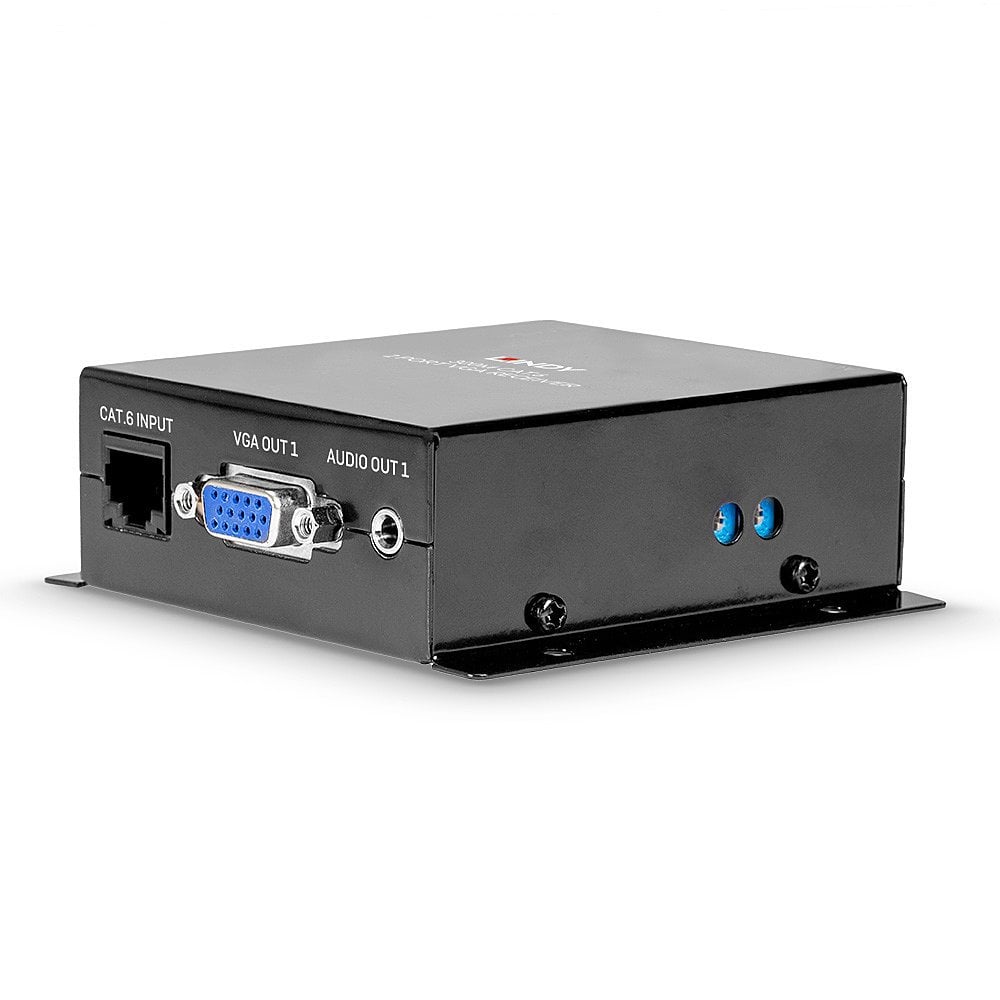

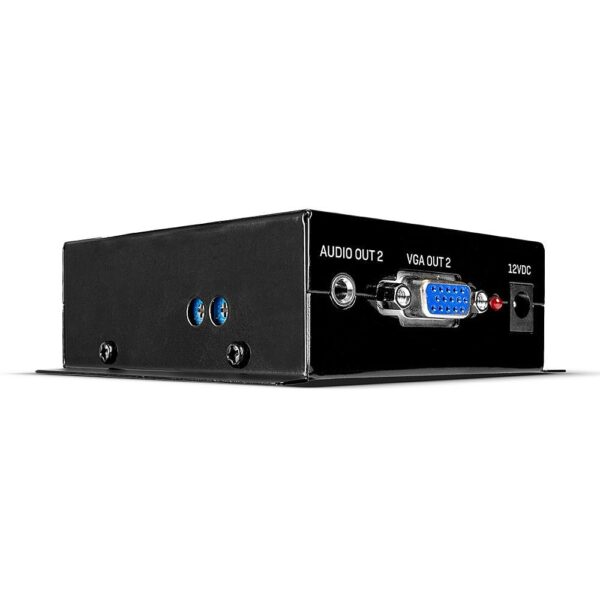

• Lindy 300m Cat.6 2 Port VGA Receiver

  Receives VGA signals over 300m network cable from the compatible transmitter (35403)
  Distribute the received signal across 2 separate VGA displays
  Supports resolutions up to 1920×1080, with dual mono audio extraction
  Adjustable EQ & gain control for ensuring optimum image quality
  2 year warranty

  VGA extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.

  The Lindy 300m Cat.6 2 Port VGA Receiver is an ideal solution for distributing VGA signals to a single, or dual separate VGA display. Connected to the compatible transmitter (35403) via standard network cable, this receiver provides transmission of VGA signals up to 1920×1080, great for creating 4 separate distribution zones, such as classrooms or in security facilities. Dual VGA output ports allow for the connection of 2 separate VGA displays or projectors at the receiver side, useful when presenting information across multiple screens whether in monitoring and control, or smaller retail setups. 3.5mm dual mono audio connections also ensure speakers can be connected for supporting video content with high quality clear audio.

  EQ and gain controls, for sharpness and brightness, can be easily adjusted to ensure the optimum picture quality is always shown .

  The receiver has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.

• Specifications	Details
  AV Interface	VGA
  Interface Standard	–
  Supported Bandwidth	350MHz
  Maximum Distance	300m (984.24ft)
  Maximum Resolution	300m (984.24ft) – 640×480<br>200m (656.16ft) – 800×600<br>180m (590.54ft) – 1024×768<br>120m (393.7ft) – 1280×1024<br>100m (328.08ft) – 1920×1080
  HDCP Support	–
  EDID Pass Through	–
  Supported Audio	Dual Mono
  Separate Audio Ports	3.5mm
  IR Support	–
  CEC Support	–
  Serial Interface	–
  Transmission Protocol	–
  Transmission Medium	1 x Cat.5e/6
  Laser Class (only for Fibre)	–
  Wavelength (only for Fibre)	–
  Chipset	ISL59910
  Special Features	Dual Mono Audio Extraction<br>Mountable Housing
  Connectors
  Transmitter Input	–
  Transmitter Output	–

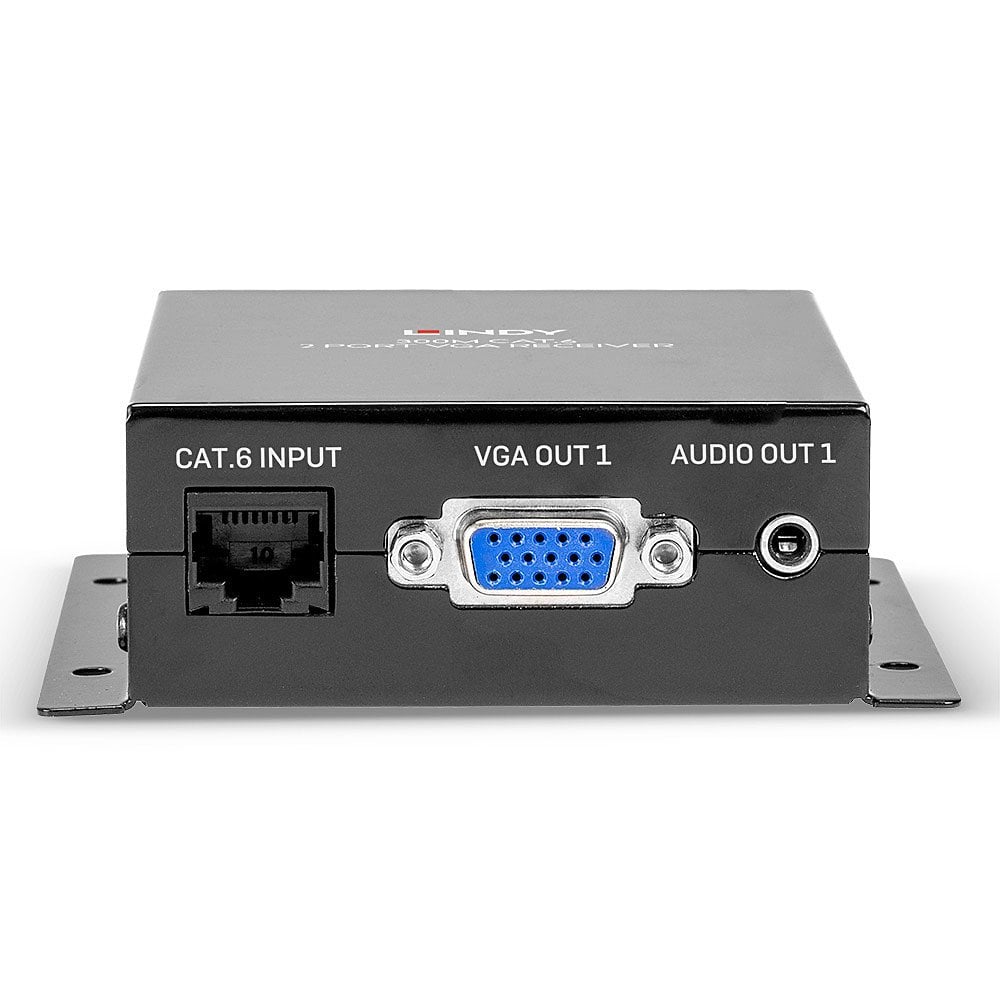

  Receiver Input	RJ-45 (Female)

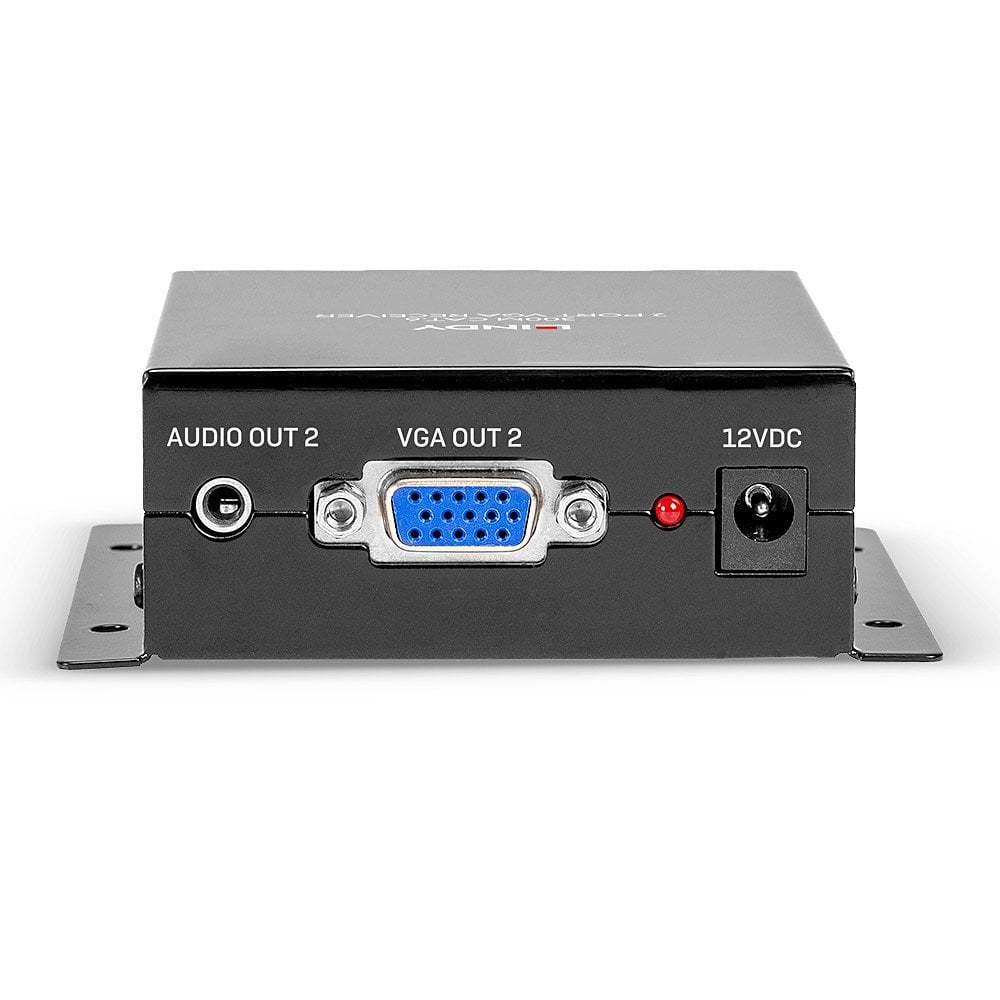

  Receiver Output	2 x VGA (Female), 2 x 3.5mm (Female)
  Bi-directional Ports	–
  Power	5.5/2.1mm
  Physical Properties
  Dimensions (WxDxH)	87.6×94.6x31mm (3.45×3.72×1.22in)
  Housing Material	Metal
  Net Weight	0.396kg (0.87lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 70°C (-4°F – 158°F)
  Humidity	20 – 80% RH (non-condensing)
  Power Requirements	12VDC 1.2A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	177x75x110mm (6.97×2.95×4.33in)
  Gross Weight	0.481kg (1.06lb)
  Warranty (Years)	2
  Certified	CE, FCC, RoHS, REACH & California Proposition 65
  Package Contents
  300m 2 Port Cat.6 VGA Receiver
  Mounting Screws	4 x Mounting Screws
  Multi-country Power Supply	UK, EU, US & AUS
  Lindy Manual
  Purchasing Information
  No.	35404
  EAN	4002888354042
