• Lindy 300m/1000m Fibre Optic HDMI 4K60, IR, RS232 & Audio Extender | 38174

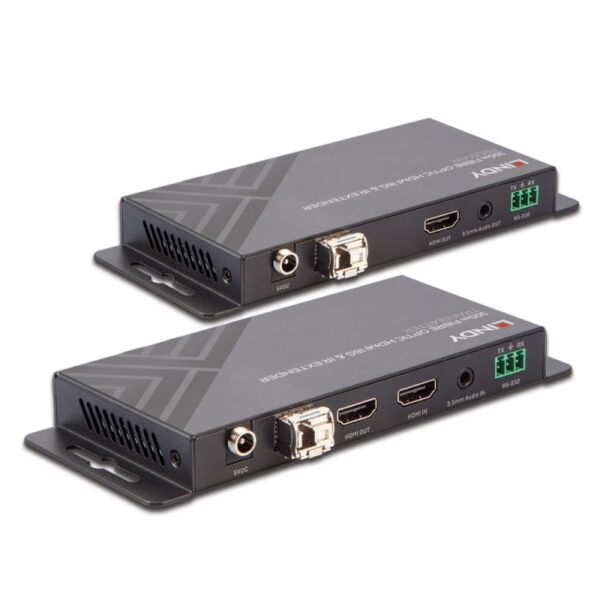

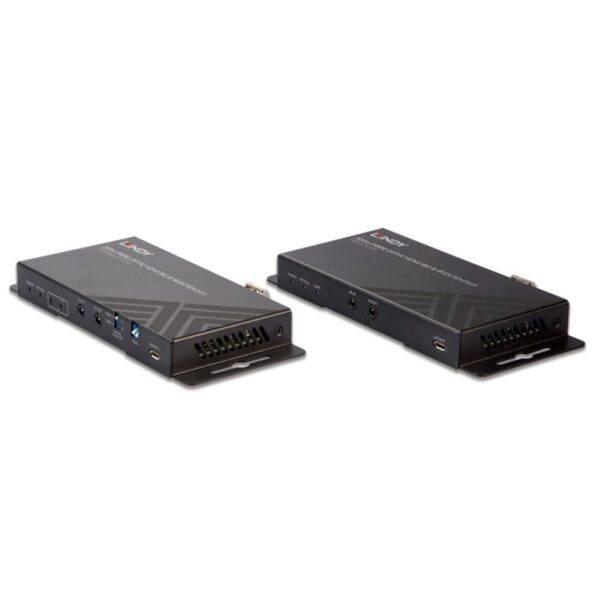

  The Lindy 300m/1000m Fibre Optic HDMI® & IR Extender is a high performance solution for extending 4K 60Hz Ultra HD transmissions over incredible distances, which are not possible with traditional copper based systems, using a single standard LC simplex fibre optic cable.

  Support for the HDMI® 2.0 specification allows for the transmission of highly detailed 4K Ultra HD resolutions, using smart methods of compression, which decompresses the signal at the receiver for a visually lossless picture. Also providing support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for creating eye-catching digital signage in retail, impressive residential installations or taking sports venue distribution to new immersive levels. HDCP 2.2 compatibility also means that protected 4K content including movies and TV shows can be viewed without issue.

  As opposed to the use of copper based extension systems, the use of fibre optic cable also ensures immunity to RF and EMI, providing a stable signal in ‘noisy’ retail or industrial environments which can have a high interference from electronics.

  With the ability to extend signals up to 1000m the extender provides huge installation flexibility, the transmitter can be easily connected to a variety of HDMI® source devices such as Blu-Ray players, 4K HDR media players or PC’s in a convenient location, while the receiver can be placed in a suitable viewing area along with a 4K display or projector. The included mounting brackets also allow for a neat installation under desks or discreetly hidden behind displays.

  Featuring bi-directional IR and RS-232 ports, the extender provides the capability for source equipment to be seamlessly controlled from the display side, and the display can also be controlled from the HDMI source device, great for providing simple, flexible control over the installation for the user. The support for RS-232 enables the extension of control signals as part of a larger installation.

• Category	Specification
  AV Interface	HDMI®
  Interface Standard	HDMI® 2.0
  Supported Bandwidth	18Gbps
  Maximum Distance	300m (Multimode), 1000m (Singlemode)
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	Pass-through
  EDID Pass Through	Pass-through
  Supported Audio	Pass-through
  Separate Audio Ports	3.5mm
  IR Support	20KHz – 60KHz
  CEC Support	–
  Serial Interface	RS-232 (Bi-directional)
  Transmission Medium	1 x Simplex LC
  Laser Class	1
  Wavelength	1310 and 1550nm (with supplied SFP+ module)
  Chipset	SD1503/SD1513
  Special Features	Auto Laser Disabling Function
  Connectors
  Transmitter Input	HDMI® Type A (Female), 3.5mm Audio (Female)
  Transmitter Output	Simplex LC, HDMI® Type A (Female)
  Receiver Input	Simplex LC
  Receiver Output	HDMI® Type A (Female), 3.5mm Audio (Female)
  Bidirectional Ports	RS232 (Terminal Blocks), IR (Female)
  Power	5.5/2.5mm DC Socket
  Physical Properties
  Dimensions (WxDxH)	100x65x25.6mm
  Housing Material	Metal
  Net Weight	0.516kg (1.14lb)
  Operating Temperature	0°C – 40°C (32°F – 104°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	20 – 90% RH (non-condensing)
  Power Requirements	5VDC 1A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton box
  Packaging Dimensions	250x55x185mm (9.84×2.17×7.28in)
  Gross Weight	0.918kg (2.02lb)
  Warranty (Years)	2
  Certifications	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
  Package Contents
  Contents	Transmitter unit, Receiver unit, Power Supplies, Fiber Modules, IR Cables, Manual
  Purchasing Information
  No.	38174
  EAN	4002888381741
