Lindy 3 Port DisplayPort 1.2 MST Hub | 38429

• Description
• Specifications

• Lindy 3 Port DisplayPort 1.2 MST Hub | 38429

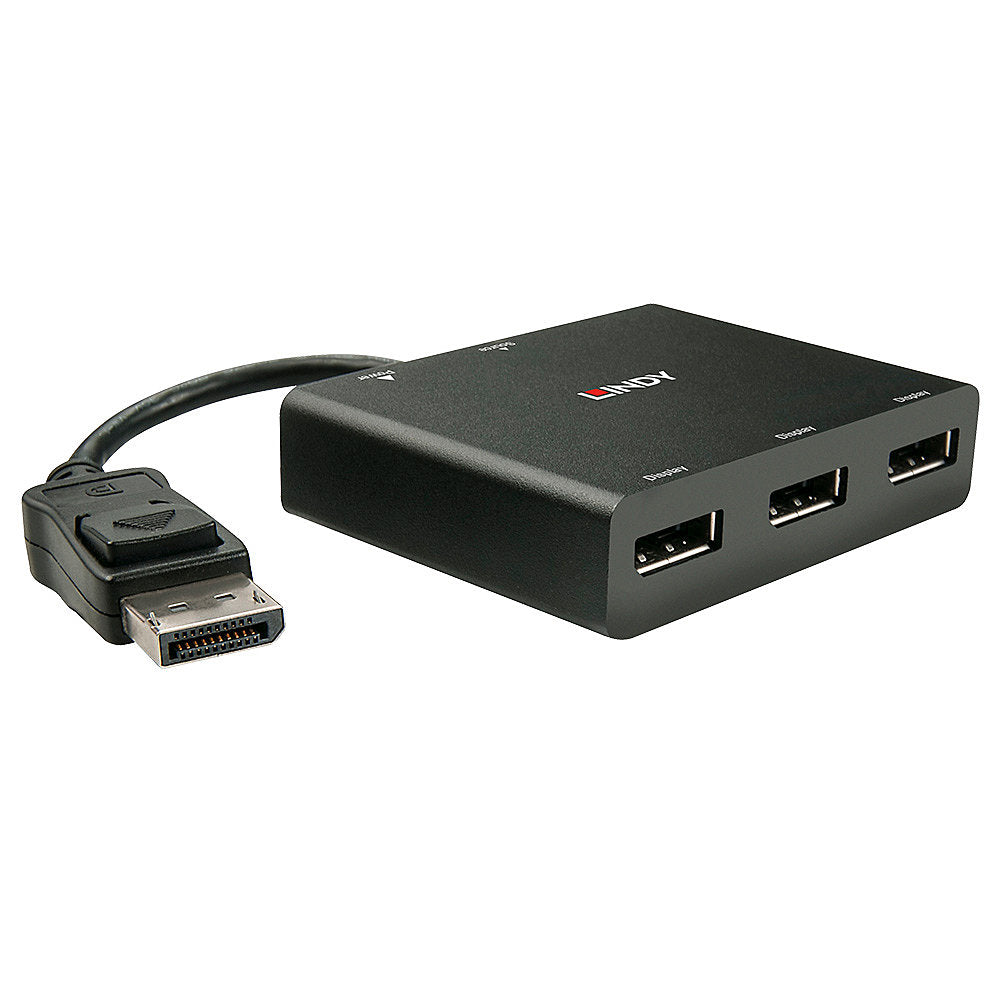

  The Lindy 3 Port DP MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 3 DisplayPort monitors.  MST hubs allow for the connection of a single DP source device including computers, laptops or notebooks to 3 separate DP displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.

  With support up to 3840×2160@60Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.

  This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals

  Please note: This hub is not compatible with Apple products

• Category	Specification
  AV Interface	DisplayPort
  Interface Standard	DP 1.2
  Supported Bandwidth	21Gbps
  Maximum Resolution	3840×2160 @ 60Hz 4:4:4 8bit
  HDCP Support	HDCP 1.3
  Supported Audio	Up to 7.1CH
  Separate Audio Ports	–
  CEC Support	–
  Serial Interface	–
  Special Features	–
  Input	DisplayPort (Male)
  Output	3 x DisplayPort (Female)
  Control	–

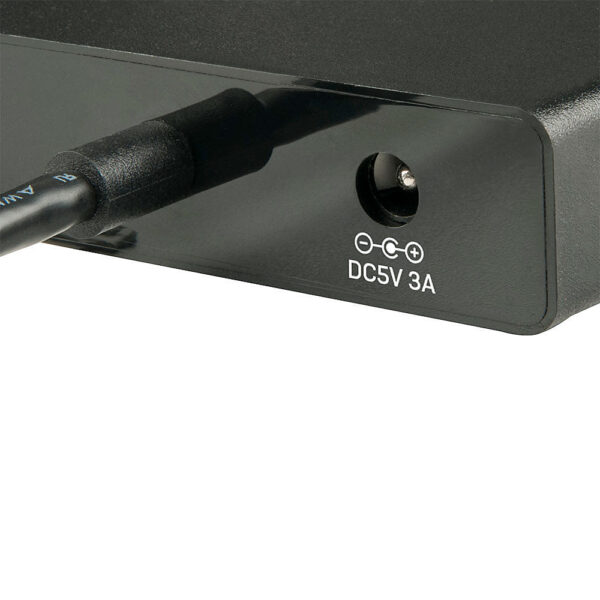

  Power Connector	5.5/2.5mm
  Dimensions	78x60x18mm (3.07×2.36×0.71in)
  Housing Material	Metal
  Net Weight	0.095kg (0.21lb)
  Operating Temperature	0°C – 45°C (32°F – 113°F)
  Storage Temperature	-20°C – 70°C (-4°F – 158°F)
  Humidity	80 – 90% RH (non-condensing)
  Power Requirements	5VDC 3A
  Colour	Black
  Packaging Type	Carton Box
  Packaging Dimensions	240x145x60mm (9.45×5.71×2.36in)
  Gross Weight	0.418kg (0.92lb)
  Warranty	2 years
  Certifications	CE, FCC, RoHS, UL & REACH
  Package Contents	DisplayPort MST Hub, Multi-country PSU (UK, EU, US & AUS), Lindy Manual
  Item Number	38429
  EAN	4002888384292
