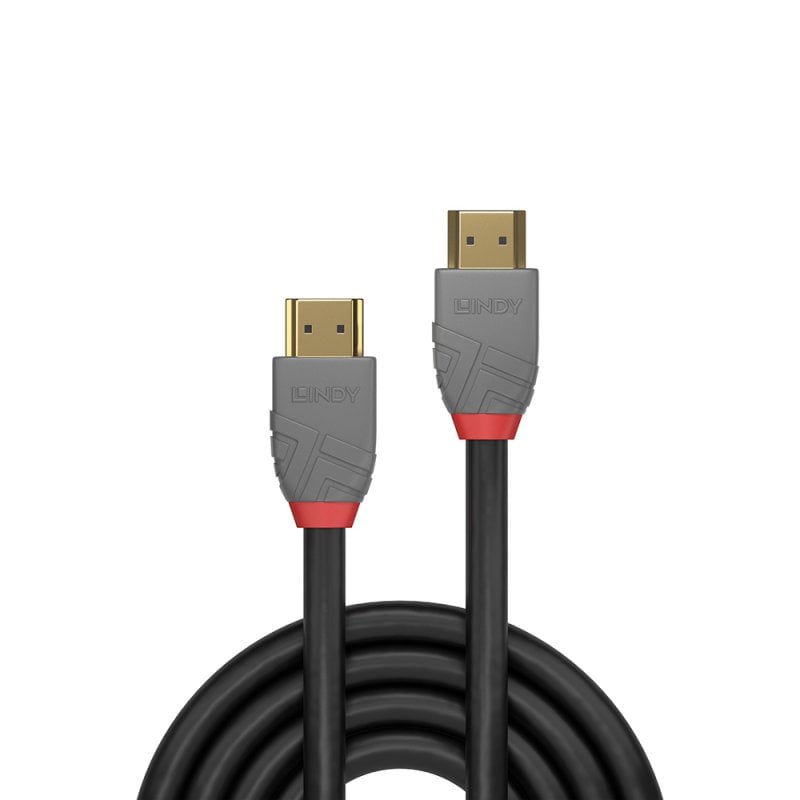

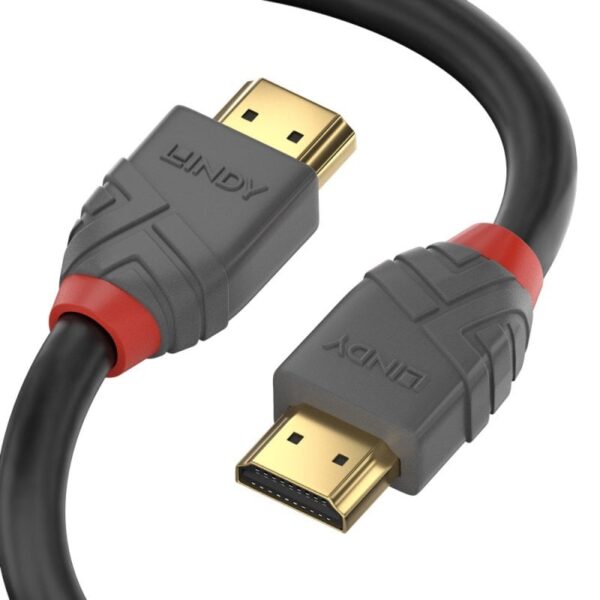

Lindy 2m High Speed HDMI Cable, Anthra Line | 36963
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

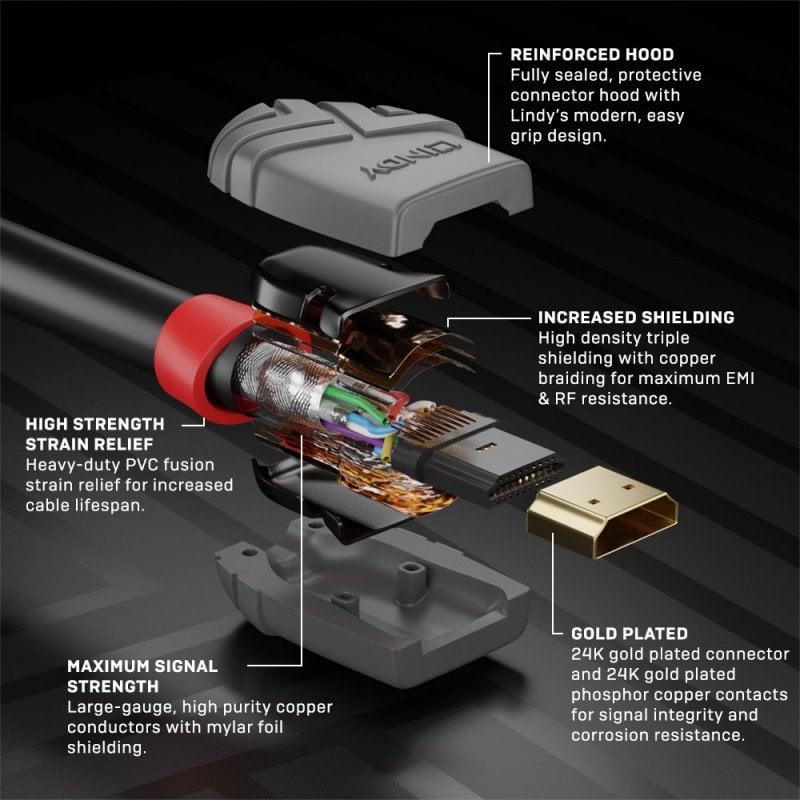

Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m.
-
Category Details Connectors Connector A HDMI Type A Male Connector B HDMI Type A Male Housing Material PVC Connector Plating 24K Gold 15µm Pin Construction Phosphor Copper Pin Plating 24K Gold 3µm Dimensions (WxDxH) 20×34.2×10.9mm (0.79×1.35×0.43in) Cable Construction Length 2m (6.56ft) Standard High Speed HDMI with Ethernet Colour Black Type Round Jacket Diameter 6mm (0.24in) Jacket Material PVC Conductor Material Copper Conductor Gauge 30AWG Shielding Copper Braid, 65% Specifications Supported Bandwidth 18Gbps Maximum Resolution 4096×2160@60Hz 4:4:4 8bit Nominal Attenuation 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB Minimum Bend Radius 48mm (1.89in) Operating Temperature -10°C to 80°C (14°F to 176°F) Storage Temperature -10°C to 80°C (14°F to 176°F) ATC Approved Yes Miscellaneous Packaging Type Polybag Warranty (Years) 10 Certifications RoHS, REACH, UL, ATC Purchasing Information Product Number 36963 EAN 4002888369633 -
