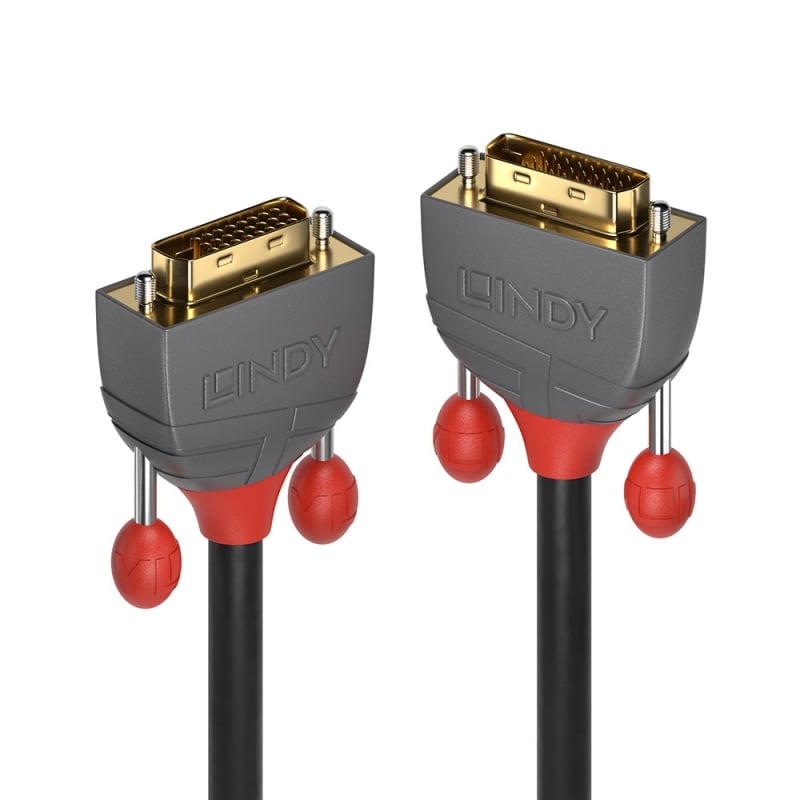

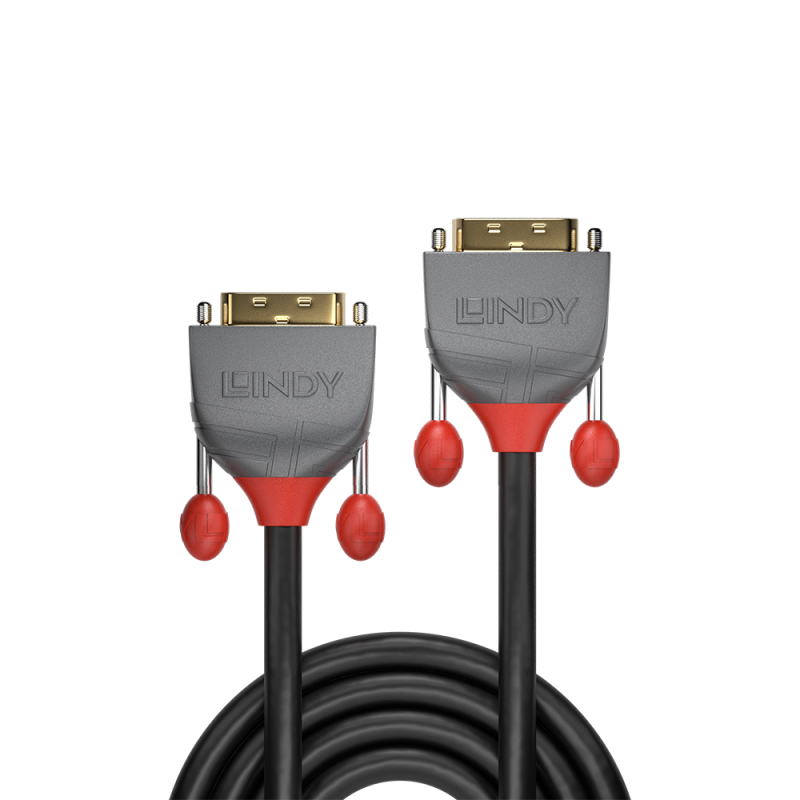

Lindy 2m DVI-D Dual Link Cable, Anthra Line | 36222

• Description
• Specifications
• Downloads

• Lindy 2m DVI-D Dual Link Cable, Anthra Line | 36222

  From the Lines cable connectivity concept developed by Lindy, Anthra Line DVI-D Dual Link cables are the professional choice for high resolution connections in commercial AV and IT installations.

  Anthra Line DVI-D Dual Link are premium cables that feature triple shielded construction with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

  The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.

  Anthra Line DVI-D Dual Link cables support resolutions up to 2560×1600@60Hz including HDTV resolutions up to 1080p.

  Anthra Line DVI-D Dual Link cables are available in lengths of 0.5m to 20m.

• Category	Details
  Connectors	– Connector A: DVI-D Male (Dual Link)
  	– Connector B: DVI-D Male (Dual Link)
  	– Housing Material: PVC
  	– Connector Plating: 24K Gold 1µm
  	– Pin Construction: Brass
  	– Pin Plating: 24K Gold 1µm
  	– Dimensions: 39.5×16.5×44.5mm (1.56×0.65×1.75in)
  Cable Construction	– Length: 2m (6.56ft)
  	– Standard: DVI-D Dual Link
  	– Colour: Black
  	– Type: Round
  	– Jacket Diameter: 8.6mm (0.34in)
  	– Jacket Material: PVC
  	– Conductor Material: Tinned Copper
  	– Conductor Gauge: 28AWG
  	– Shielding: Copper Braid 85%
  Specifications	– Supported Bandwidth: 9.9 Gbps
  	– Maximum Resolution: 2560×1600@60Hz
  	– Nominal Attenuation: 1 – 825Mhz < 8db
  	– Minimum Bend Radius: 86mm (3.39in)
  	– Operating Temperature: -20°C – 80°C (-4°F – 176°F)
  	– Storage Temperature: -25°C – 85°C (-13°F – 185°F)
  Miscellaneous	– Packaging Type: Polybag
  	– Warranty (Years): 10
  	– Certifications: RoHS, REACH, UL
  Purchasing Info	– Product No.: 36222
  	– EAN: 4002888362221
  	– Available Lengths: 0.5m to 20m (1.64ft to 65.62ft)
