Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch | 42320

• Description
• Specifications
• Downloads

• Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch | 42320

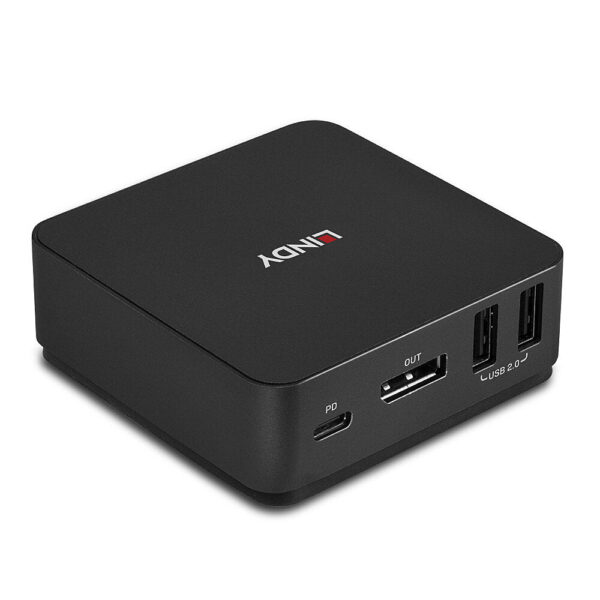

  The Lindy 2 Port Type C, DisplayPort 1.2 KVM Switch is a compact solution for providing access and control over two Type C equipped devices with from a single keyboard, mouse, and display. It_s an Ideal solution for flexible, plug and play workstations, allowing users to control multiple Laptops, or a single Laptop and another Type C device such as a mobile phone or tablets using Type C with DisplayPort Alt Mode.

  Support for resolutions up to 4K Ultra HD 60Hz ensures optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. A combined 3.5mm audio port allows users to connect a headset, microphone or speakers to add immersive 2-channel audio, while additional USB peripherals can be connected via the 2 ports USB 2.0.


  Connecting an additional Type C power supply (optional, not included) ensures host devices can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.

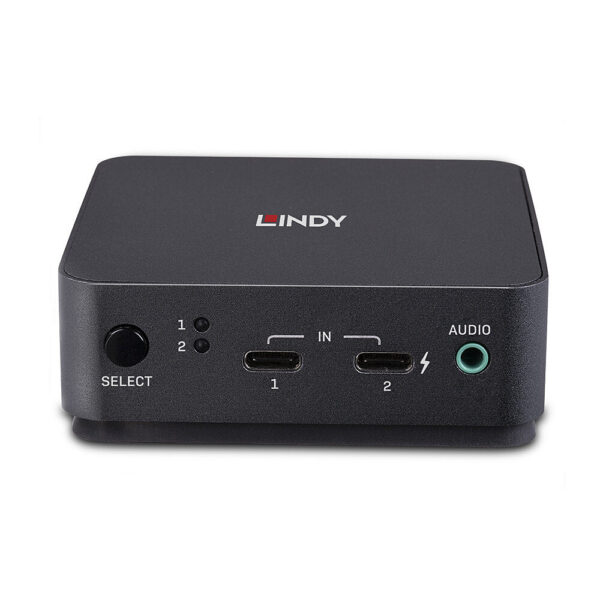

  This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.

  Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported.

• Category	Details
  Specifications
  AV Interface	USB Type C, DisplayPort
  Console Interfaces	USB
  Interface Standard	DisplayPort 1.2, USB 3.2 Gen 2, USB 2.0
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	1.3
  Supported Audio	Analogue Stereo
  Separate Audio Ports	3.5mm (Female)
  Serial Interface	–
  Console Number	1
  Max Number PC/Server	2
  Cascadable	–
  Switching Method	Push Button & Autoswitching
  19″ Rack Mountable	–
  Special Features	Power Delivery 3.0 up to 100W on port 2, active LED indicators
  Connectors

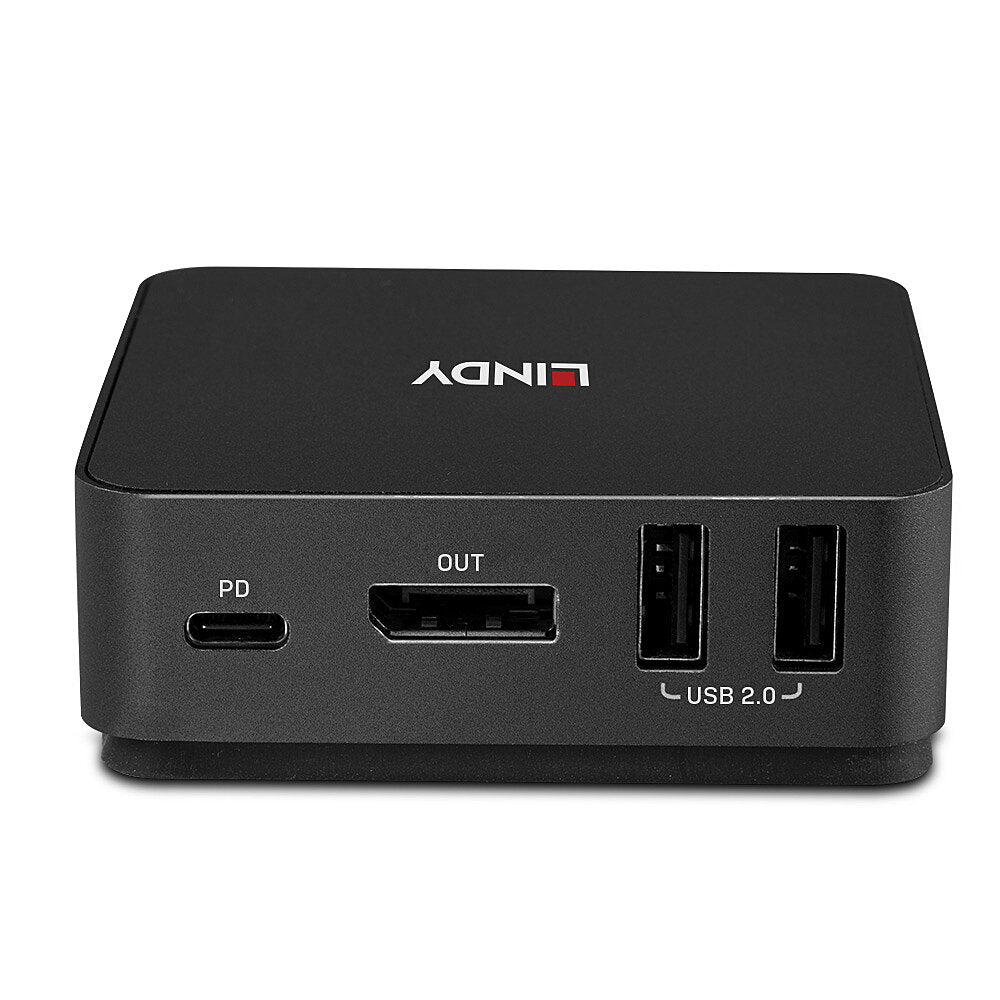

  Console Interfaces	DisplayPort (Female), 2 x USB Type A (Female), 3.5mm (Female)
  PC/Server Interfaces	2 x Type C (Female)
  Other Interfaces	–
  Power	Type C PD (Female) (optional)
  Physical Properties
  Dimensions WxDxH	78x78x26.8mm (3.07×3.07×1.06in)
  Housing Material	Metal
  Net Weight	0.21kg (0.46lb)
  Operating Temperature	5°C – 45°C (32°F – 104°F)
  Storage Temperature	-15°C – 60°C (-4°F – 140°F)
  Humidity	0 – 90% RH (non-condensing)
  Power Requirements	7.5V
  Colour	Dark grey
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	183x53x138mm (7.2×2.09×5.43in)
  Gross Weight	0.31kg (0.68lb)
  Warranty (Years)	2
  Certificated	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Content
  Included Items	Type C DP 1.2 KVM Switch 2 x Type C Cable, 0.5m Lindy Manual
  Purchasing Information
  No.	42320
  EAN	4002888423205
