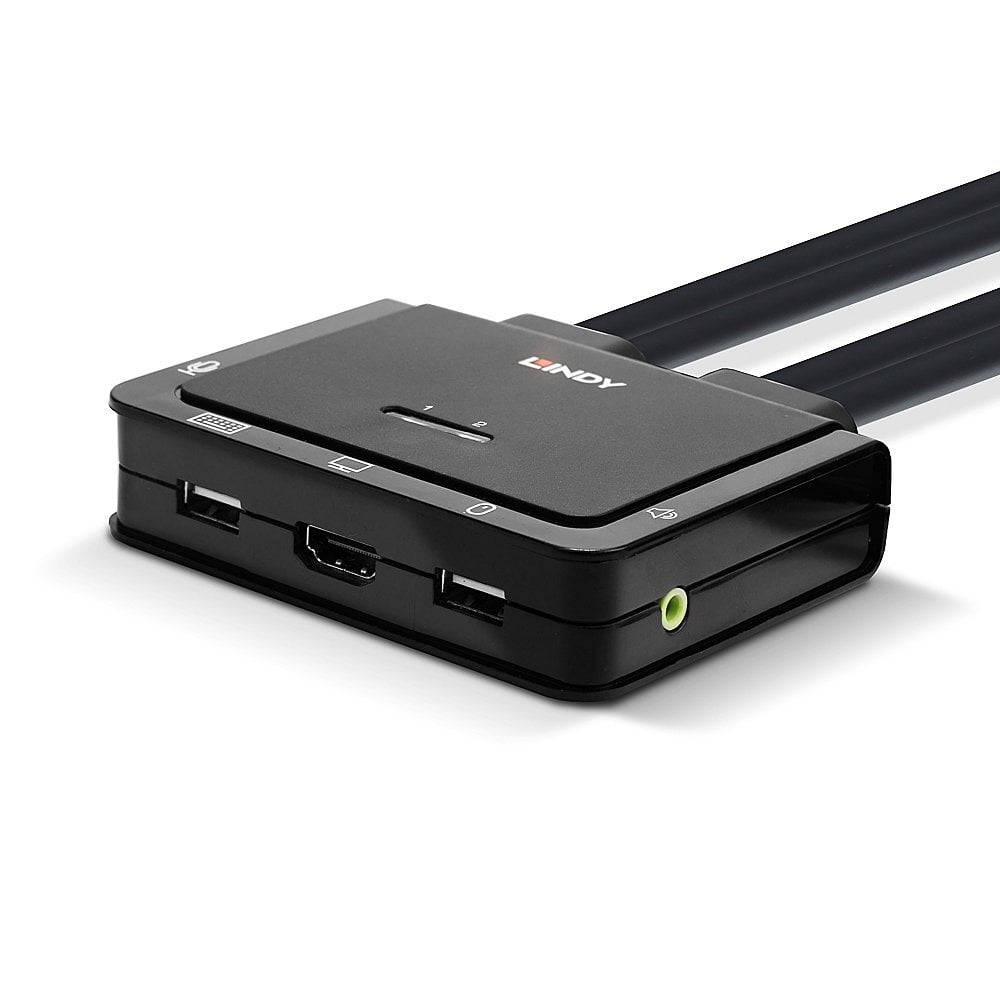

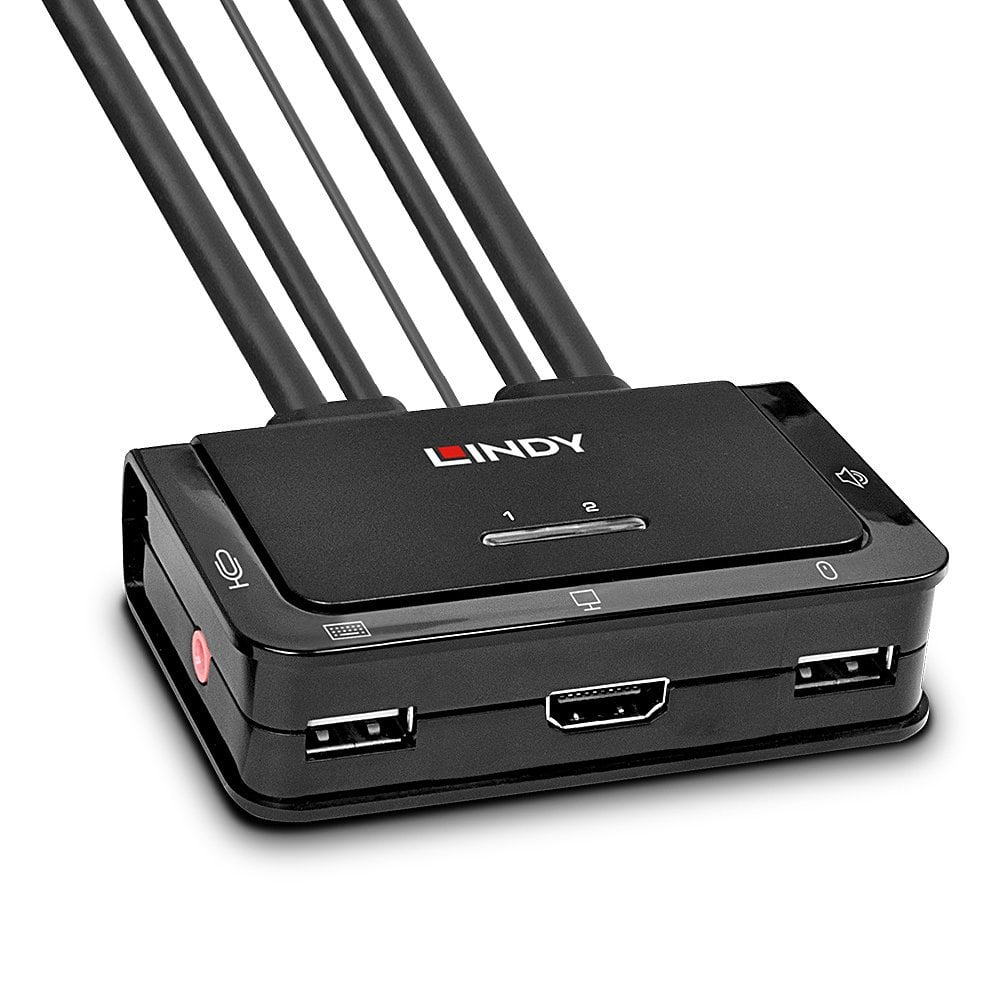

Lindy 2 Port HDMI 4K60, USB 2.0 & Audio Cable KVM Switch | 42345

• Description
• Specifications
• Downloads

• Lindy 2 Port HDMI 4K60, USB 2.0 & Audio Cable KVM Switch | 42345

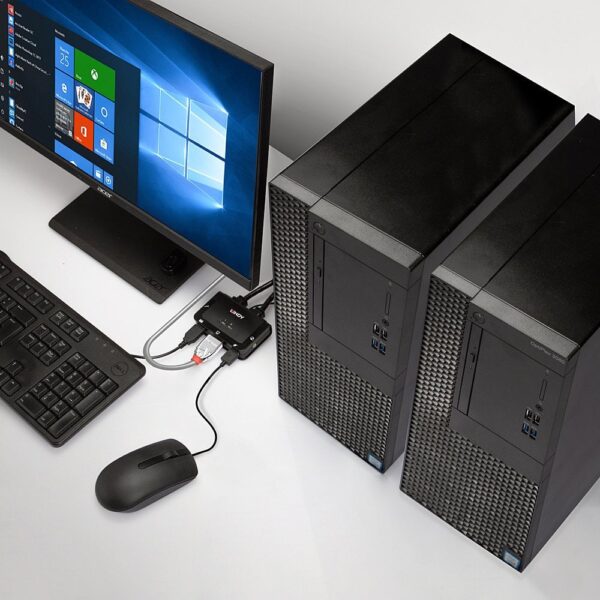

  Control two HDMI® equipped PCs from a single keyboard, mouse and monitor
  Switch via the unit’s push button control, software or keyboard hot keys
  Supports HDMI® 2.0 signals, up to 4K 60Hz

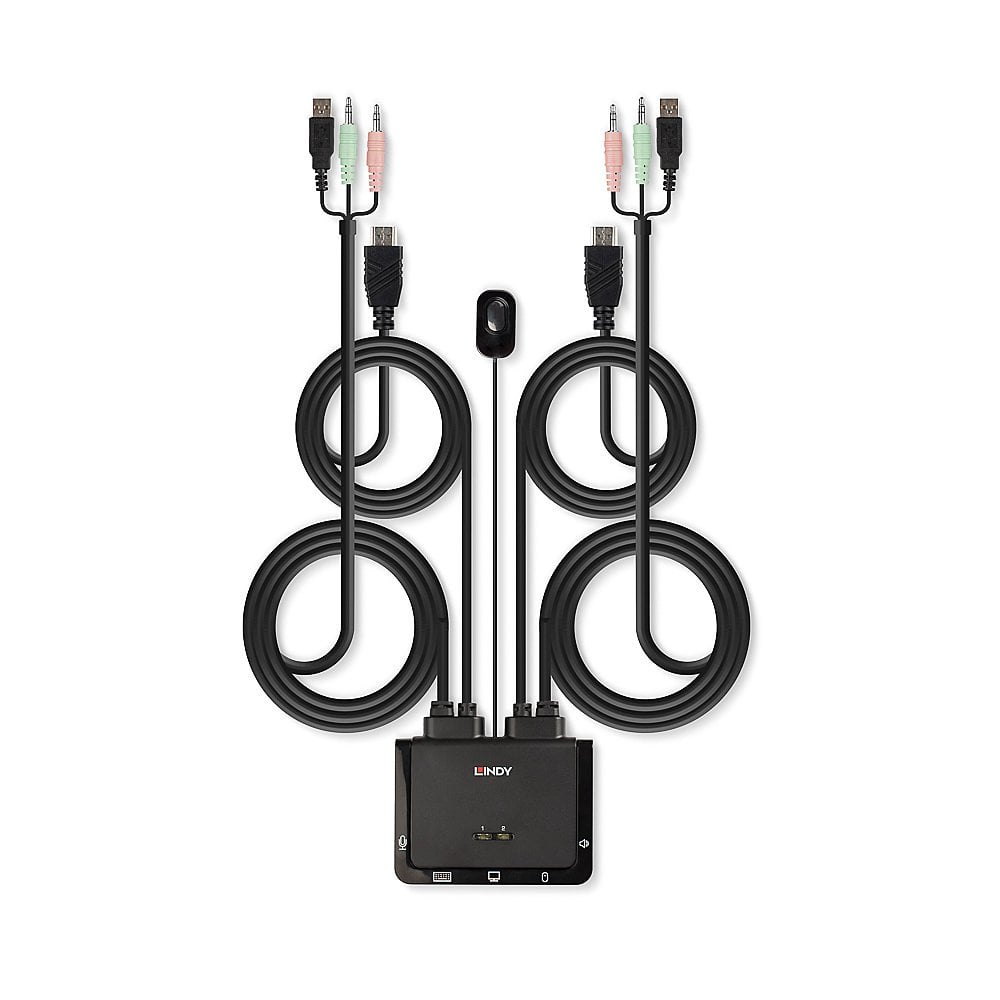

  Integrated cables for quick, hassle-free installation
  2 Year Warranty

  The Lindy 2 Port HDMI® 2.0, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two HDMI® equipped PCs from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need for purchasing additional cables and saving time on the installation.

  Support for resolutions up to 4K Ultra HD 60Hz ensures the optimum image quality, perfect for high graphical content in gaming setups, video editing or dual system control workstations. The audio output port on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

  The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first time users.

• Category	Details
  Specifications
  AV Interface	HDMI®
  Console Interfaces	USB
  Interface Standard	HDMI® 2.0, USB 2.0
  Maximum Resolution	4096×2160@60Hz 4:4:4 8bit
  HDCP Support	HDCP 2.2
  Supported Audio	Analogue Stereo
  Separate Audio Ports	2 x 3.5mm (Female)
  Serial Interface	–
  Console Number	1
  Max Number PC/Server	2
  Cascadable	–
  Switching Method	Push Button, Hotkey Switching & Software
  19″ Rack Mountable	–
  Special Features	Supports USB 2.0 Hubs And Device Sharing, Active LED Indicators
  Connectors
  Console Interfaces	HDMI® Type A (Female), 2 x USB 2.0 Type A (Female), 2 x 3.5mm (Female)
  PC/Server Interfaces	2 x HDMI® (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) 1.2m Integrated Cables
  Other Interfaces	–
  Power	–
  Physical Properties
  Dimensions WxDxH	97x25x82.18mm (3.82×0.98×3.24in)
  Housing Material	Plastic
  Net Weight	0.436kg (0.96lb)
  Operating Temperature	0°C – 40°C (32°F – 104°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	0 – 90% RH (non-condensing)
  Power Requirements	5V
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	160x60x250mm (6.3×2.36×9.84in)
  Gross Weight	0.517kg (1.14lb)
  Warranty (Years)	2
  Certified	CE, UKCA, FCC, RoHS, REACH & California Proposition 66
  Package Contents
  Included Items	HDMI® KVM Switch Lindy Manual
  Purchasing Information
  No.	42345
  EAN	4002888423458

• Description	Downloads
  Datasheet	Downloads
