Lindy 2 Port HDMI 4K30, USB 2.0 & Audio Cable KVM Switch | 42340

• Description
• Specifications
• Downloads

• Lindy 2 Port HDMI 4K30, USB 2.0 & Audio Cable KVM Switch | 42340

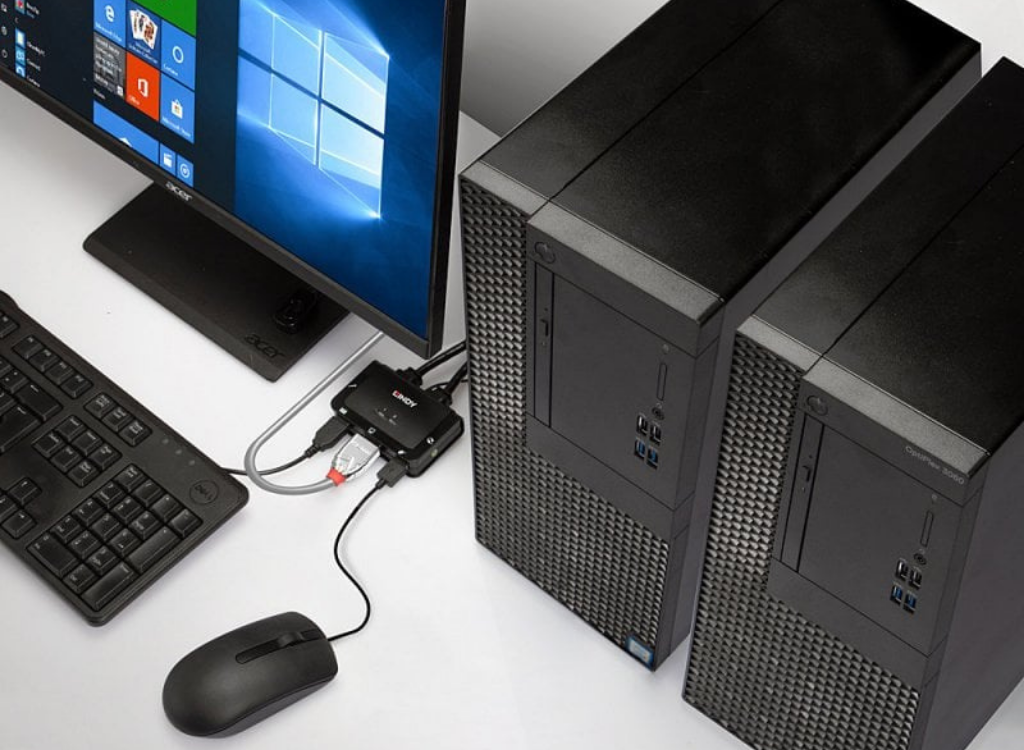

  A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

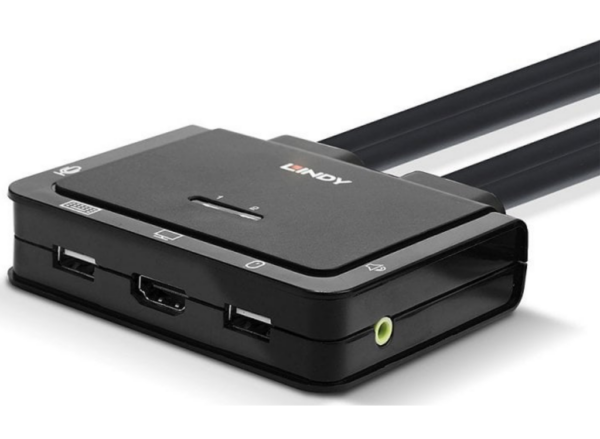

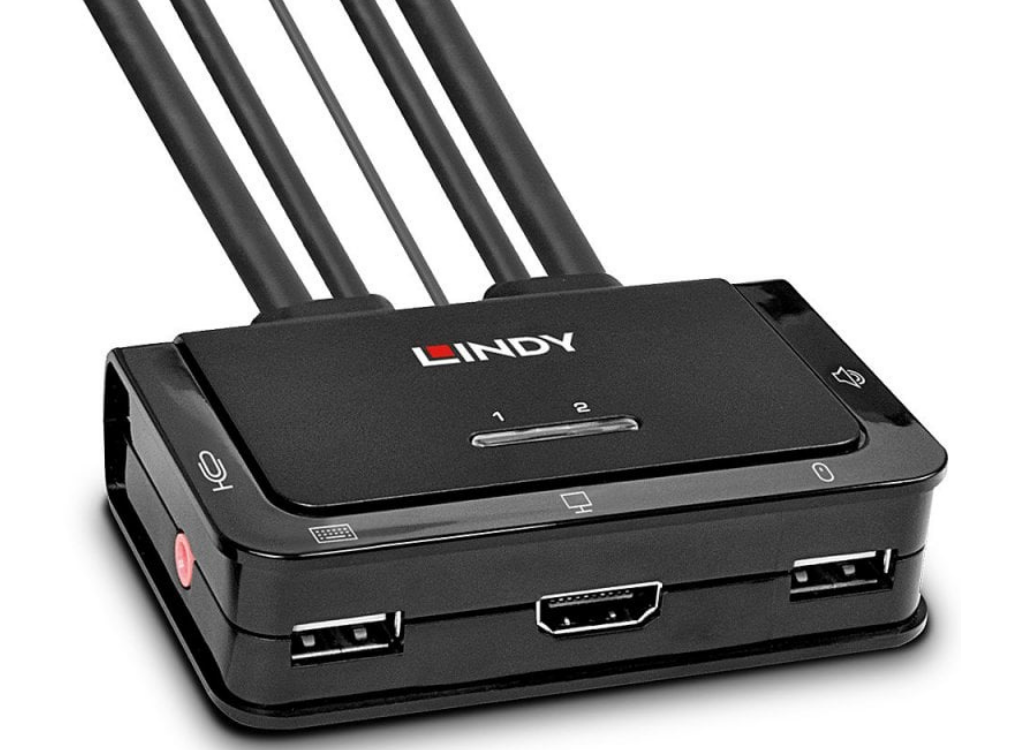

  The Lindy 2 Port HDMI® 10.2G, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two HDMI® equipped PCs from a single keyboard, mouse and monitor set. With integrated cables, this switch can be easily connected directly to the system, with no need to purchase additional cables, saving time and money on installation.

  Support for resolutions up to 4096×2160@60Hz 4:2:0 8bit, perfect also for graphical content in gaming setups, home working or dual system control workstations. The audio output port also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

  The KVM switch features multiple switching options including push buttons on the unit alongside hotkey and software switching to provide simple, reliable control for the user, great for both professional and first time users.

• Category	Specification
  AV Interface	HDMI®
  Console Interfaces	USB
  Interface Standard	HDMI® 1.4, USB 2.0
  Maximum Resolution	4096×2160@60Hz 4:2:0 8bit
  HDCP Support	HDCP 2.2
  Supported Audio	Analogue Stereo
  Separate Audio Ports	2 x 3.5mm (Female)
  Serial Interface	–
  Console Number	1
  Max Number PC/Server	2
  Cascadable	–
  Switching Method	Push Button, Hotkey Switching & Software
  19″ Rack Mountable	–
  Special Features	Active LED Indicators
  Console Interfaces	HDMI® Type A (Female), 2 x USB 2.0 Type A (Female), 2 x 3.5mm (Female)
  PC/Server Interfaces	2 x HDMI® (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) 1.2m Integrated Cables
  Other Interfaces	–
  Power	–
  Dimensions	87x25x58.78mm (3.43×0.98×2.31in), cables length 0.9m (2.95ft)
  Housing Material	Plastic
  Net Weight	0.46kg (1.01lb)
  Operating Temperature	0°C – 40°C (32°F – 104°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	0 – 90% RH (non-condensing)
  Power Requirements	Via USB
  Colour	Black
  Packaging Type	Carton Box
  Packaging Dimensions	160x60x210mm (6.3×2.36×8.27in)
  Gross Weight	0.6kg (1.32lb)
  Warranty (Years)	2
  Certifications	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents	HDMI® KVM Switch, Lindy Manual
  Purchasing Information	No.: 42340, EAN: 4002888423403
