Lindy 2 Port HDMI 10.2G Splitter | 38158
- Description
- Specifications
- Downloads
-

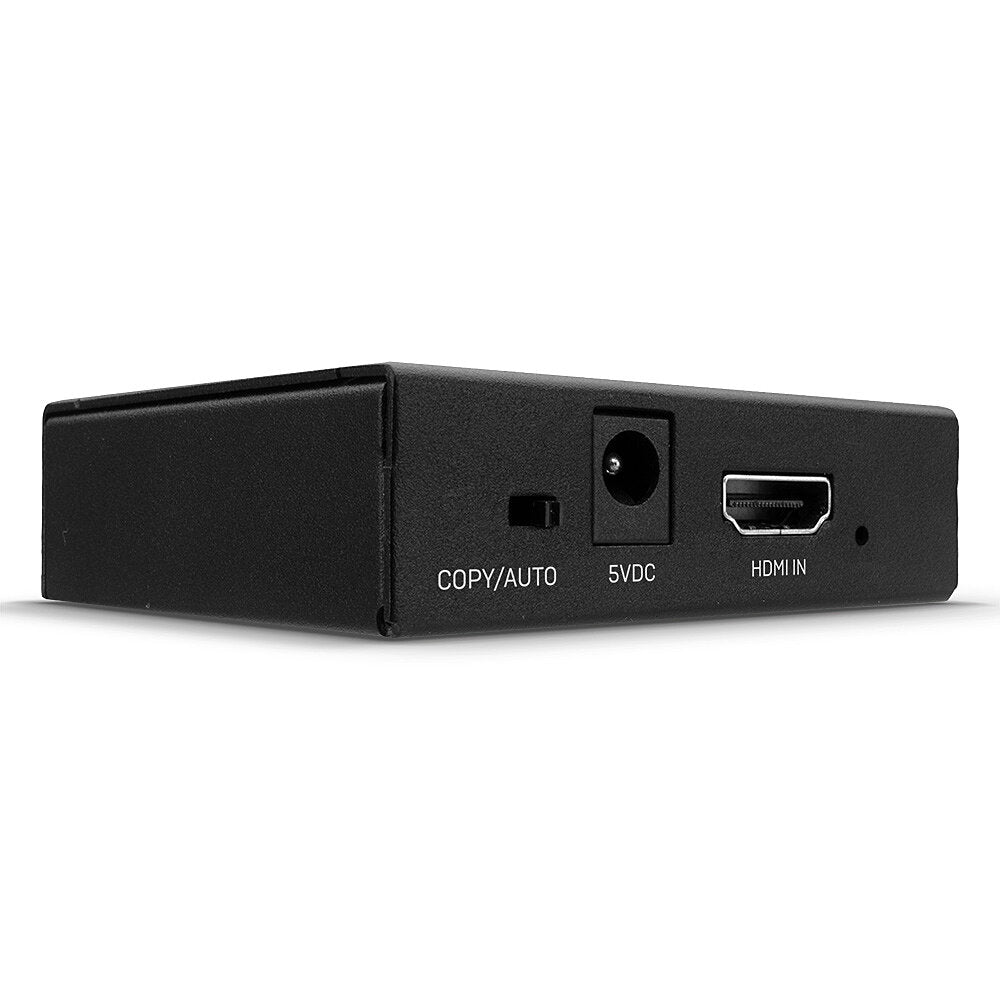

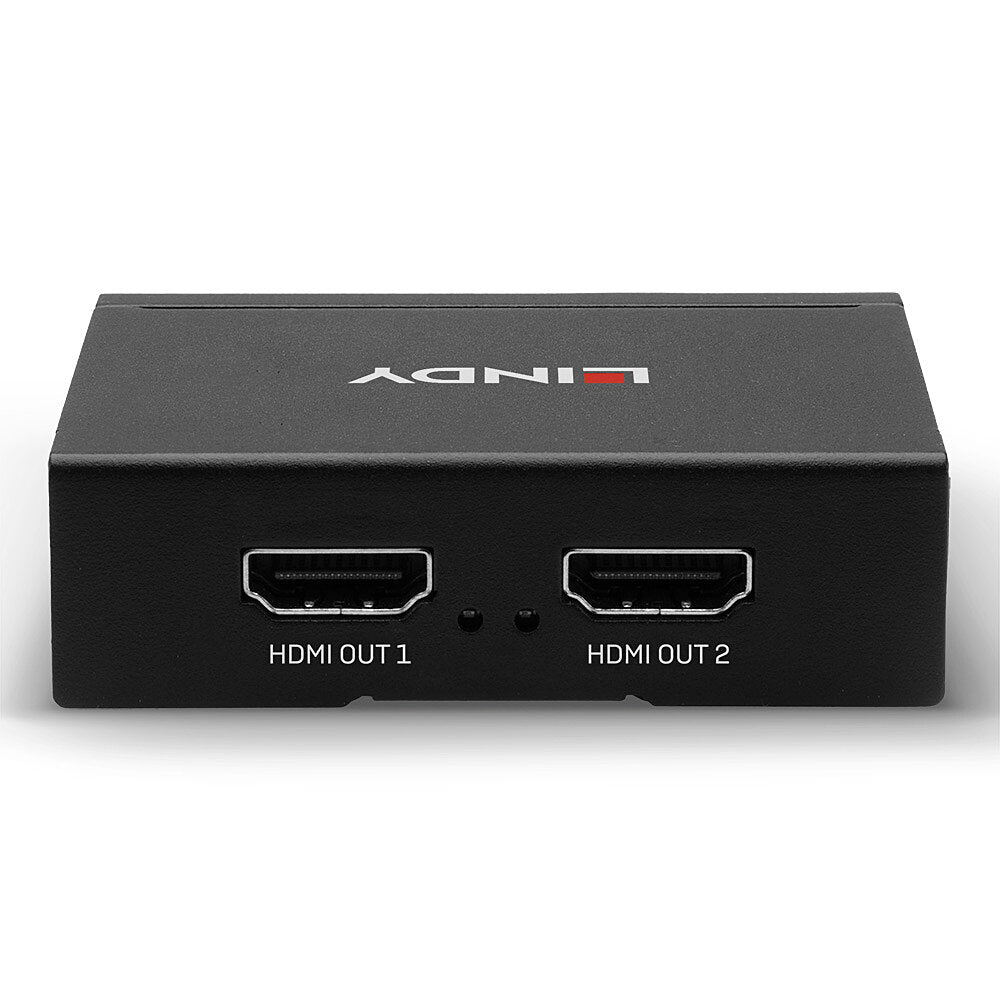

Lindy 2 Port HDMI 10.2G Splitter
Connect and split a single HDMI source across 2 4K displays
Supports resolutions up to 4K 60Hz 4:2:0
EDID Management for enhanced compatibility
Compact, minimalistic design
2 Year Warranty
The Lindy 2 Port HDMI 10.2G splitter is a low-cost, compact solution for distributing high quality 4K Ultra HD across two displays from a single source device. Supporting crystal clear 3840×2160@60Hz 4:2:0 resolutions, this splitter is ideal for retail or sports bar installations, or providing multi-screen playback in conference rooms. A simplistic EDID management system ensures hassle free installation, with optimum compatibility for a variety of displays, when connected to a wide range of source devices including media players, set-top boxes and games consoles.
The splitters minimalistic, compact housing provides a small footprint within the setup, with little distraction from the display.
-
Specifications AV Interface HDMI Interface Standard HDMI 1.4 Supports Bandwidth 10.2G Maximum Resolution 3840×2160@60Hz 4:2:0 8bit HDCP Support 1.4 Supported Audio Pass-through Separate Audio Ports – CEC Support – Serial Interface – Special Features – Connectors Input HDMI Type A (Female) Output 2 x HDMI Type A (Female) Control – Power 5.5/2.1mm Physical Properties Dimensions (WxDxH) 70x60x20mm (2.76×2.36×0.79in) Housing Material Metal Net Weight 0.238kg (0.52lb) Operating Temperature 0°C – 40°C (32°F – 104°F) Storage Temperature -20°C – 60°C (-4°F – 140°F) Humidity 20 ~ 90% RH (Non-condensing) Power Requirements 5VDC 1A Colour Black Miscellaneous Packaging Type Carton Box Packaging Dimensions 120x100x67mm (4.72×3.94×2.64in) Gross Weight 0.303kg (0.67lb) Warranty (Years) 2 Certificated CE, FCC, RoHS & REACH Package Content HDMI Splitter Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No. 38158 EAN 4002888381581 -
Description Downloads User Manual Download
