• Lindy 2 Port DisplayPort 1.4, USB 3.0 & Audio KVM Switch | 39312

  A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

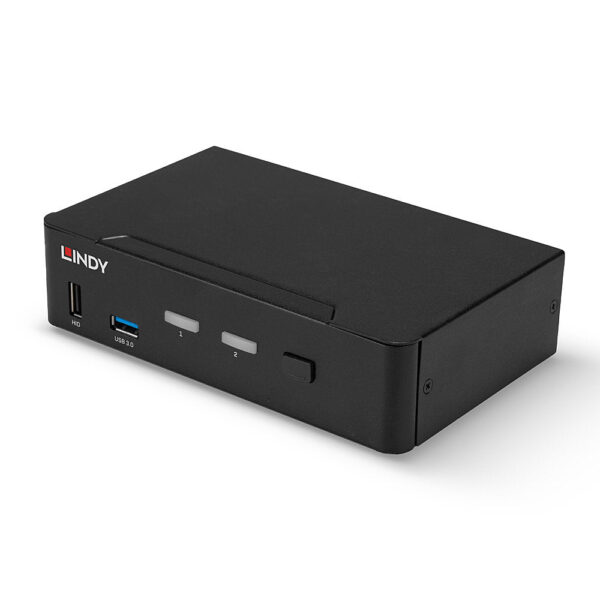

  The Lindy 2 Port DisplayPort 1.4, USB 3.0 & Audio KVM Switch is a compact solution for providing access and control over two DP equipped PCs from a single keyboard, mouse and monitor.

  Support for resolutions up to 8K Ultra HD 60Hz including 4K and full HD ensures the highest image quality and an exceptional viewing experience, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port on the front panel also allow users to connect headphones or speakers to add immersive 2CH audio, while additional USB peripherals can be integrated with the 2 ports USB 3.0. Both audio and USB 3,0 ports can be switched independently of the computers allowing users to print from one PC whilst working on another for example.

  It supports Auto Scan function also with different durations of the scan period, perfect for digital signage and advertising applications.

  The KVM switch features multiple switching options including push buttons on the unit and configurable hotkeys that provide simple, reliable control for the user, great for both professional and first time users.

  Please Note: connection cables are not included, we suggest to use DP cables up to 3m and USB 3.0 Type A/B cables up to 3m to reach the highest resolutions and best performances. MST hubs are not supported.

• Category	Details
  Specifications
  AV Interface	DisplayPort
  Console Interfaces	USB
  Interface Standard	DisplayPort 1.4, USB 3.0
  Maximum Resolution	7680×4320@60Hz 4:2:0 8Bit
  HDCP Support	2.2
  Supported Audio	Analogue Stereo
  Separate Audio Ports	3.5mm (Female)
  Serial Interface	–
  Console Number	1
  Max Number PC/Server	2
  Cascadable	–
  Switching Method	Push Button & Hotkey Switching
  19″ Rack Mountable	–
  Special Features	USB 3.0 Hub, Independent audio and Hub switching, Active LED Indicators
  Connectors

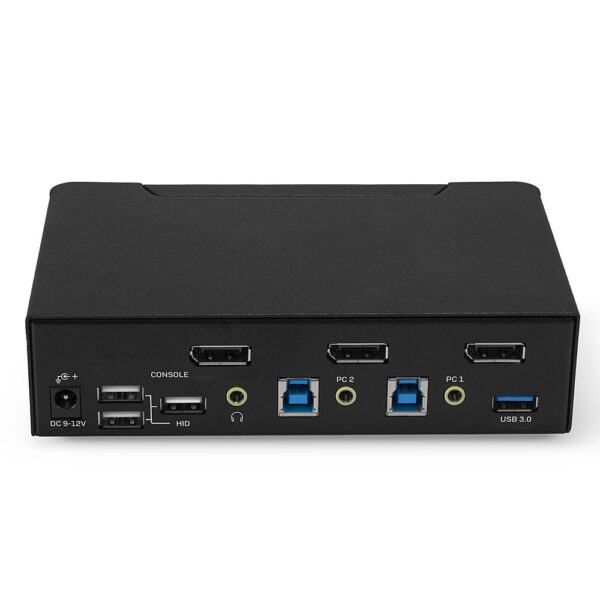

  Console Interfaces	DisplayPort (Female), 3 x USB HID Type A (Female), 2 x USB 3.0 Type A (Female), 3.5mm (Female)
  PC/Server Interfaces	2 x DisplayPort (Female), 2 x USB 3.0 Type B (Female), 2 x 3.5mm (Female)
  Other Interfaces	–
  Power	5.5/2.1mm DC socket
  Physical Properties
  Dimensions WxDxH	160x100x40mm (6.3×3.94×1.57in)
  Housing Material	Metal
  Net Weight	0.786kg (1.73lb)
  Operating Temperature	0°C – 40°C (32°F – 104°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	0 – 80% RH (non-condensing)
  Power Requirements	12VDC 1.5A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	240x185x90mm (9.45×7.28×3.54in)
  Gross Weight	1.048kg (2.31lb)
  Warranty (Years)	2
  Certificated	CE, FCC, RoHS, REACH & California Proposition 65
  Package Content	DP 1.4 KVM Switch, 4 x rubber feet, Multi-country PSU (UK, EU, US & AUS), Lindy Manual
  Purchasing Information
  No.	39312
  EAN	4002888393126
