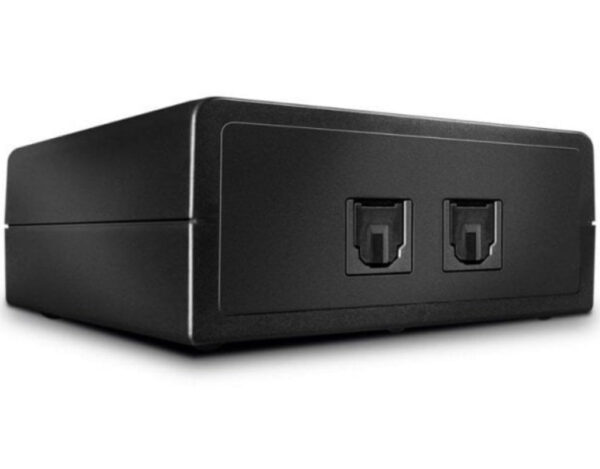

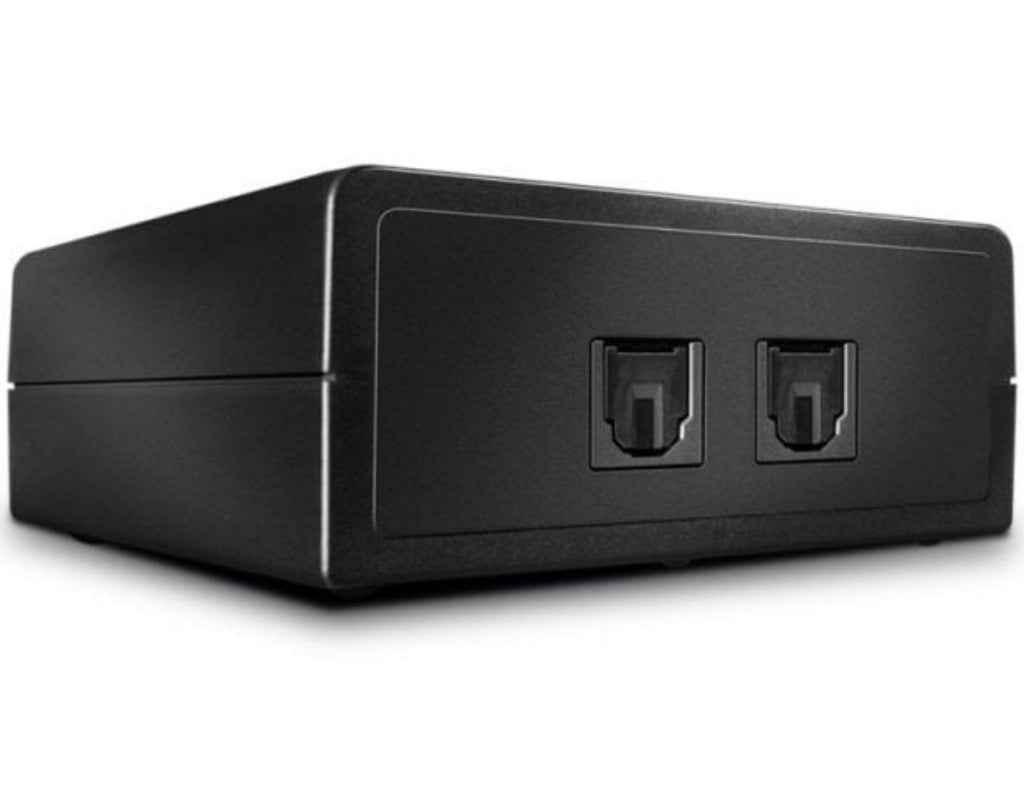

Lindy 2 Port Automatic Optical Audio Switch
Connects two digital optical Toslink sources to a single optical Toslink input
Automatic or manual switch function
Input ports: 2 x Toslink (Optical Fibre)
Output Ports: 1 x Toslink (Optical Fibre)
2 year warranty
The Lindy 2 Port Automatic Optical Audio Switch allows users to connect two digital optical Toslink sources to a single optical TosLink (SPDIF) input on an AV amplifier, Hi-Fi or home cinema system.
The optical switch will automatically detect the live signal and switch to this channel.
Ideal for use with games consoles, HD players, set top boxes, PC’s etc. and saves on wear and tear of constant plugging and unplugging of cables. -
Specifications Details AV Interface TosLink Interface Standard – Supports Bandwidth 32 – 96kHz Maximum Resolution – HDCP Support – Supported Audio S/PDIF, 2-Channel LPCM, Uncompressed PCM / LPCM, Dolby AC-3, Dolby 5.1, Dolby Digital, DTS Separate Audio Ports – IR Support – CEC Support – Serial Interface – Special Features Automatic switching of active ports Connectors – Input 2 x TosLink (Optical Fibre) Connectors – Output 1 x TosLink (Optical Fibre) Connectors – Control – Connectors – Power 5.5/2.1mm DC socket Dimensions (WxDxH) 75x65x30mm (2.95×2.56×1.18in) Housing Material Plastic Net Weight 0.055kg (0.12lb) Operating Temperature 0°C – 50°C (32°F – 122°F) Storage Temperature -20°C – 70°C (-4°F – 158°F) Humidity 20 – 80% RH (non-condensing) Power Requirements 5VDC 1.2A Color Black Packaging Type Carton Box Packaging Dimensions 155x120x60mm (6.1×4.72×2.36in) Gross Weight 0.273kg (0.6lb) Warranty (Years) 2 Certified CE, UKCA, FCC, RoHS & REACH Package Contents 2 Port Automatic Optical Audio Switch, USB A to DC Cable (Barrel Size: 5.5/2.1mm), Lindy Manual Purchasing Information – No. 70436 Purchasing Information – EAN 4002888704366 -
Description Downloads Lindy 2 Port Automatic Optical Audio Switch | 70436 User Manual Downloads
