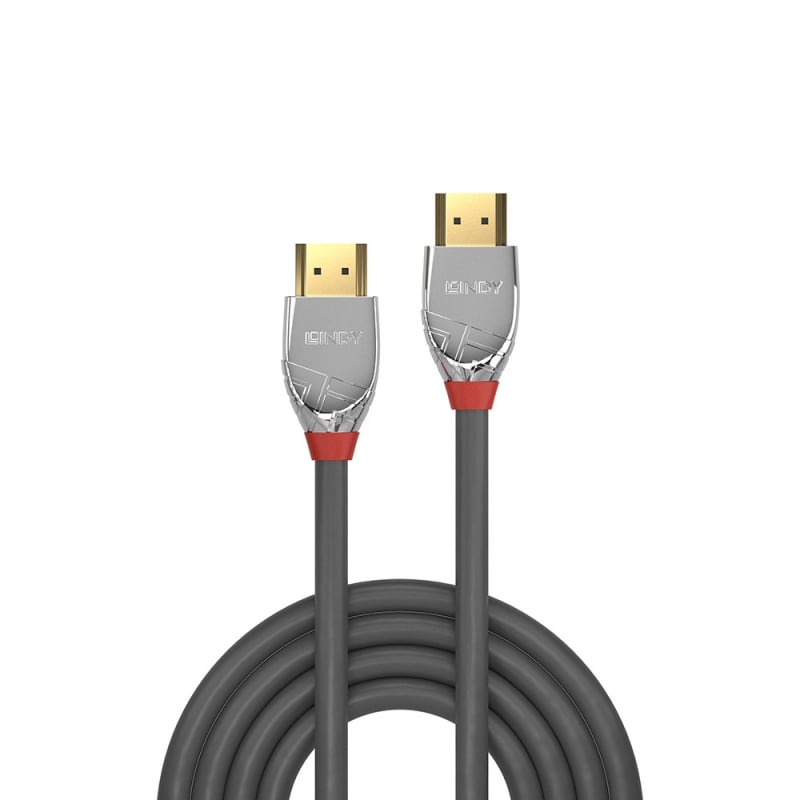

• Lindy 1m High Speed HDMI Cable, Cromo Line | 37871

  From the Lines cable connectivity concept developed by Lindy, Cromo Line High Speed HDMI cables are high performance, designer connections that combine premium construction materials with striking connector architecture.

  Cromo Line High Speed HDMI cables feature triple shielded construction with 30AWG tinned copper conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

  UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Cromo Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

  Cromo Line cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.



  The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m. Any cables below 5m are classified as high speed, any lengths above 5m are standard cables.



  Cromo Line HDMI cables are available in lengths from 0.3m to 10m.

• Category	Details
  Connectors
  Connector A	HDMI Type A Male
  Connector B	HDMI Type A Male
  Housing Material	Chrome Plated ABS Plastic
  Connector Plating	24K Gold 3µm
  Pin Construction	Phosphor Copper
  Pin Plating	24K Gold 15µm
  Dimensions (WxDxH)	20×34.1×11.8mm (0.79×1.34×0.47in)
  Cable Construction
  Length	1m (3.28ft)
  Standard	High Speed HDMI with Ethernet
  Colour	Grey
  Type	Round
  Jacket Diameter	6mm (0.24in)
  Jacket Material	PVC
  Conductor Material	Tin plated copper
  Conductor Gauge	30AWG
  Shielding	Copper Braid, 85%
  Specifications
  Supported Bandwidth	18 Gbps
  Maximum Resolution	4096×2160@60Hz 4:4:4 8bit
  Nominal Attenuation	<20dB (300kHz-5.1GHz range)
  Minimum Bend Radius	60mm (2.36in)
  Operating Temperature	-10°C – 80°C (14°F – 176°F)
  Storage Temperature	-10°C – 80°C (14°F – 176°F)
  ATC Approved	Yes
  Miscellaneous
  Packaging Type	Polybag
  Warranty (Years)	10
  Certificates	RoHS, REACH, UL, ATC
  Purchasing Information
  No.	37871
  EAN	4002888378710
  Available Lengths	0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m
