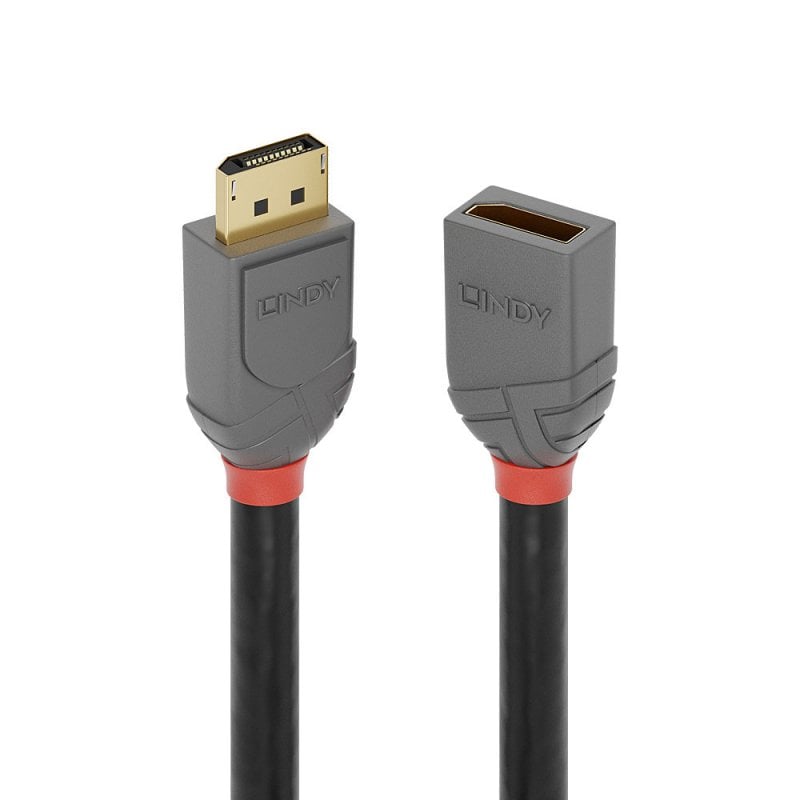

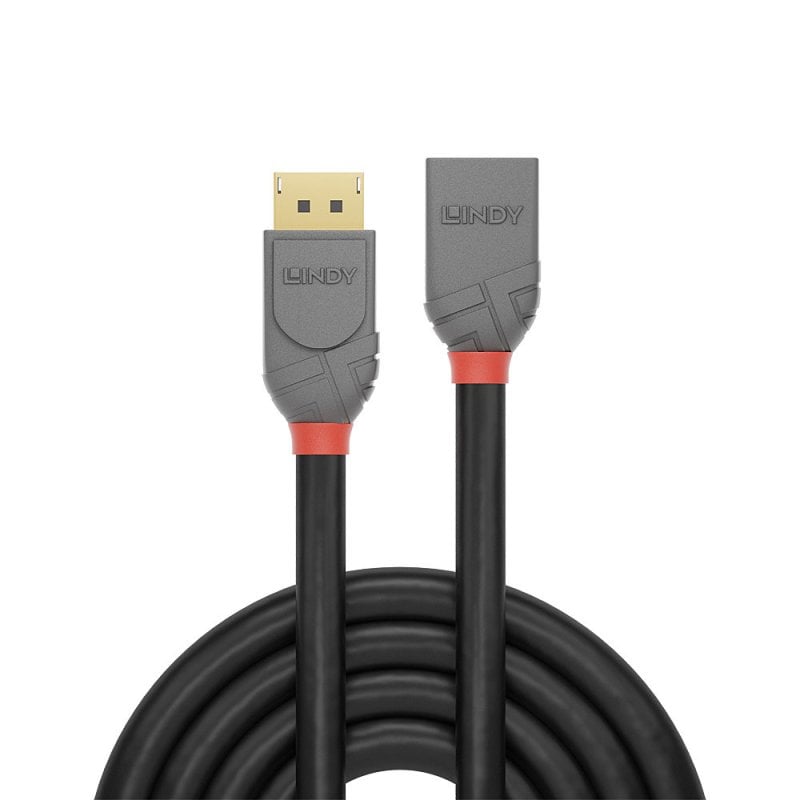

Lindy 1m DisplayPort 1.4 Extension Cable, Anthra Line | 36496

• Description
• Specifications
• Downloads

• Lindy 1m DisplayPort 1.4 Extension Cable, Anthra Line | 36496

  From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

  Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

  UHD resolutions up to 7680×4320@60Hz 4:2:2 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.4 technology ensures compatibility with all DisplayPort enabled devices.

  Anthra Line DisplayPort cables are available in lengths from 0.5m to 3m.

• Category	Feature
  Connectors
  Connector A	DP Male
  Connector B	DP Female
  Housing Material	ABS (Male) / PVC (Female)
  Connector Plating	Gold
  Pin Construction	Copper Alloy
  Pin Plating	Gold
  Dimensions (WxDxH)	Male: 20.5×36.0x12.5mm
  	Female: 20.9×35.0x11.8mm
  Cable Construction
  Length	1m (3.281ft)
  Standard	DP 1.4
  Colour	Black
  Type	Round
  Jacket Diameter	7.0mm (0.28in)
  Jacket Material	PVC
  Conductor Material	Copper Alloy
  Conductor Gauge	28AWG
  Shielding	Aluminium Magnesium Braid 85%
  Specifications
  Supported Bandwidth	32.4Gbps
  Maximum Resolution	7680×4320@60Hz 4:2:2 8bit
  Nominal Attenuation	1.35GHz > -5.5dB (HBR1)
  	2.7GHz > -8.5dB (HBR2)
  	4.05GHz > -11.0dB (HBR3)
  Minimum Bend Radius	70mm (2.76in)
  Operating Temperature	-10°C to 80°C (14°F to 176°F)
  Storage Temperature	-20°C to 85°C (-4°F to 185°F)
  Miscellaneous
  Packaging Type	Polybag
  Warranty	10 Years
  Certifications	RoHS, REACH, CP65, UL
  Purchasing Information
  Product Number	36496
  EAN	4002888364966
