Lindy 16 Port VGA & USB Combo KVM Switch | 39527

• Description
• Specifications
• Downloads

• Lindy 16 Port VGA & USB Combo KVM Switch | 39527

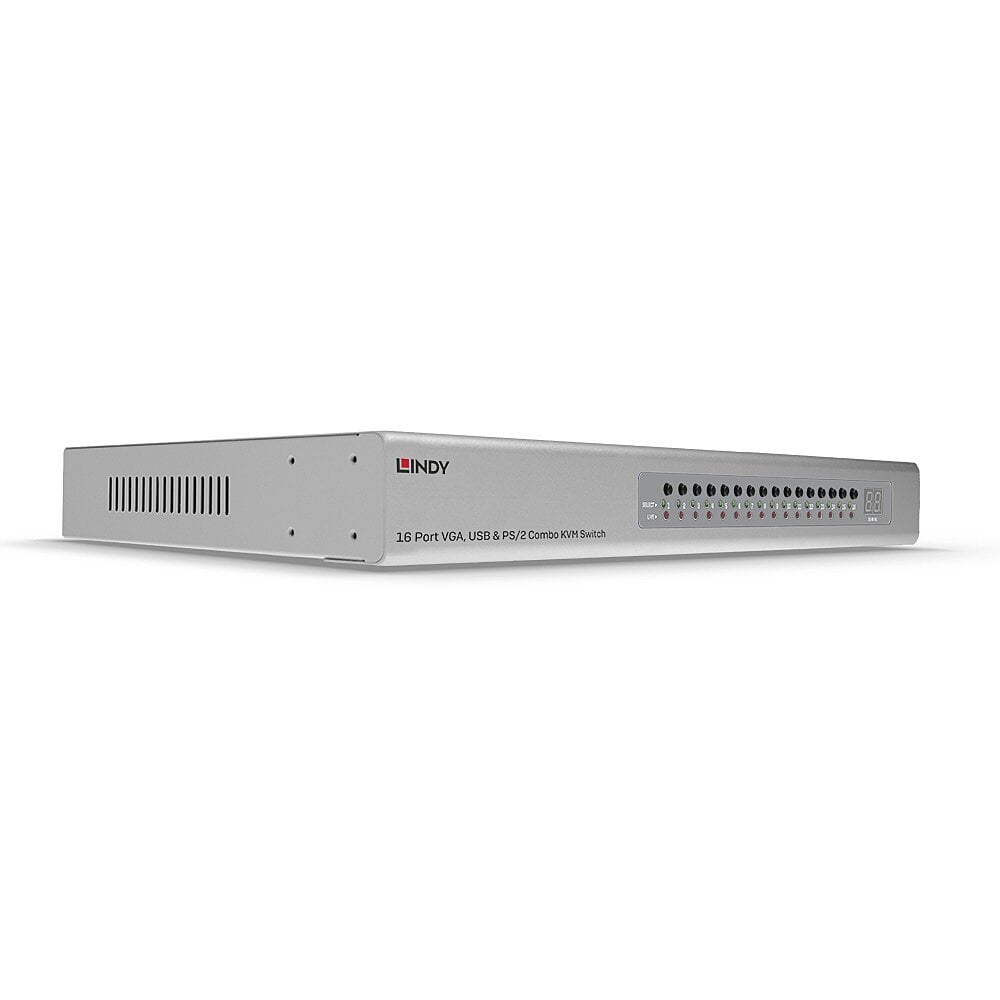

  The Lindy Combo KVM Switch is a hardware solution that allows direct control of multiple computers using a single keyboard, mouse and VGA monitor. It’s ideal for system administrators who want to control multiple computers or servers from a single, centralised location.

  The switch occupies only a single 1U space in a 19” rack and supports screen resolutions of up to 2048×1536@60Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display; setup and management options can be access only via the OSD.

  A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres. All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control & monitoring.

  PCs & connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within “always on” environments such as data centres or traffic management setups.

  Computers or servers can be connected to the 8 host ports on the rear panel via dedicated VGA & USB KVM cables (not included).
  These are available in different lengths:

  1m – 32185

  2m – 32186

  3m – 32187

• Category	Details
  Specifications
  AV Interface	VGA
  Console Interfaces	USB
  Interface Standard	VGA, USB 2.0
  Maximum Resolution	VGA: 2048×1536@60Hz
  HDCP Support	–
  Supported Audio	–
  Separate Audio Ports	–
  Serial Interface	–
  Console Number	1
  Max Number PC/Server	16
  Cascadable	Yes
  Switching Method	OSD, port buttons, Hotkey (configurable)
  19″ Rack Mountable	Yes (1U – Rack Mount Brackets included)
  Connectors
  Console Interfaces	VGA (Female), 2 x USB Type A HID (Female)
  PC/Server Interfaces	16 x VGA (Female)
  Other Interfaces	2 x DaisyChain ports (1 x VGA Female + 1 x VGA Male)
  Power	5.5/2.1mm DC
  Physical Properties
  Dimensions WxDxH	440x220x44mm (17.32×8.66×1.73in)
  Housing Material	Metal
  Net Weight	1.5kg (3.31lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	0~90% RH (non-condensing)
  Power Requirements	9VDC 2A
  Colour	Silver
  Miscellaneous
  Packaging Type	Carton box
  Packaging Dimensions	570x250x110mm (21.54×10.35×4.17in)
  Gross Weight	3.3kg (7.28lb)
  Warranty (Years)	2
  Product Compliance	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents
  Included Items	KVM Switch 2 x 19″ Rack Mount Bracket with Screws Multi-Country PSU (UK, Euro, US, AUS) Daisy Chain Cable (HD15 M/F ~0,22m) Daisy Chain Terminator plug HD15 Quick Start Guide
  Purchasing Information
  No.	39527
  EAN	4002888395274
