• Lindy 16 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch | 39318

  A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

  This advanced KVM Switch has been designed for use with PCs and Macs. It features DVI single link video ports and a two port USB 2.0 hub for connecting and sharing your peripherals. With full audio support, you can also connect your speakers and microphone.

  The switch occupies 2U space in a 19” rack and supports screen resolutions of up to 1920×1200, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 2 simple switching modes, via keyboard hotkeys and front panel buttons.

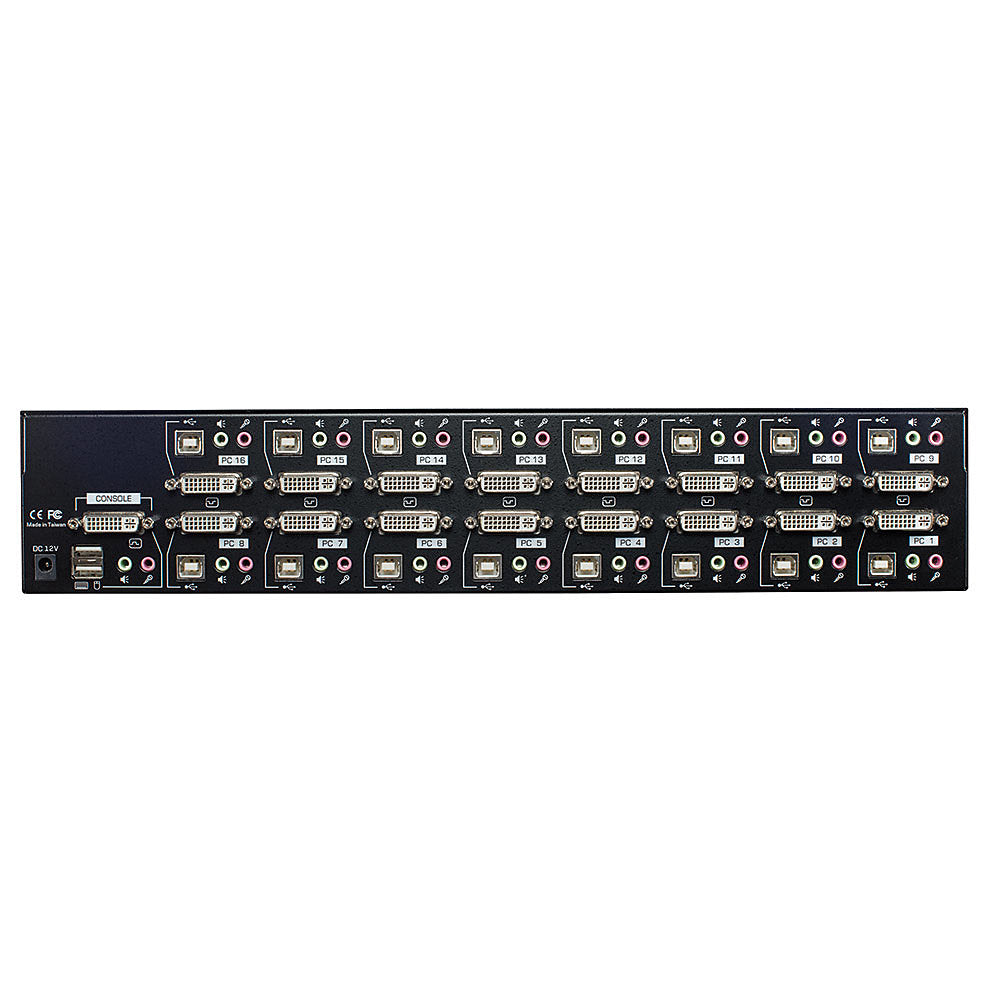

  A local console can be connected to the 2 USB and DVI ports on the rear panel while the built-in 2 port USB 2.0 hub allows you to save money on additional devices by sharing your peripherals between the connected computers. The unique switching arrangement allows the USB hub and the Audio ports to be switched independently of the PCs for uninterrupted listening, printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys.

  LED indicators show status of connected computers and selected channel. The switch supports digital and analogue signals via DVI-I ports but it doesn’t convert video signals; it only switches between all digital or all analogue signals. If used with analog signals, it supports VGA resolutions up to 2048×1536.

  Please Note: connection cables are not included. DVI, USB A to B, and 3.5mm microphone and speaker cables are required for each connected computer. The maximum supported distance for USB, using standard cables, is 5m. For distances over 5m, use a Lindy USB Active Extension Cable.

• Category	Details
  Specifications
  AV Interface	DVI-I
  Console Interfaces	USB
  Interface Standard	DVI-I, USB 2.0
  Maximum Resolution	DVI: 1920×1200@60Hz VGA: 2048×1536@30Hz
  HDCP Support	–
  Supported Audio	Analog Stereo
  Separate Audio Ports	2 x 3.5mm (Female)
  Serial Interface	–
  Console Number	1
  Max Number PC/Server	16
  Cascadable	No
  Switching Method	Port Buttons, Hotkey (Configurable)
  19″ Rack Mountable	Yes (1U – Rack Mount Brackets included)
  Special Features	Shared USB Ports
  Connectors
  Console Interfaces	DVI-I (Female), 2 x USB Type A HID (Female), 2 x 3.5mm (Female)
  PC/Server Interfaces	16 x DVI-I (Female), USB 2.0 Type B (Female), 2 x 3.5mm (Female)
  Other Interfaces	2 x USB 2.0 Type A (Female) Shared Ports (Front Panel)
  Power	5.5/2.5mm DC socket
  Physical Properties
  Dimensions WxDxH	407x110x91mm (16.02×4.33×3.58in)
  Housing Material	Metal
  Net Weight	2.1kg (4.63lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	0~90% RH (non-condensing)
  Power Requirements	12VDC 3A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton box
  Packaging Dimensions	570x245x105mm (22.44×9.65×4.13in)
  Gross Weight	3.2kg (7.05lb)
  Warranty (Years)	2
  Certificated	CE, FCC, RoHS & REACH
  Package Contents
  Included Items	KVM Switch 2 x 19″ Rack Mount Bracket With Screws Multi-Country PSU (UK, Euro, US, AUS) LINDY Manual
  Purchasing Information
  No.	39318
  EAN	4002888393188
