Lindy 15m DisplayPort 1.2 Cable, Gold Line | 36297

• Description
• Specifications
• Downloads

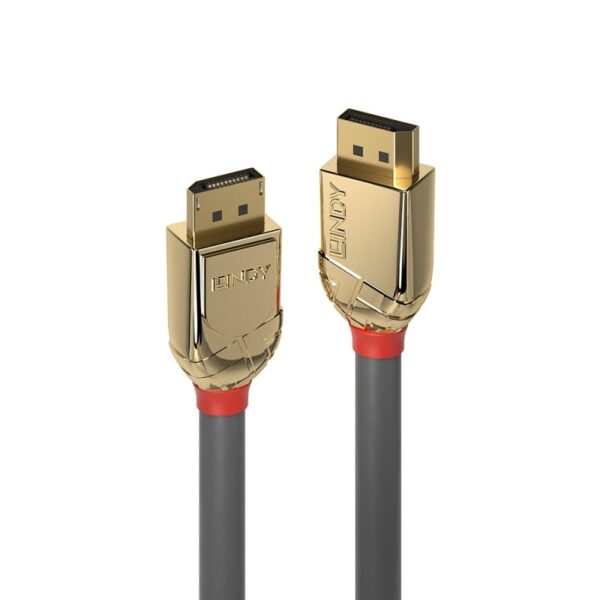

• Lindy 15m DisplayPort 1.2 Cable, Gold Line | 36297

  From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.

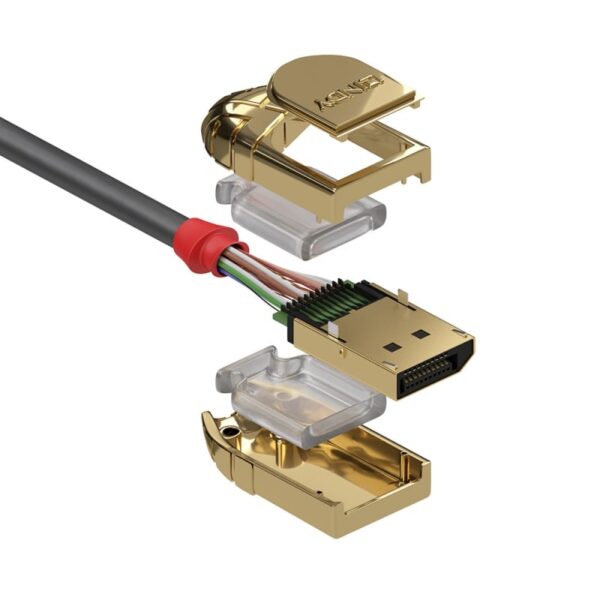

  Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

  UHD resolutions up to 4K 4096×2160@30Hz 4:4:4 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

  These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.

  Gold DisplayPort cables are available in lengths from 0.5m to 20m.

• Category	Details
  Connectors
  Connector A	DisplayPort Male
  Connector B	DisplayPort Male
  Housing Material	24 Gold Plated Zinc Alloy
  Connector Plating	24K Gold 3µm
  Pin Construction	Phosphor Bronze
  Pin Plating	24K Gold 15µm
  Dimensions	19.8×42.5×12.5mm (0.78×1.67×0.49in)
  Cable Construction
  Length	15m (49.21ft)
  Standard	DisplayPort 1.2
  Colour	Grey
  Type	Round
  Jacket Diameter	9mm (0.35in)
  Jacket Material	PVC
  Conductor Material	OFC Copper
  Conductor Gauge	24AWG
  Shielding	Copper Braid 85%
  Specifications
  Supported Bandwidth	10.8 Gbps
  Maximum Resolution	4096×2160@30Hz 4:4:4 8bit
  Nominal Attenuation	300kHz-825MHz
  Minimum Bend Radius	90mm (3.5in)
  Operating Temperature	-20°C – 80°C (-4°F – 176°F)
  Storage Temperature	-25°C – 80°C (-13°F – 176°F)
  Miscellaneous
  Packaging Type	Polybag
  Warranty	25 years
  Certificates	RoHS, REACH, UL
  Purchasing Information
  Item Number	No.36297
  EAN	4002888362979
  Available Lengths	0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m (different EANs)
