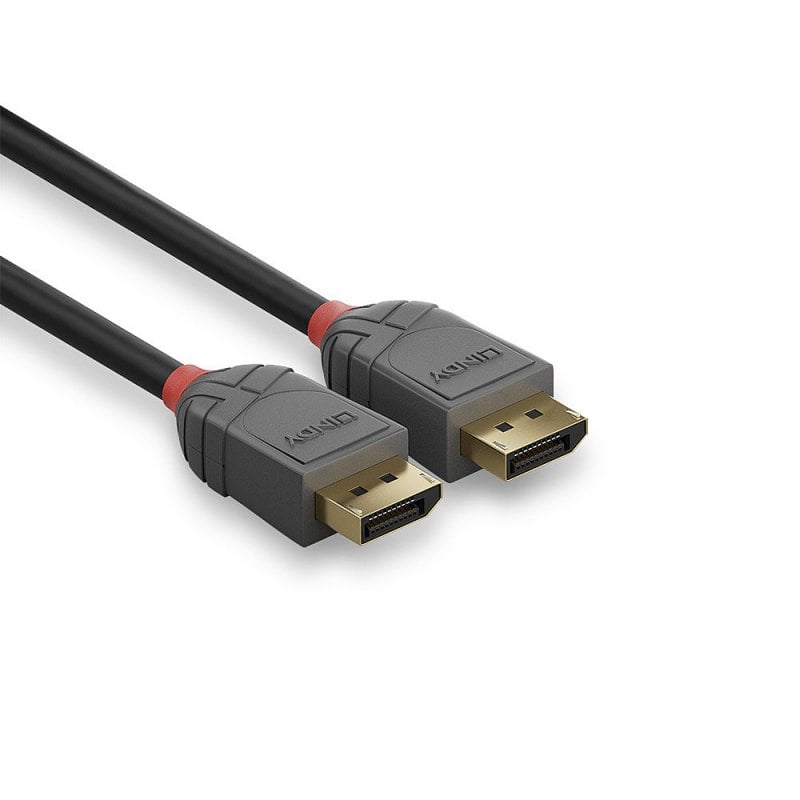

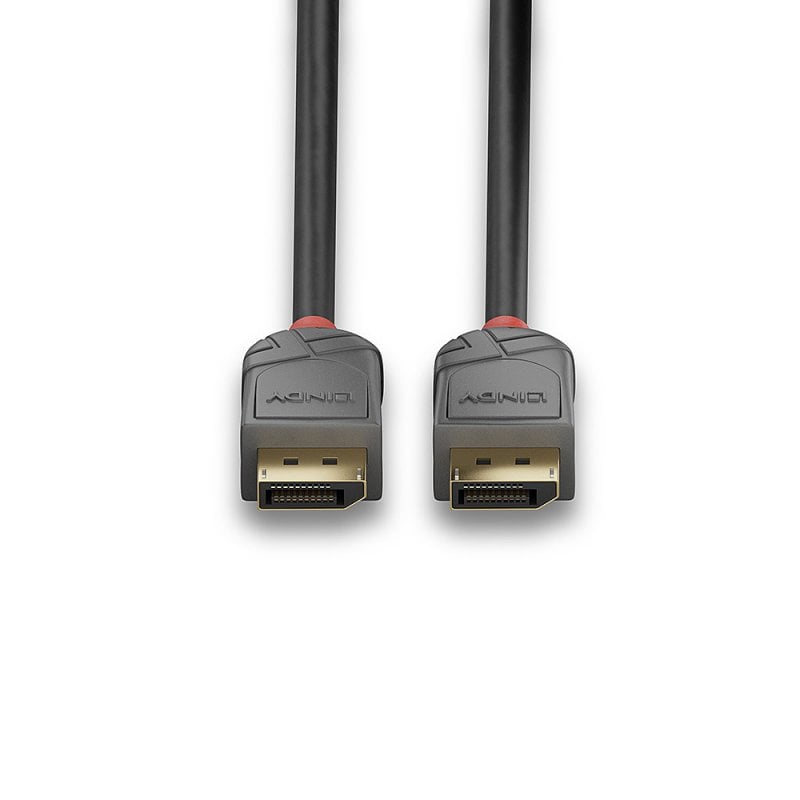

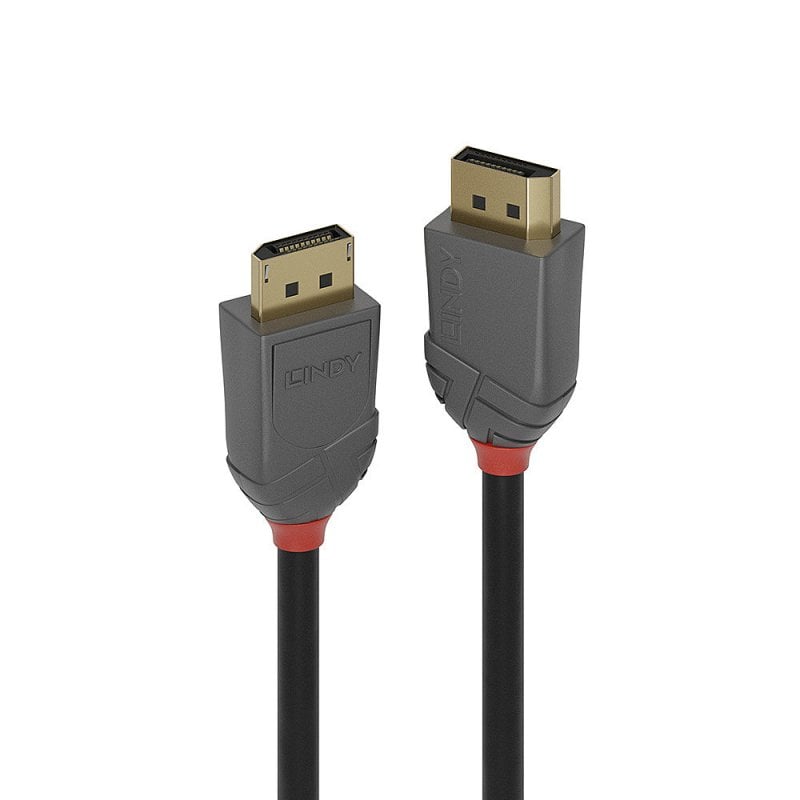

Lindy 15m DisplayPort 1.1 Cable, Anthra Line | 36487
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 26AWG tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Resolutions up to 1920×1200@60Hz are supported. DisplayPort 1.1 technology ensures compatibility with all DisplayPort enabled devices.
-
Category Details Connectors – Connector A: DP Male
– Connector B: DP Male
– Housing Material: ABS
– Connector Plating: Gold
– Pin Construction: Copper Alloy
– Pin Plating: Gold
– Dimensions: 20.4×36.0x12.7mm (0.8×1.42×0.5in)Cable Construction – Length: 15m (49.21ft)
– Standard: DP 1.1
– Colour: Black
– Type: Round
– Jacket Diameter: 8.5mm (0.34in)
– Jacket Material: PVC
– Conductor Material: Tinned Copper
– Conductor Gauge: 26AWG
– Shielding: Aluminium Magnesium Braid, 50%Specifications – Supported Bandwidth: 10.8Gbps
– Maximum Resolution: 1920×1200@60Hz
– Nominal Attenuation: 100MHz-450MHz > -2.44dB, 450MHz-8100MHz > -5.094dB
– Minimum Bend Radius: 85mm (3.35in)
– Operating Temperature: -10°C – 80°C (14°F – 176°F)
– Storage Temperature: -25°C – 85°C (-13°F – 185°F)Miscellaneous – Packaging Type: Polybag
– Warranty (Years): 10
– Certifications: RoHS, REACH, ULPurchasing Information – No.: 36487
– EAN: 4002888364874 -
