• Lindy 150m Cat.6 TosLink (Optical) & Coaxial Digital Audio Extender – 70456

  Extends TosLink (Optical) & coaxial digital audio up to 150m over network cable
  Supports stereo and multi-channel audio formats including Dolby Digital & DTS
  Supports PoC (Power over Cat Cable) from the transmitter to receiver
  Simultaneous audio output
  2 year warranty

  The Lindy 150m Cat.6 TosLink (Optical) & Coaxial Digital Audio Extender is a high-quality solution for extending digital audio signals over long distances, using standard network cable. With TosLink (Optical) and coaxial inputs and outputs, this extender can be easily used with a variety of AV source devices including TVs and amplifiers, with speakers or soundbars located at the receiver side.
  Connected audio can be output simultaneously to provide splitting functionality from a single input, great for smaller audio broadcasting setups in underground railway stations, bus depots or medical facilities. This also allows simple conversion of TosLink and Coaxial signals into their opposing output.

  Supporting both stereo and multi-channel audio extension, this extender will allow for impressive three-dimensional surround sound performance to compliment films and games when connected to the audio source device, as well as crystal clear speech from user generated audio. This provides the user with an excellent point to point solution, ideal for use in immersive residential cinema rooms or creating a more attractive and enticing retail experience.

  PoC (Power over Cable) functionality, the supply of power and data signals over Cat.6 cable on a point to point connection between the transmitter and receiver also brings additional flexibility as only one power supply is required at the transmitter unit, ideal when power outlets are limited at the receiver end of the installation.

  Please note: simultaneous output is only possible when identical 96KHz sample rates are used

• Specifications	Details
  AV Interface	Toslink (Optical), Coaxial
  Interface Standard	–
  Supported Bandwidth	–
  Maximum Distance	150m (492.12ft)
  Maximum Resolution	–
  HDCP Support	–
  EDID Pass Through	–
  Supported Audio	LPCM, Dolby Digital, DTS
  Separate Audio Ports	Toslink (Optical), Coaxial
  IR Support	–
  CEC Support	–
  Serial Interface	–
  Transmission Protocol	1 x Cat.5e / 6
  Transmission Medium	–
  Chipset	EL5171/ EL5172
  Special Features	PoC (Power over Cat Cable), Simultaneous Output*
  Connectors

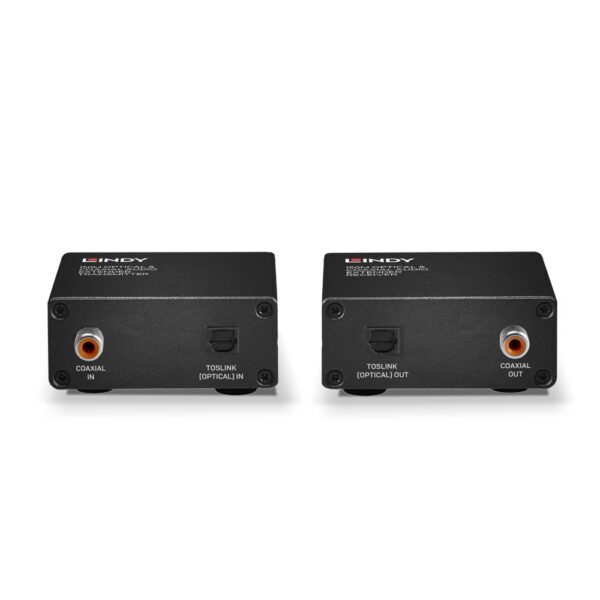

  Transmitter Input	Toslink (Optical) (Female), Coaxial (Female)

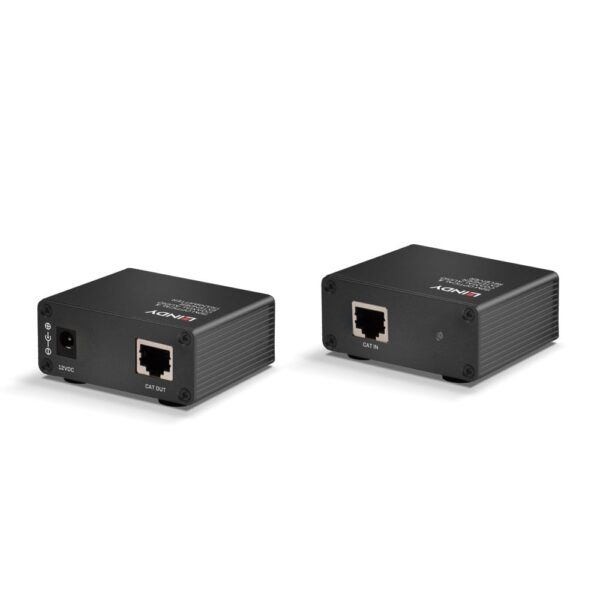

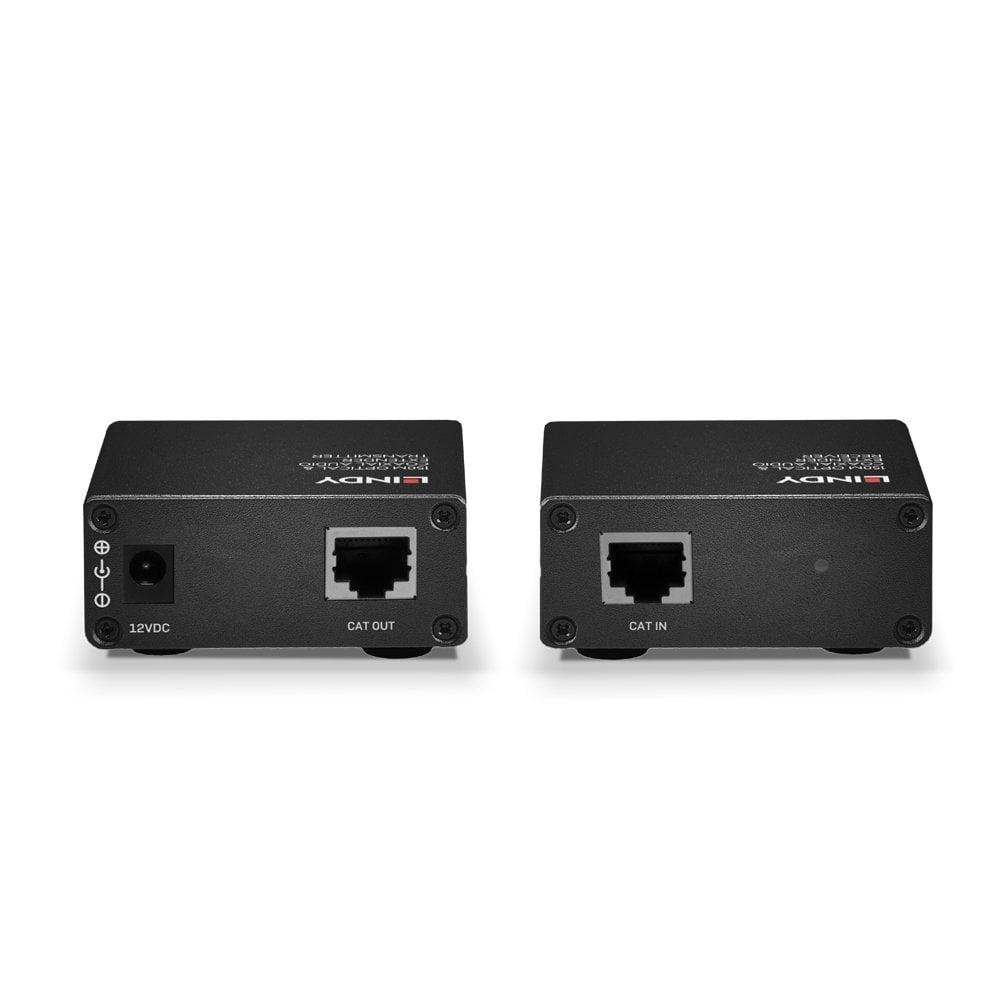

  Transmitter Output	RJ-45 (Female)
  Receiver Input	RJ-45 (Female)

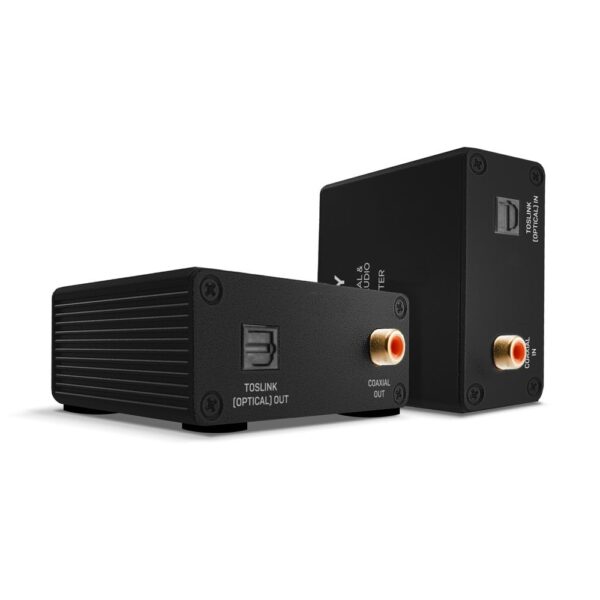

  Receiver Output	Toslink (Optical) (Female), Coaxial (Female)
  Bi-directional Ports	–
  Power	5.5/2.1mm
  Physical Properties
  Dimensions (WxDxH)	65.9×26.9×53.1mm (2.59×1.06×2.09in) per unit
  Housing Material	Metal
  Net Weight	0.168kg (0.37lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-10°C – 80°C (14°F – 176°F)
  Humidity	5% – 90% RH (non-condensing)
  Power Requirements	12VDC 1.25A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	190x60x145mm (7.48×2.36×5.71in)
  Gross Weight	0.405kg (0.89lb)
  Warranty (Years)	2
  Certified	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents
  150m Cat.6 TosLink (Optical) & Coaxial Digital Audio Extender
  Multi-country Power Supply	UK, EU, US & AUS
  Lindy Manual
  Purchasing Information
  No.	70456
  EAN	4002888704564
