• Lindy 150m Cat.6 HDMI 4K60 & Type C HDBaseT EU Wall Plate KVM Extender, Transmitter | 38388

  The Lindy Cat.6 HDBaseT HDMI® 4K60 & Type C Wall Plate Transmitter is one part of a high performance, reliable solution for extending AV and data signals over long distances via Cat.6 network cable.
  By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38389, this solution ensures reliable transmission up to 150m.
  The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:
  Standard Mode (STD)
  90m: 3840×2160@60Hz 4:4:4 8bit / 4:2:2 12bit
  Long Reach Mode (LRM)
  150m: 3840×2160@30Hz 4:4:4 8bit / 4:2:2 12bit

  Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

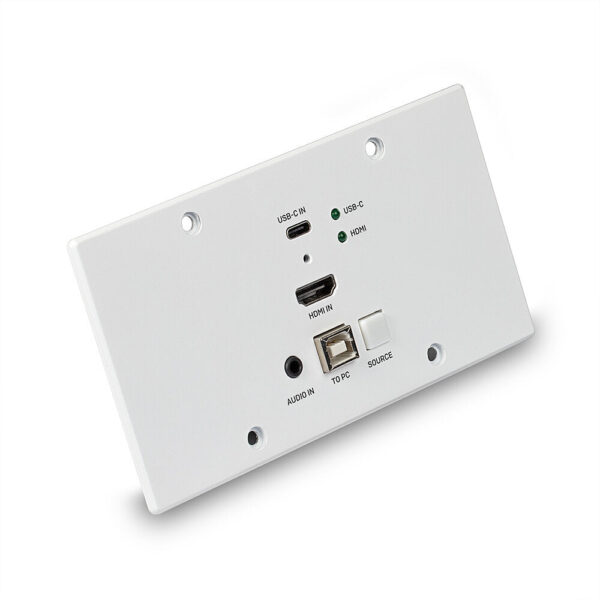

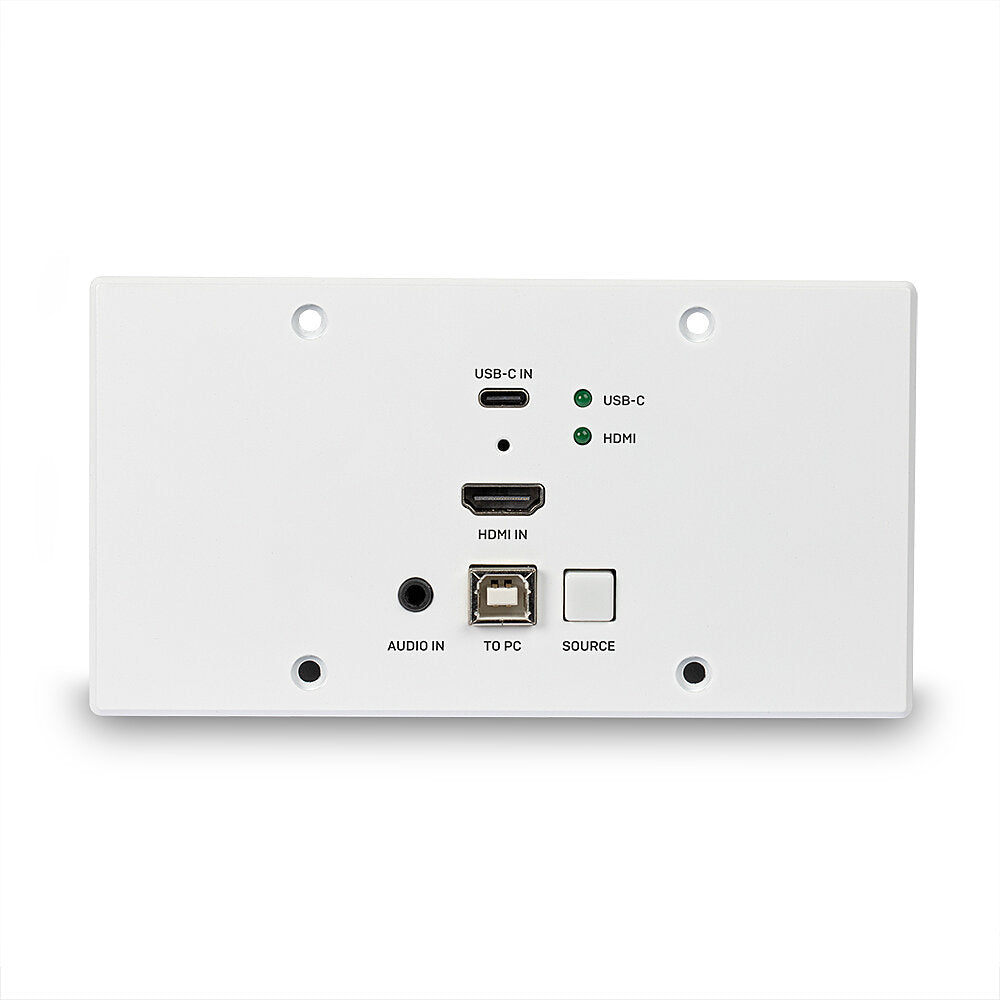

  Pushing the Source button on the front panel allow the user to switch between Type C or HDMI® (with USB) inputs in order to control a source such as a PC from a compatible HDBaseT KVM Receiver. Auto switch feature is also supported.
  PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

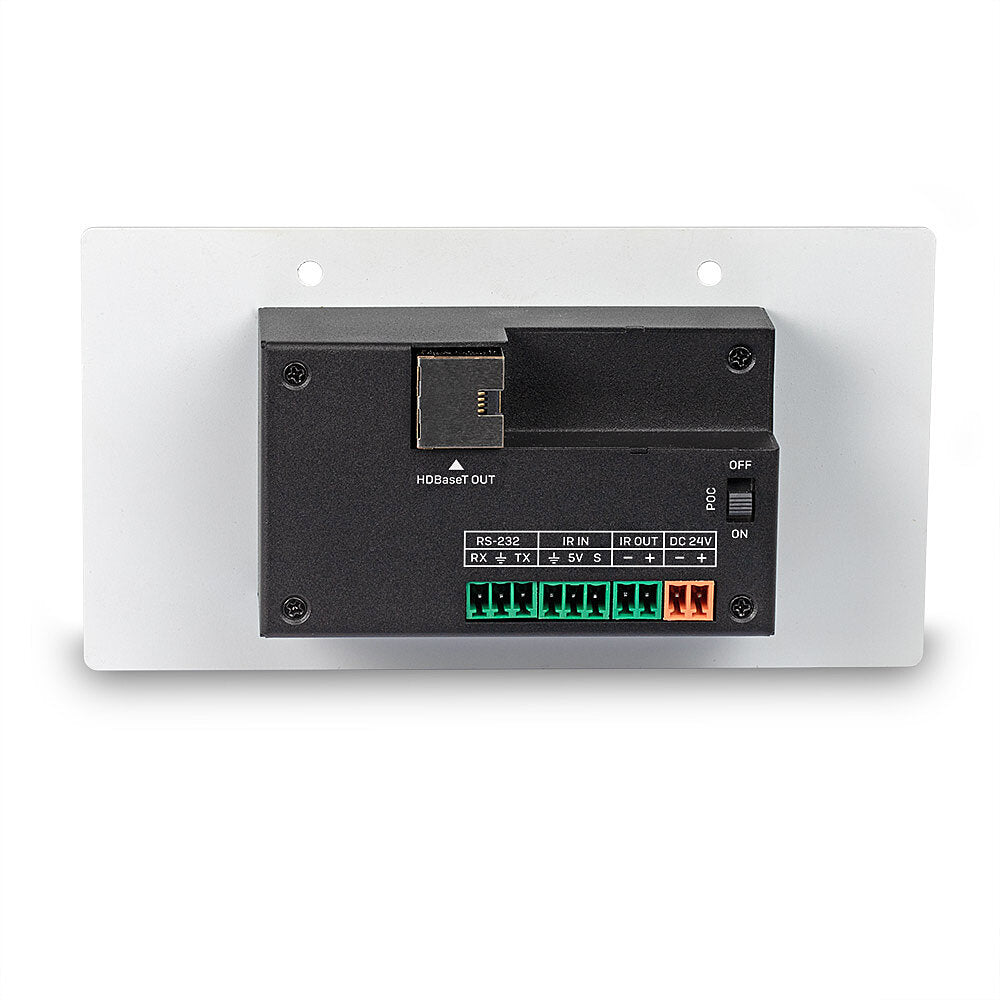

  Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI® source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.
  HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

  HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

  Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.

• Category	Specifications
  AV Interface	HDMI®, Type C
  Interface Standard	HDMI® 2.0, USB 2.0
  Supported Bandwidth	HDMI® 18Gbps, USB Type C 5.4Gbps
  Maximum Distance	90m (295.28ft) at 3840×2160@60Hz (STD), 150m (492.12ft) at 3840×2160@30Hz (LRM)
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	2.2
  EDID Pass Through	Dip-switch with presets and copy function
  Supported Audio	Pass Through
  Separate Audio Ports	3.5mm
  IR Support	20 – 60KHz
  CEC Support	–
  Serial Interface	RS-232 Pass Through
  Transmission Protocol	HDBaseT 2.0
  Transmission Medium	Cat.6
  Chipset	VS2010
  Special Features	Bi-directional IR, PoC (Power over Cable) with On/Off switch, Audio embedded, Long Reach Mode
  Connectors	Input: HDMI® Type A (Female), USB Type C (Female), USB Type B (Female), 3.5mm Audio (Female), IR 3-pin Terminal Block; Output: RJ-45 (Female), IR 3-pin Terminal Block
  Bi-directional Ports	RS-232 3-Pin Terminal Block
  Power	2-Pin Terminal Block DC connector

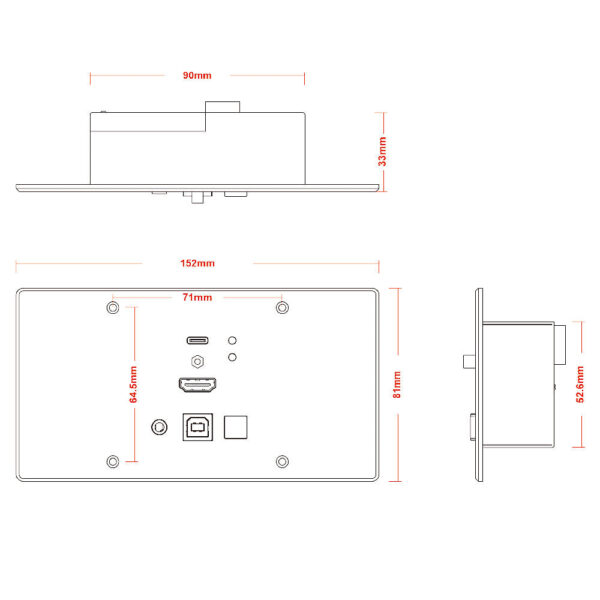

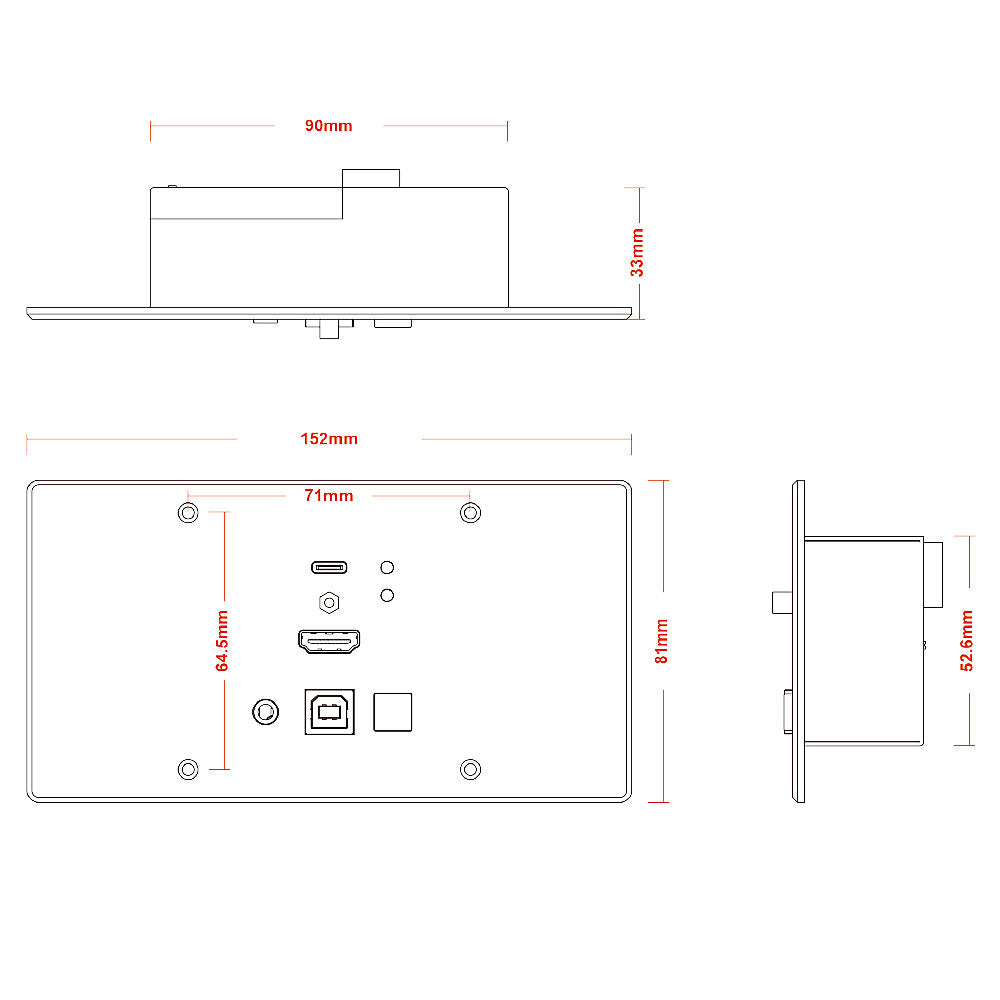

  Dimensions	152×33.5x81mm (5.98×1.32×3.19in)
  Housing Material	Metal
  Net Weight	0.42kg (0.93lb)
  Operating Temperature	0°C – 40°C (32°F – 104°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	20 – 90% RH (non-condensing)
  Power Requirements	24VDC 1A
  Colour	White plate
  Packaging Type	Carton Box
  Packaging Dimensions	172x98x133mm (6.77×3.86×5.24in)
  Gross Weight	0.58kg (1.28lb)
  Warranty (Years)	2
  Product Compliance	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents	Transmitter, Multi-country Power Supply, 2x 3-Pin Terminal Block, 2x 2-Pin Terminal Block, Lindy Manual
