• Lindy 140m Cat.6 DVI-D, USB, Audio & RS-232 KVM Extender | 39245

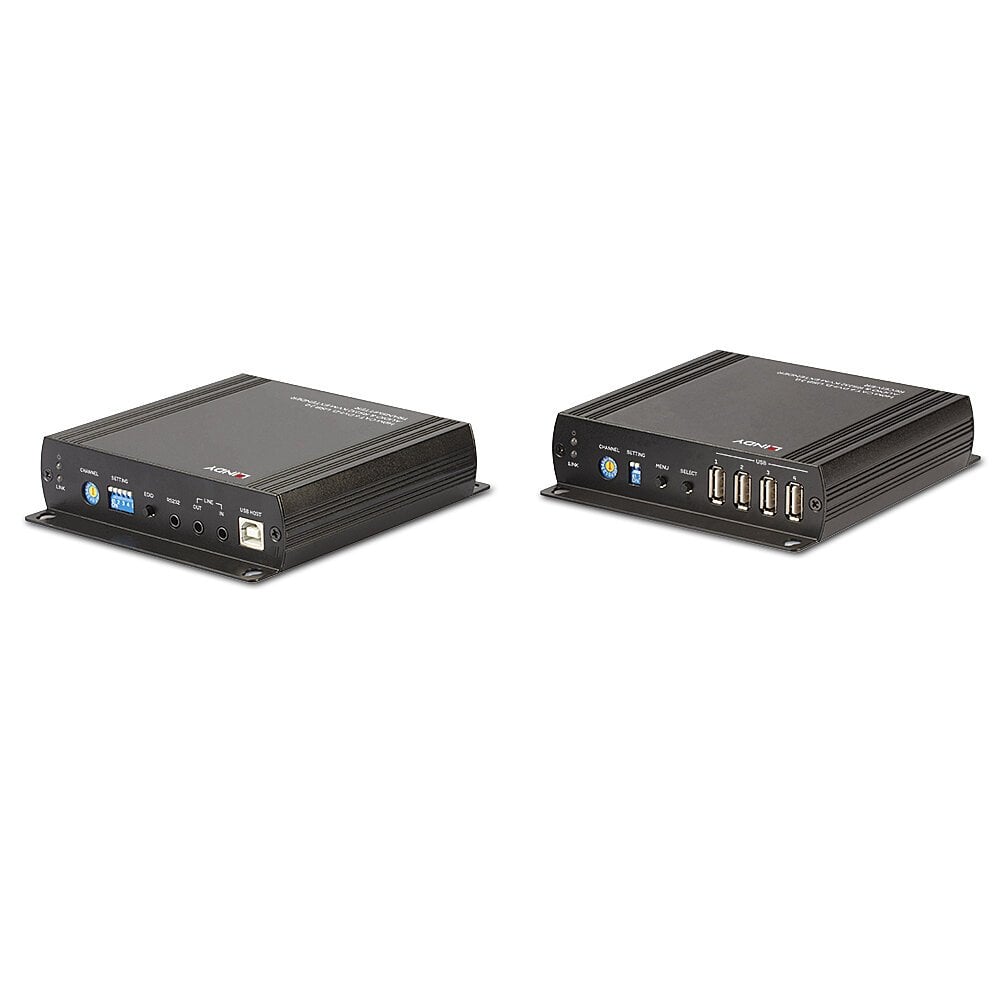

  The Lindy Cat.6 DVI-D Single Link, USB, Audio & RS-232 KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 140m using a Cat.6 RJ-45 cable. Supports single link resolutions up to 1920×1200 and HDMI signals including Full HD 1080p, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit. The transmitter must be connected to a source such as a PC or KVM Switch, while the console with display, keyboard and mouse must be connected to the receiver. It’s also possible to connect additional USB 2.0 devices such as storage and hard drives (webcams are not supported).

  The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.

  RS-232 connections also allow for integration into pre-installed control systems.

  This extender provides a simple plug & play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.

  Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).

• Category	Feature	Details
  Specifications	AV Interface	DVI-D
  	Console Interface	USB
  	Interfaces Standard	DVI-D Single Link, USB 2.0
  	Supported Bandwidth	850Mbps
  	Maximum Distance	140m (459.31ft)
  	Maximum Resolution	1920×1200@60Hz
  	HDCP Support	1.4
  	Supported Audio	Analogue Stereo & Mono
  	Separate Audio Ports	2 x 3.5mm (Female)
  	Transmission Medium	Cat.6
  	Special Features	EDID management, point-to-point and LAN connection, RS-232 signal extension

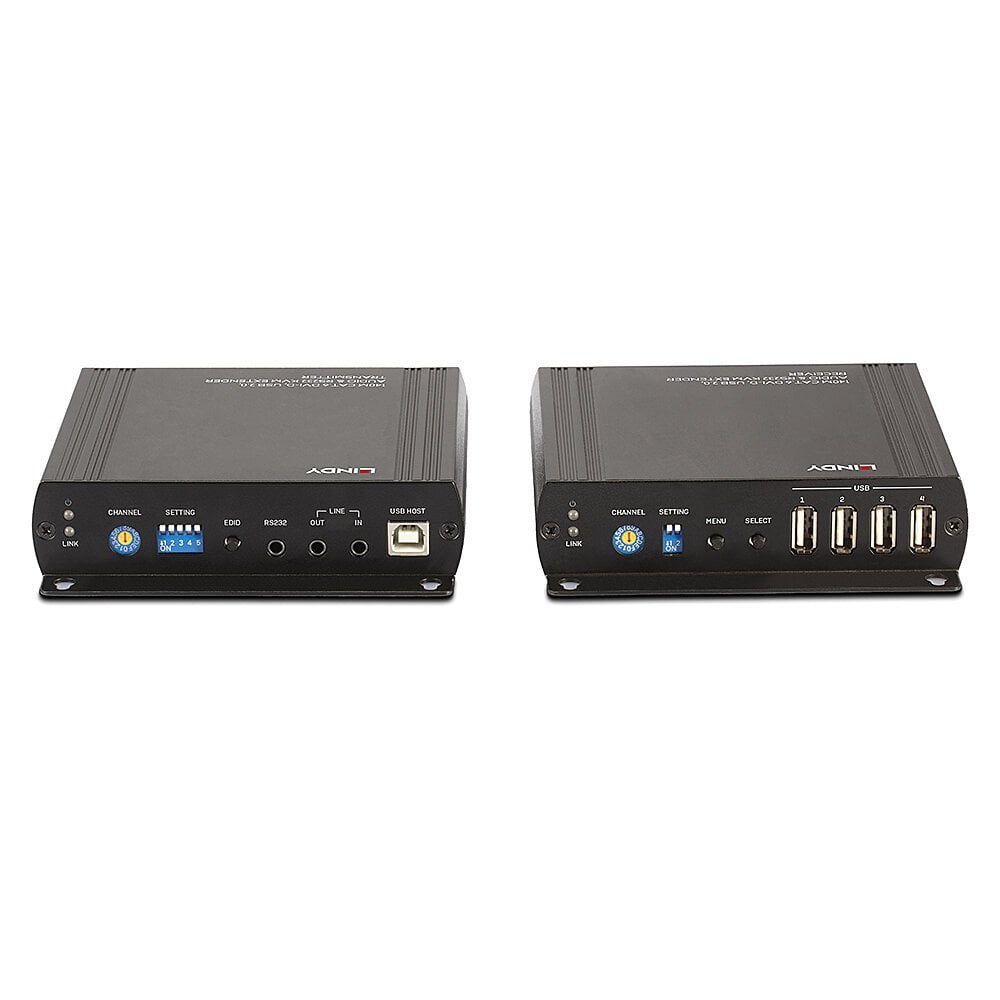

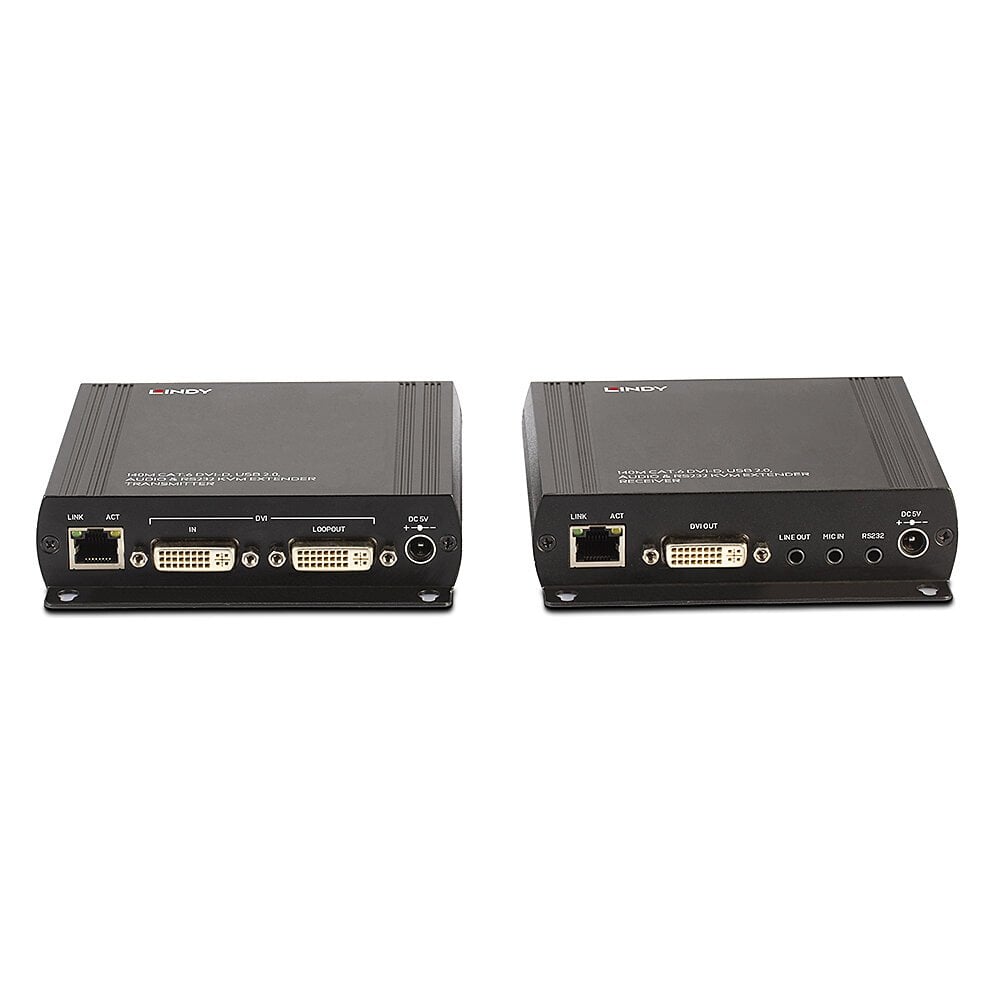

  Connectors	Transmitter KVM Interfaces	DVI-I in (Female), DVI-I loopout (Female), USB Type B (Female), 2 x 3.5mm (Female)
  	Transmitter Extension Port	1 x RJ-45 (Female)
  	Receiver Console Interface	DVI-I (Female), 4 x USB Type A (Female), 2 x 3.5mm (Female)
  	Receiver Extension Port	1 x RJ-45 (Female)
  	Bi-directional Ports	3.5mm RS-232 (Female)
  	Other Interfaces	–
  	Power	5.5/2.5mm DC socket
  Physical Properties	Dimensions (approx.) WxDxH	125x140x30mm (4.92×5.51×1.18in) (each unit)
  	Housing Material	Metal
  	Net Weight	1.27kg (2.8lb)
  	Operating Temperature	-20°C – 60°C (-4°F – 140°F)
  	Storage Temperature	-20°C – 85°C (-4°F – 185°F)
  	Humidity	0 – 95% RH (non-condensing)
  	Power Requirements	5VDC 2.6A
  	Colour	Black
  Miscellaneous	Packaging Type	Carton Box
  	Packaging Dimensions	355x195x60mm (13.98×7.68×2.36in)
  	Gross Weight	1.52kg (3.35lb)
  	Warranty (Years)	2
  	Certification	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents	Contents	Transmitter unit, Receiver unit, 1 x USB Type A/B cable (1.45m), 1 x 3.5mm to RS232 DB9 Male cable (1.80m), 1 x 3.5mm to RS232 DB9 Female cable (1.80m), 2 x Multi-Country Power Supply (EU, UK, US, AUS), 8 x Screws and Dowels, Lindy Manual
  Purchasing Information	No.	39245
  	EAN	4002888392457
