• Lindy 12m USB 2.0 Active Extension Pro 4 Port Hub | 42783

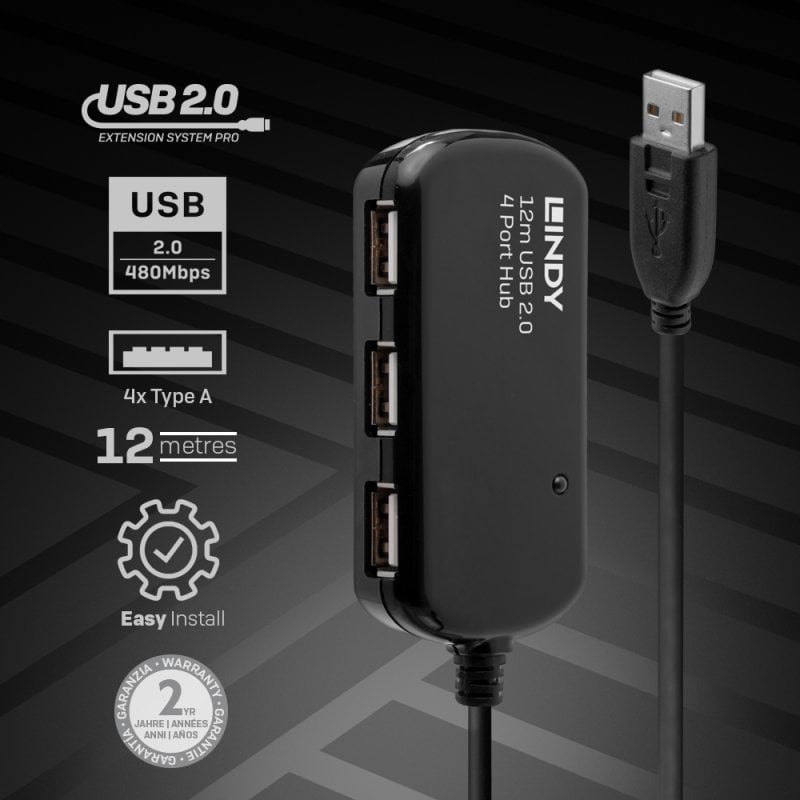

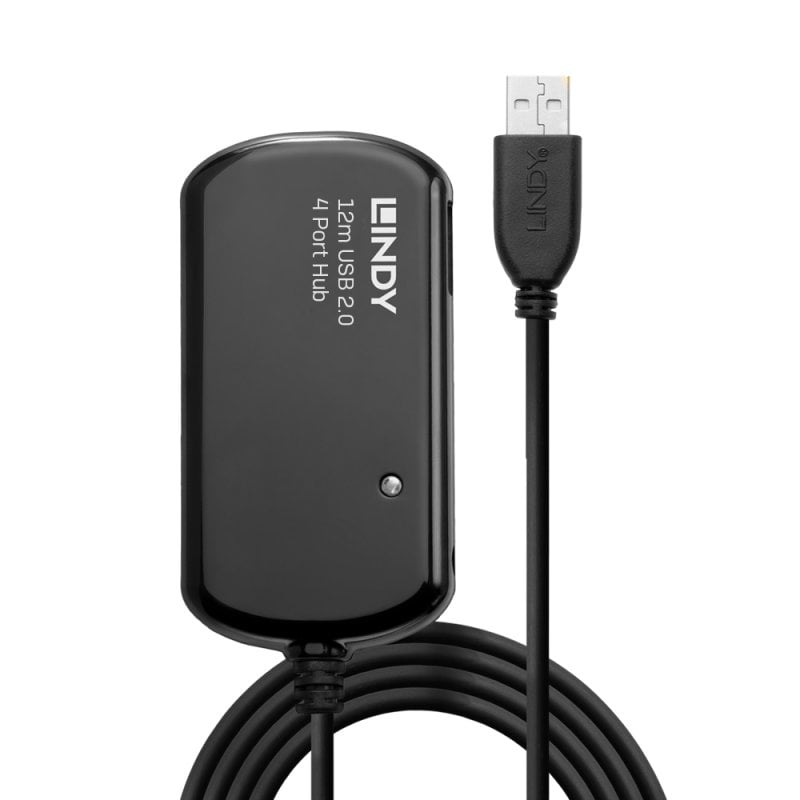

  The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

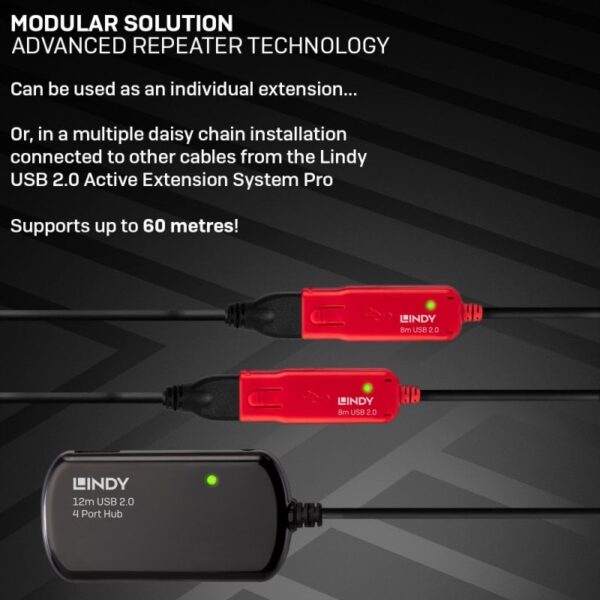

  This 12m extension hub can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

  The 8m and 12m cable and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

  This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

• Category	Details
  Connectors	Connector A: USB Type A Male Connector B: 4 x USB Type A Female
  Power	3.5/1.35mm DC Connector
  Housing Material	Plastic
  Connector Plating	Front: Gold / Back: Nickel
  Pin Construction	Brass
  Pin Plating	Gold Flash
  Dimensions (approx.)	USB A Male: 15x43x8mm (0.59×1.69×0.31in) Hub: 80x40x16mm (3.15×1.57×0.63in)
  Cable Construction	Length: 12m (39.37ft) Standard: USB 2.0 Colour: Black Type: Round
  Jacket Diameter	5mm +/-0.15mm (0.2in +/- 0.01in)
  Jacket Material	Half matt PVC low toxic
  Conductor Material	Tinned Copper
  Conductor Gauge	26/20AWG
  Shielding	AL Mylar and braid
  Supported Bandwidth	480 Mbps
  Nominal Attenuation	Various frequencies from -0.08 dB to -5.8 dB
  Minimum Bend Radius	26mm (1.02in)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Transmission Medium	Twisted Pair
  Transmission Technology	USB 2.0
  Packaging Type	Carton Box
  Packaging Dimensions	238x202x66mm (9.37×7.95×2.6in)
  Net Weight	0.463kg (1.02lb)
  Gross Weight	0.819kg (1.81lb)
  Warranty (Years)	2
  Certified	CE, UKCA, FCC, RoHS & REACH
  Packaging Content	USB 2.0 Active Extension Pro Hub 5VDC 2.6A Multi-Country Power Supply (EU, UK, US & AUS) Lindy Manual
  Purchasing Information	No.: 42783 EAN: 4002888427838
  Available Lengths	8m (26.25ft) with hub (42781)
