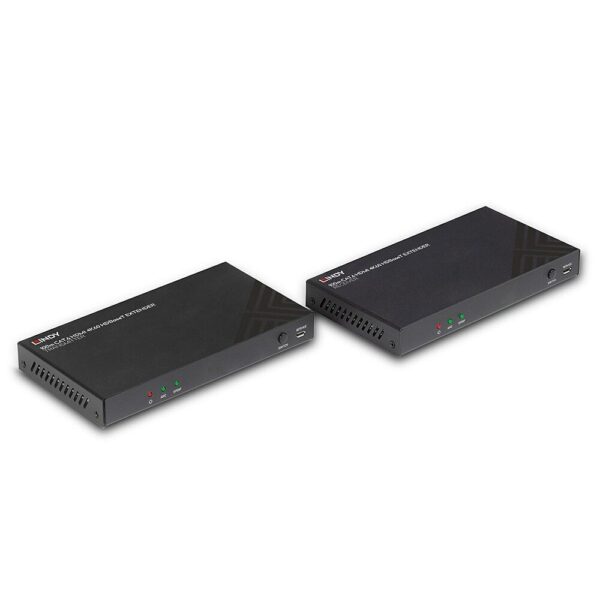

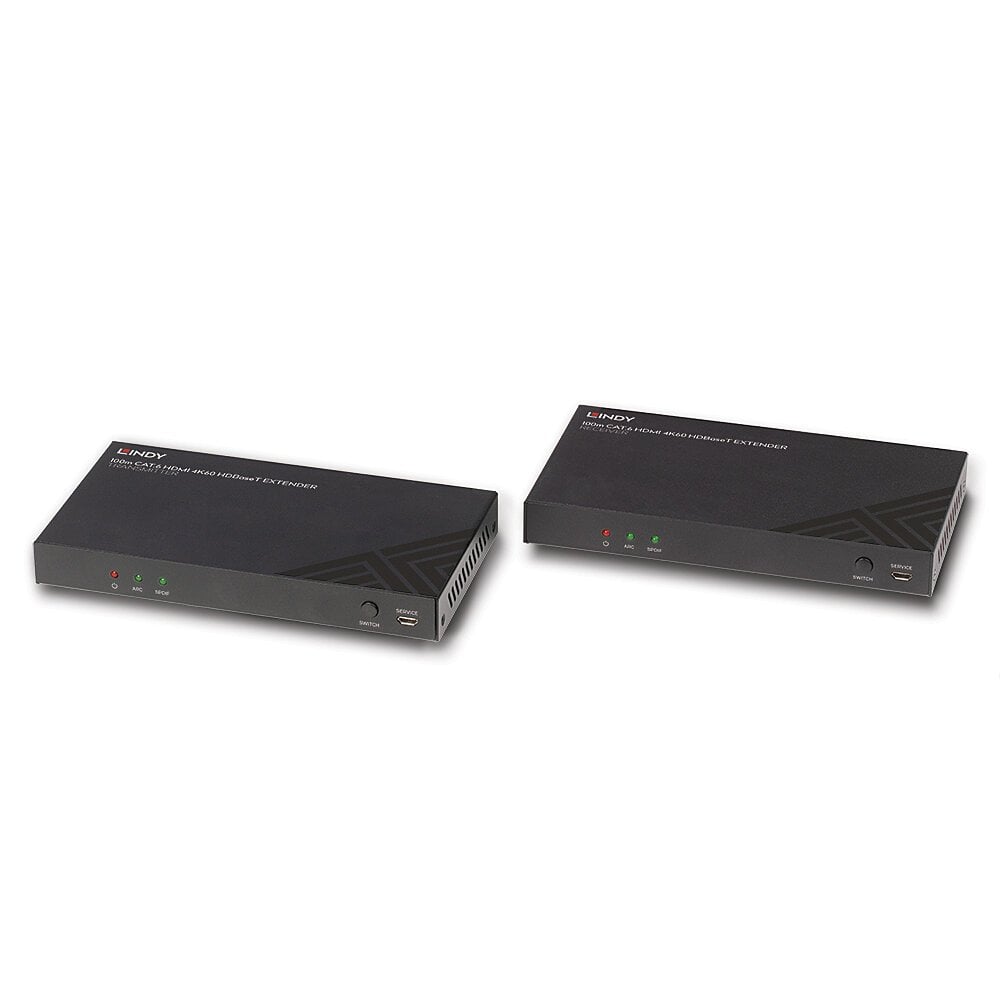

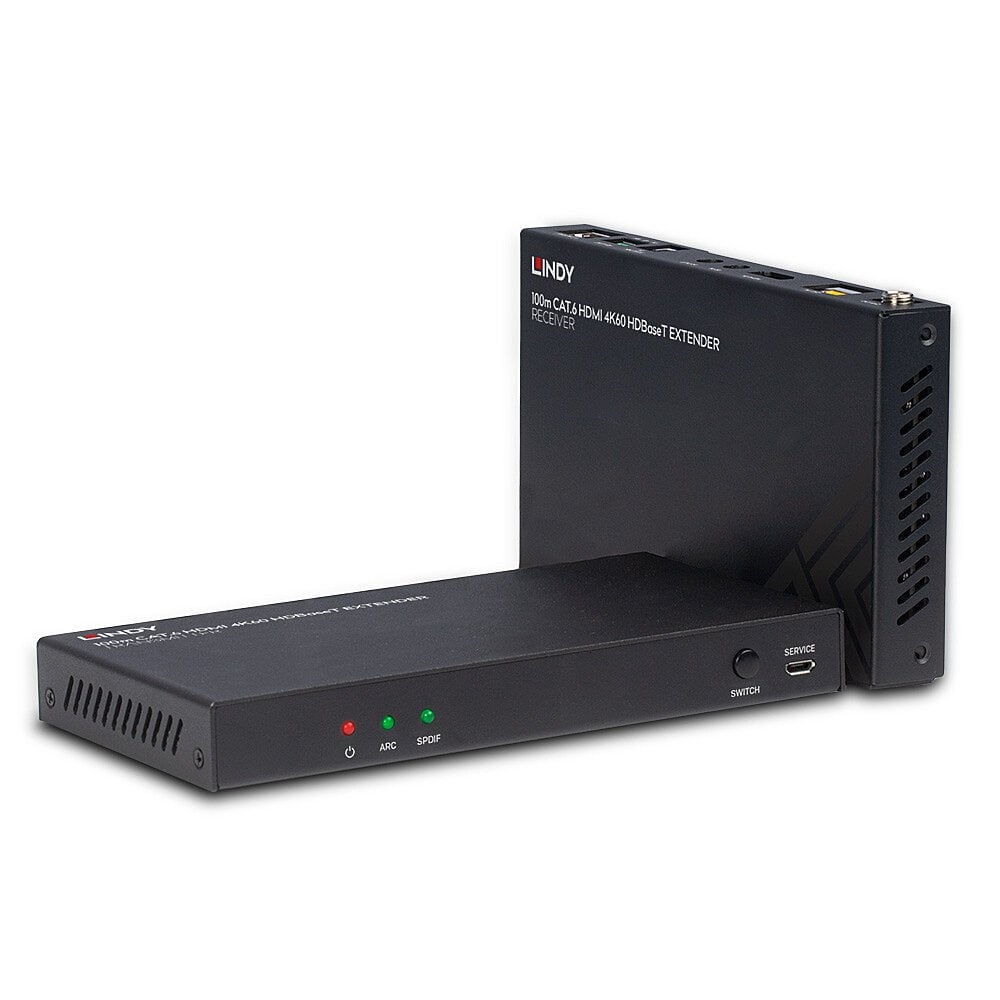

• Lindy 100m Cat6 HDMI IR & RS-232 HDBaseT Extender

  The Lindy 100m Cat.6 HDMI® 4K60, Audio, IR & RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI® signals over long distances via Cat.6 network cable.

  The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
  100m: 1920×1080@60Hz 4:4:4 8bit
  70m: 3840×2160@60Hz 4:4:4 8bit / 4:2:2 12bit

  Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

  ARC support over HDMI® allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the push button on the main unit.

  PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

  Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI® source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.

  In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

  HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

  HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.able. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

  Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type.

• Category	Feature	Details
  Specifications	AV Interface	HDMI®
  	Interface Standard	HDMI® 2.0
  	Supported Bandwidth	18Gbps
  	Maximum Distance	70m (3840×2160@60Hz 4:4:4 8bit), 100m (1920×1080@60Hz)
  	Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  	HDCP Support	2.2
  	EDID Pass Through	Pass-through
  	Supported Audio	HDMI® Audio Pass-through, TosLink (Optical) Up to 5.1Ch, 3.5mm Up to 2.0Ch
  	Separate Audio Ports	TosLink (Optical), 3.5mm
  	IR Support	20-60kHz
  	CEC Support	Pass-through
  	Serial Interface	RS-232
  	Transmission Protocol	HDBaseT
  	Transmission Medium	Cat.6
  	Laser Class (only for Fibre)	–
  	Wavelength (only for Fibre)	–
  	Chipset	VS2310TX-A1
  	Special Features	HDMI® Loop Out Port, PoC (Power over Cat.6), ARC Support
  Connectors	Transmitter Input	HDMI® Type A (Female), 3.5mm IR (Female)
  	Transmitter Output	RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
  	Receiver Input	RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female)
  	Receiver Output	HDMI® Type A (Female), 3.5mm IR (Female)
  	Bi-directional Ports	RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
  	Power	5.5/2.1mm
  Physical Properties	Dimensions (approx.) WxDxH	163x90x16mm (6.42×3.54×0.63in) per unit
  	Housing Material	Metal
  	Net Weight	0.77kg (1.7lb)
  	Operating Temperature	0°C – 40°C (32°F – 104°F)
  	Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  	Humidity	20 – 90% RH (non-condensing)
  	Power Requirements	24VDC 1A
  	Colour	Black
  Miscellaneous	Packaging Type	Carton Box
  	Packaging Dimensions	265x70x210mm (10.43×2.76×8.27in)
  	Gross Weight	1.28kg (2.82lb)
  	Warranty (Years)	2
  	Certifications	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents	Contents	HDBaseT HDMI® Extender (Transmitter & Receiver), IR Emitter Cable (1.5m), IR Receiver Cable (1.5m), 4 x Mounting Ears & 8 x Screws, 2 x 3-Pin Terminal Block, Multi-country Power Supply (UK, EU, US & AUS), Lindy Manual
  Purchasing Information	No.	38340
  	EAN	4002888383400
