• Lindy 0.5m High Speed HDMI Cable, Anthra Line | 36961

  From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

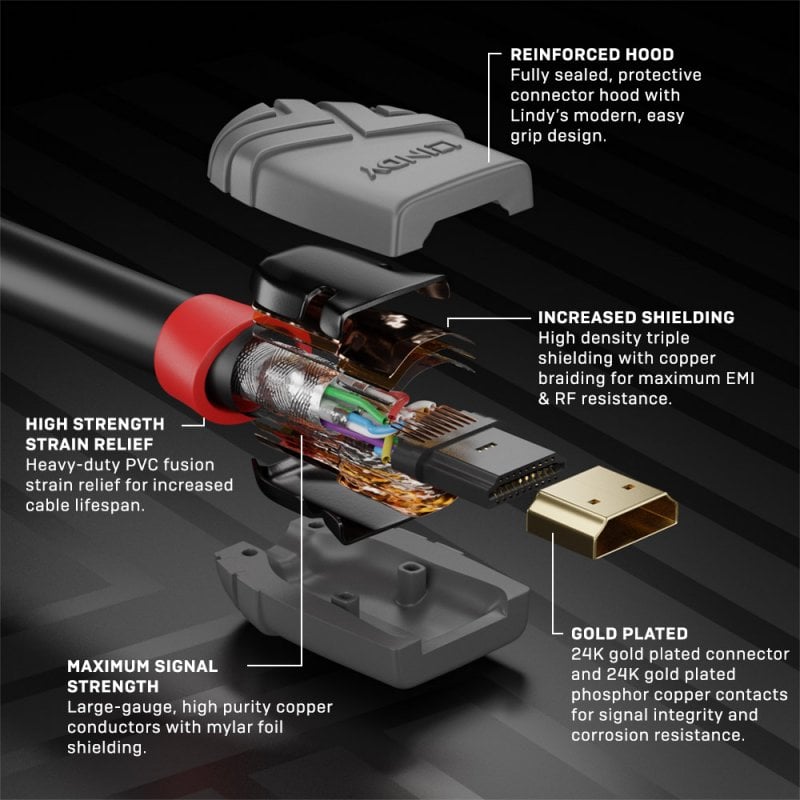

  Anthra Line HDMI cables are premium cables that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

  UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

  The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.

  Anthra Line HDMI cables are available in lengths from 0.3m to 5m.

• Category	Details
  Connectors	Connector A: HDMI Type A Male Connector B: HDMI Type A Male Housing Material: PVC Connector Plating: 24K Gold 15µm Pin Construction: Phosphor Copper Pin Plating: 24K Gold 3µm Dimensions: 20×34.2×10.9mm (0.79×1.35×0.43in)
  Cable Construction	Length: 0.5m (1.64ft) Standard: High Speed HDMI with Ethernet Colour: Black Type: Round Jacket Diameter: 6mm (0.24in) Jacket Material: PVC Conductor Material: Copper Conductor Gauge: 30AWG Shielding: Copper Braid, 65%
  Specifications	Supported Bandwidth: 18Gbps Maximum Resolution: 4096×2160@60Hz 4:4:4 8bit Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB Minimum Bend Radius: 48mm (1.89in) Operating Temperature: -10°C – 80°C (14°F – 176°F) Storage Temperature: -10°C – 80°C (14°F – 176°F) ATC Approved: Yes
  Miscellaneous	Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH, UL, ATC
  Purchasing Information	No.: 36961 EAN: 4002888369619
