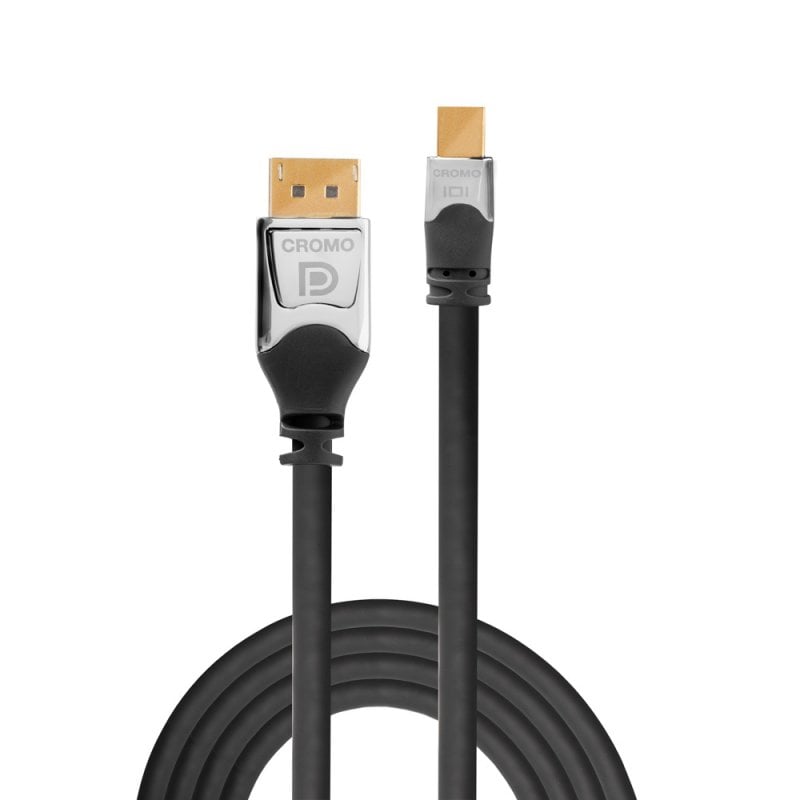

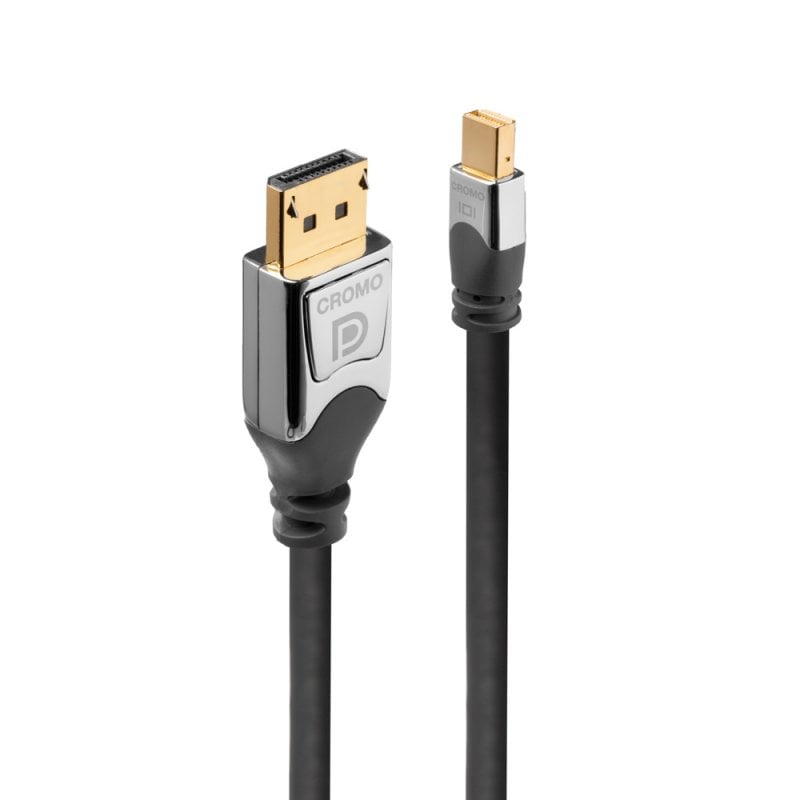

Lindy 0.5m CROMO Mini DisplayPort to DisplayPort Cable | 36310

• Description
• Specifications
• Downloads

• Lindy 0.5m CROMO Mini DisplayPort to DisplayPort Cable | 36310

  CROMO Mini DisplayPort To DisplayPort Cables feature triple shielded construction with 32AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.


  UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. CROMO DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

  CROMO cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.

  Package Contents
  0.5m CROMO Mini DP to DP Cable

• Category	Details
  Connectors
  Connector A	Mini DisplayPort 20 Pin Male
  Connector B	DisplayPort 20 Pin Male
  Housing Material	Chrome plated, ABS
  Connector Coating	3μm Gold
  Pin Construction	Phosphor bronze
  Pin Coating	15μm Gold
  Dimensions	Mini DP: 10 x 7 x 32mm, DP: 20 x 12 x 35mm (WxDxH)
  Cable Construction
  Length	0.5m
  Standard	1.2 compatible
  Colour	Grey
  Type	Round
  Jacket Diameter	5.5mm
  Jacket Material	PVC
  Conductor Material	Tinned copper
  Leading	32AWG
  Shielding	Copper braid, 85% coverage
  Technical Information
  Supported Bandwidth	17.28Gbps in HBR2 mode
  Maximum Resolution	4096x2160p 60Hz including 3D
  Maximum Colour Depth	UHD up to 4K 60Hz (4:4:4 10bpc)
  Nominal Damping	<5dB at 300kHz-825MHz, <12dB at 2.475GHz-4.125GHz, <20dB at 4.125GHz-5.1GHz
  Minimum Bending Radius	55mm
  Operating Temperature	-20°C to 80°C
  Storage Temperature	-25°C to 85°C
  Available Lengths	0.5m – 5m
