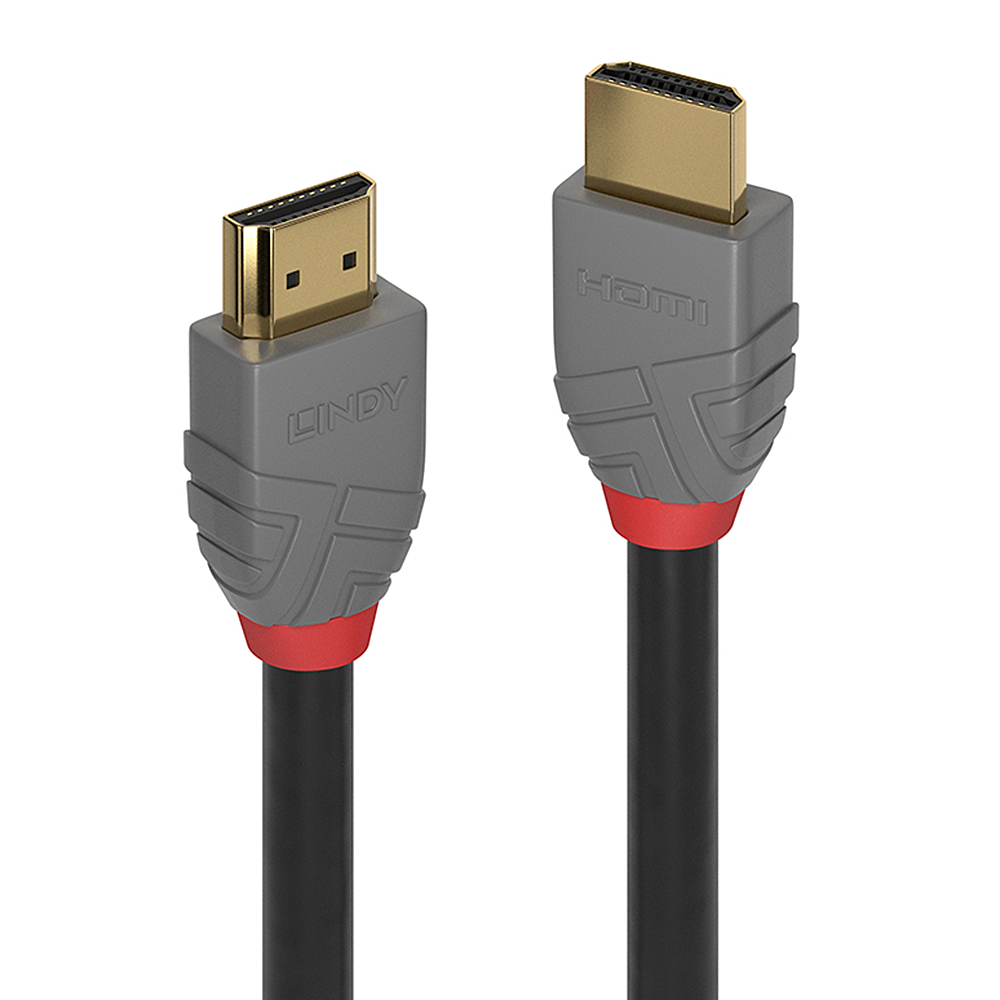

• Lindy 0.3m HDMI High Speed HDMI Cable, Anthra Line | 36960

  Professional choice High Speed HDMI 2.0 cable for commercial and high performance AV and IT installations

  Supports UHD resolutions up to 4096×2160@60Hz and HDTV resolutions up to 1080p

  Robust PVC housing, 24K gold plated connectors and contacts

  Triple shielded cable, corrosion resistant tinned copper 30AWG conductors

  HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; HDMI ATC certified

  10 year warranty

  From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

  Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

  UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

  The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.

  Anthra Line HDMI cables are available in lengths from 0.3m to 5m.

• Category	Details
  Connectors
  Connector A	HDMI Type A Male
  Connector B	HDMI Type A Male
  Housing Material	PVC
  Connector Plating	24K Gold 3µm
  Pin Construction	Phosphor Copper
  Pin Plating	24K Gold 3µm
  Dimensions (WxDxH)	20×34.2×10.9mm (0.79×1.35×0.43in)
  Cable Construction
  Length	0.3m (1ft)
  Standard	High Speed HDMI with Ethernet
  Colour	Black
  Type	Round
  Jacket Diameter	6mm (0.24in)
  Jacket Material	PVC
  Conductor Material	Copper
  Conductor Gauge	30AWG
  Shielding	Copper Braid, 65%
  Specifications
  Supported Bandwidth	18Gbps
  Maximum Resolution	4096×2160@60Hz 4:4:4 8bit
  Nominal Attenuation	300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
  Minimum Bend Radius	48mm (1.89in)
  Operating Temperature	-30°C – 80°C (-22°F – 176°F)
  Storage Temperature	-10°C – 85°C (14°F – 185°F)
  ATC Approved	Yes
  Miscellaneous
  Packaging Type	Polybag
  Warranty (Years)	10
  Certificated	RoHS, REACH, UL, ATC
  Purchasing Information
  No.	36960
  EAN	4002888369602
  Other Lengths Available	36961 – 0.5m (1.64ft), 36962 – 1m (3.28ft), 36963 – 2m (6.56ft), 36964 – 3m (9.84ft), 36965 – 5m (16.44ft)
