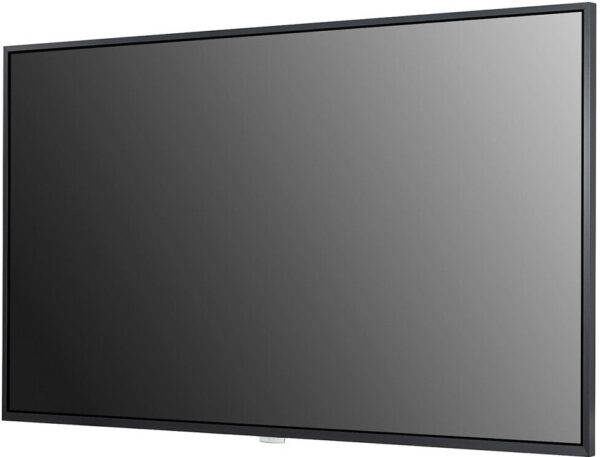

LG UM3DG Series / 65UM3DG 65″ 4K Ultra HD Smart Digital Signage Display

• Description
• Specifications
• Warranty
• Downloads

• LG UM3DG Series / 65UM3DG 65″ 4K Ultra HD Smart Digital Signage Display


  ULTRA HD Resolution
  With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion

  High Efficiency Video Coding
  The UM3DG series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.

  Narrow Bezel & Slim Depth
  The UM3DG series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

  Built-in Speaker
  Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

  IP5x Certified Design
  The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

  15° Tilting Installation
  When a display is installed at high places, it is usually tilted for the user’s comfort viewing. In consideration of this, the UM3DG series supports the installation with 15 degrees of tilt*.

  Remote Monitoring
  The UM3DG series can email notifications to users when there is a problem, such as tilting of the product by external impact, so users can operate the product in a safer manner as they can get the information about the problem right away.

  Simple Accessibility
  Unlike other models where various buttons have to be pressed for control, the UM3DG series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, etc.

  High-Performance with webOS
  Built-in SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

  Various Sensor Applications
  LG webOS smart signage platform easily supports connections with external sensors via USB plug-in. The overall cost for maintenance is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.

  Compatibility with AV Control System
  The UM3DG series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

  Compatibility with Video Conference System
  For the optimum visual meeting, the UM3DG series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

• Category	Specification
  PANEL
  Screen Size (Inch)	65
  Panel Technology	IPS
  Backlight Type	Edge
  Aspect Ratio	16:9
  Native Resolution	3840 x 2160 (UHD)
  Refresh Rate	60Hz
  Brightness	350nit (Typ.)
  Contrast Ratio	1,200:1
  Dynamic CR	500,000:1
  Color Gamut	BT709 95%
  Viewing Angle (H x V)	178º x 178º
  Color Depth	1.07 Billion colors
  Response Time	8ms (G to G)
  Surface Treatment (Haze)	Haze 1%
  Life Time	50,000Hrs (Min.)
  Operation Hours	18/7
  Portait / Landscape	YES / YES
  Transparency	N/A
  QWP (Quarter Wave Plate)	N/A
  CONNECTIVITY
  HDMI In	YES (3ea)
  HDMI In (HDCP Ver.)	2.2/1.4
  DP In	NO
  DVI-D In	NO
  RGB In	NO
  Audio In	NO
  RS232C In	YES
  RJ45(LAN) In	YES (1ea)
  IR In	YES
  USB In	USB2.0 Type A (1ea)
  HDMI Out	NO
  DP Out	NO
  Audio Out	YES
  Touch USB	NO
  External Speaker Out	NO
  RS232C Out	YES
  RJ45(LAN) Out	NO
  IR Out	NO
  Daisy Chain	NO
  MECHANICAL SPECIFICATION
  Bezel Color	Black
  Bezel Width	T/R/L: 9.9mm, B: 14.4mm
  Weight (Head)	28.2Kg
  Packed Weight	35.0Kg
  Monitor Dimensions (W x H x D)	1453.3 x 832.8 x 39.9mm (without LG Logo)
  Monitor Dimension with Stand (W x H x D)	1453.3 x 893.1 x 290.0mm
  Handle	NO
  VESA Standard Mount Interface	300 x 300 mm
  Carton Dimensions (W x H x D)	1600.0 x 1095.0 x 175.0mm
  Weight (Head+Stand)	28.8Kg
  FEATURE – HARDWARE
  Internal Memory (eMMC)	8GB
  Wi-Fi/BT (Built-in)	YES
  Temperature Sensor	YES
  Auto Brightness Sensor	YES
  Pixel Sensor	NO
  Proximity Sensor	NO
  Current Sensor	NO
  BLU Sensor	NO
  Humidity Sensor	NO
  Acceleration(Gyro) Sensor	NO
  Power Indicator	NO
  Local Key Operation	YES
  FAN (Built-in)	NO
  FEATURE – SOFTWARE
  OS Ver. (webOS)	webOS 4.1
  Local Contents Scheduling	YES
  Group Manager	YES
  USB Plug & Play	YES
  Fail over	YES
  Booting Logo Image	YES
  No Signal Image	YES
  RS232C Sync	YES
  Local Network Sync	YES
  Backlight Sync	NO
  PIP	NO
  PBP	NO
  Screen Share	YES
  Video Tag	YES (4 Video Tag)
  Play via URL	YES
  Screen Rotation	YES
  External Input Rotation	YES
  Gapless Playback	YES
  Tile Mode Setting	YES
  Setting Data Cloning	YES
  SNMP	YES
  ISM Method	YES
  Auto Set ID	YES
  Status Mailing	YES
  Control Manager	YES
  Cisco Certification	YES
  Crestron Connected	YES
  Smart Energy Saving	YES
  PM mode	YES
  Wake on LAN	YES
  Network Ready	YES
  Beacon	YES
  HDMI-CEC	YES
  SI Server Setting	YES
  webRTC	YES
  Pro:Idiom	YES
  Brightness Compensation	NO
  W/B Setting by Grey scale	NO
  Scan Inversion	NO
  ENVIRONMENT CONDITIONS
  Operation Temperature	0 °C to 40 °C
  Operation Humidity	10 % to 80 %
  POWER
  Power Supply	AC 100-240V~, 50/60Hz
  Power Type	Built-in Power
  POWER CONSUMPTION
  Typ.	105W
  Max.	160W
  BTU (British Thermal Unit)	359 BTU/Hr(Typ.), 546 BTU/Hr(Max.)
  Smart Energy Saving (70%)	74W
  DPM	0.5W
  Power off	0.5W
  SOUND
  Speaker (Built-in)	YES (10W x 2)
  CERTIFICATION
  Safety	CB / NRTL
  EMC	FCC Class “A” / CE / KC
  ERP / Energy Star	YES(NewErP) / YES
  ePEAT(US only)	NO
  OPS COMPATIBILITY
  OPS Type compatible	NO
  OPS Power Built-in	NO
  SOFTWARE COMPATIBILITY
  SuperSign CMS	YES
  SuperSign Control+	YES
  SuperSign WB	YES
  SuperSign Cloud	NO
  Promota	YES
  Mobile CMS	YES
  Connected Care	YES
  LANGUAGE
  OSD	English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
  ACCESSORY
  Basic	Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
  Optional	Stand(ST-653T)
  SPECIAL FEATURE
  Overlay Touch Compatibility	N/A
  Smart Calibration	N/A
  Tilt (Face up)	N/A
  Tilt (Face down)	Max. 15 degree
  IP Rating	IP5X
  Conformal Coating (Power Board)	YES
  Power Protection	N/A
  Direct Sunlight	N/A

• Standard Warranty for LG Products
  The estimated standard warranty for LG products varies.
  Please refer to the below guide, which references general warranty periods beginning from the original purchase date.
  Please note: the below is intended as a guide only, and T&Cs may vary depending on your model and product use.

  Warranty for LG Monitors

  Labour : 24 Months
  Parts : 24 Months
  NOTE: The manufacturer warranty period is the same for consumer and commercial usage.

  Warranty Terms and Conditions:
  Replacement Unit or Parts may be new or remanufactured service exchanges that are equivalent to new in performance and reliability.
  The LG warranty does not cover any of the following actions:
  a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear.
  b) Cost relating to transport, removal or installation of the product.
  c) Misuse, including failure to use the product for its normal purposes or incorrect installation.
  d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper or insufficient ventilation or any other cause beyond the reasonable control of LG.
  The LG manufacturer warranty is only valid when accompanied by the original invoice, sales receipt or confirmation from LGE UK of the warranty period.

  If the serial number is defaced, missing or illegible, the warranty with LGE UK is null and void. In this case you should contact the dealer from whom the product was purchased.
  During the repair process it is possible that any stored data may be lost so it is strongly recommended that you backup any important data and media files before requesting a service. LG will not be responsible for any data corruption or loss however so caused during the repair process or failure of the customer to ensure that all data is properly backed up.
