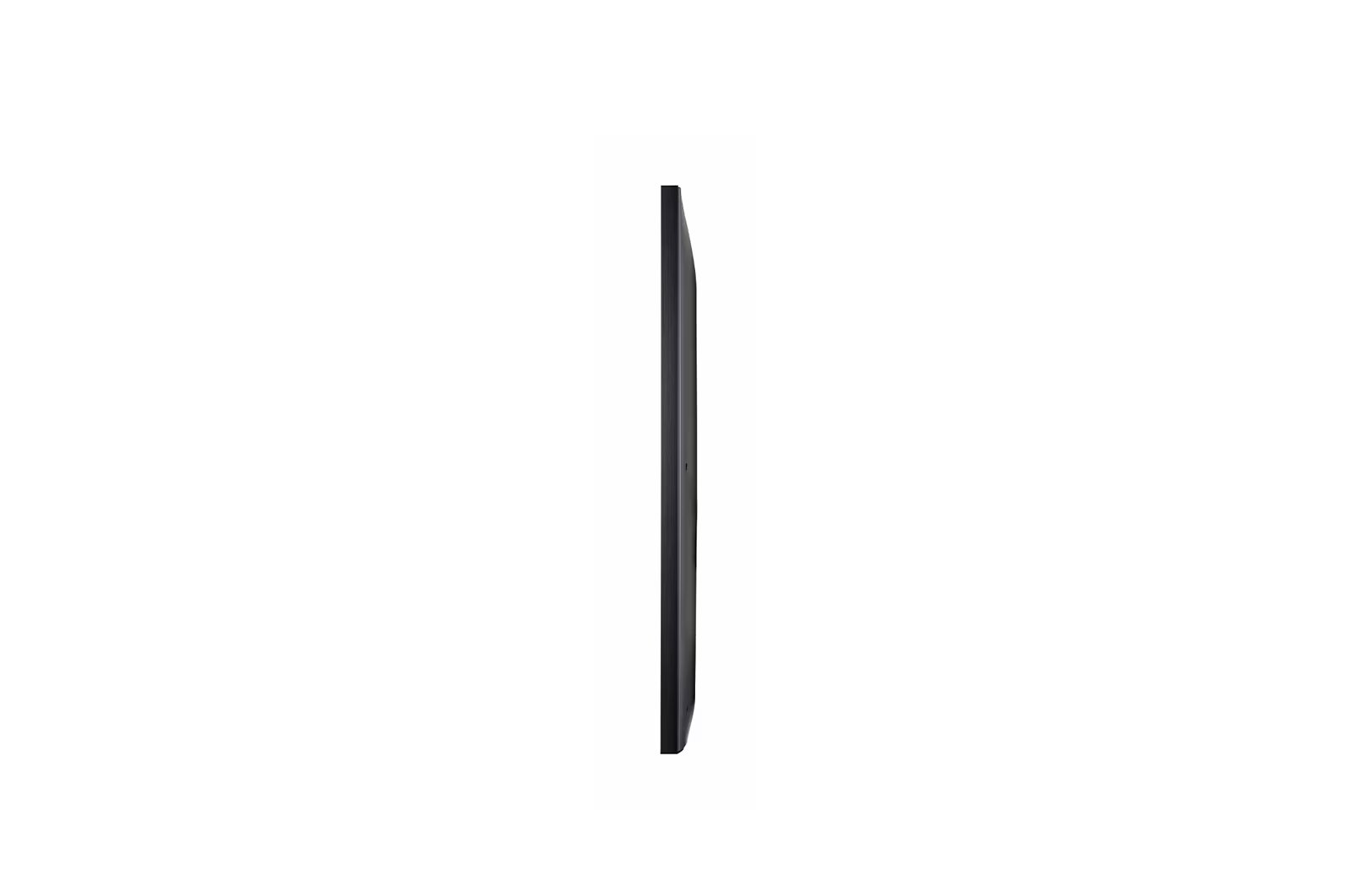

LG 75UH5J-H 75″ 4K Smart High Haze Ultra HD Signage Display

LG 75UH5J-H

75″ 4K Smart High Haze Ultra HD Signage Display

• Description
• Specifications
• Warranty

• Brightness(Typ.) : 500 cd/m²
  Surface Treatement (Haze) : 28%
  Bezel : 14.9 mm (Even bezel)

  New High Haze UHD
  Standard Signage

  Proper Display Brightness
  With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.

  High-Performance with webOS
  LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

  Conformal Coating
  In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.

  Mobile Content Management
  You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.

  IP5x Certified Design
  The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

  Compatible with AV Control System
  The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.


• Category	Specification
  Panel	Screen Size: 75″, Panel Technology: IPS, Back Light Type: Edge, Aspect Ratio: 16 : 9, Native Resolution: 3840 x 2160 (UHD), Refresh Rate: 120Hz, Brightness: 500nit (Typ.), Contrast Ratio: 1,100:1, Dynamic CR: 1,000,000:1, Color gamut: NTSC 72%, Viewing Angle(H x V): 178 X 178, Color Depth: 10bit(D), 1.07Billion colors, Response Time: 6ms (G to G), Surface Treatment(Haze): Haze 28%, Life time: 50,000Hrs (Typ.), Operation Hours (Hours/Day): 24/7, Portrait / Landscape: Yes / Yes
  Connectivity	Input: HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1), Output: HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
  Mechanical Specification	Bezel Color: Black, Bezel Width: Even bezel : 14.9mm, Weight(Head): 41.5Kg, Packed Weight: 51.2Kg, Monitor Dimension(W x H x D): 1682.4 x 960.3 x 57.9mm (without Handle and LG Logo), Carton Dimensions(W x H x D) (Box outer size): 1816 x 1123 x 228mm, Handle: Yes, VESATM Standard Mount Interface: 600 x 400
  Key Features	Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom)
  Environment Conditions	Operation Temperature: 0 °C to 40 °C, Operation Humidity: 10 % to 80 %
  Power	Power Supply: AC 100-240V~, 50/60Hz, Power Type: Built-In Power, Power Consumption: Typ.: 180W (TBD), Max.: 260W (TBD), BTU (British Thermal Unit): 614.25 BTU/Hr(Typ.), 887.25 BTU/Hr(Max) (TBD), Smart Energy Saving(~70%): 126W (TBD), DPM: 0.5W, Power off: 0.5W, Speaker: Yes
  Certification	Safety: CB / NRTL, EMC: FCC Class “A” / CE / KC, ErP / Energy Star: Yes (NewErP) / Yes (TBD)
  OPS Compatibility	OPS Type Compatible: Yes
  Software Compatibility	SuperSign CMS: Yes, SuperSign Control / Control+: Yes / Yes, SuperSign WB: Yes, SuperSign Media Editor: Yes, Promota: Yes (Not available for EU/CIS), Mobile CMS: Yes, Signage 365 Care: Yes
  Language	OSD: English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
  Accessory	Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Optional: OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)

• Warranty
  3 year on site swap out as standard – see further options on the warranties tab below

  LG Electronics guarantees free repair service to its products within the warranty period through its Authorized Service Centers. Each LG product has a different set of warranty conditions, so please refer to information below.

  Guidance for Standard Warranties
  Standard Warranty for LG Products
  The estimated standard warranty for LG product varies. Please refer to the below guide, which references general warranty periods beginning from the original purchase date.
  Please note: the below is intended as a guide only, and T&Cs may vary depending on your model and product use.

  Guidance for Warranty Period
  Estimated standard for warranty period
  LG electronics accomplish the product warranty according to local warranty conditions.
  Part warranty period
  Parts warranty period means the quality guaranteed for the parts which are either within the product itself, or which constitute part of the product package.
  General parts warranty period – Basically, it make a rule to be same as the product warranty period. ( If the part is selected by core item, it will be applied based on the special criteria)

  Product Name Basic Warranty
  Hotel TV 3 Years*

  Warranty based on product sold in UK market

  *Excludes OLED Hotel TV Models (65WU960H/55EU961H/65EU961H)
  ** Commercial Pro and Hotel TV basic warranty extension to 3 years, applies for products purchased from 2019 onwards

  Monitor Signage 3 Years
  Commercial Pro 3 Years
