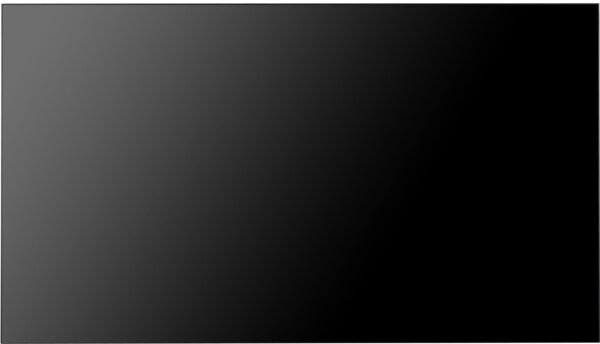

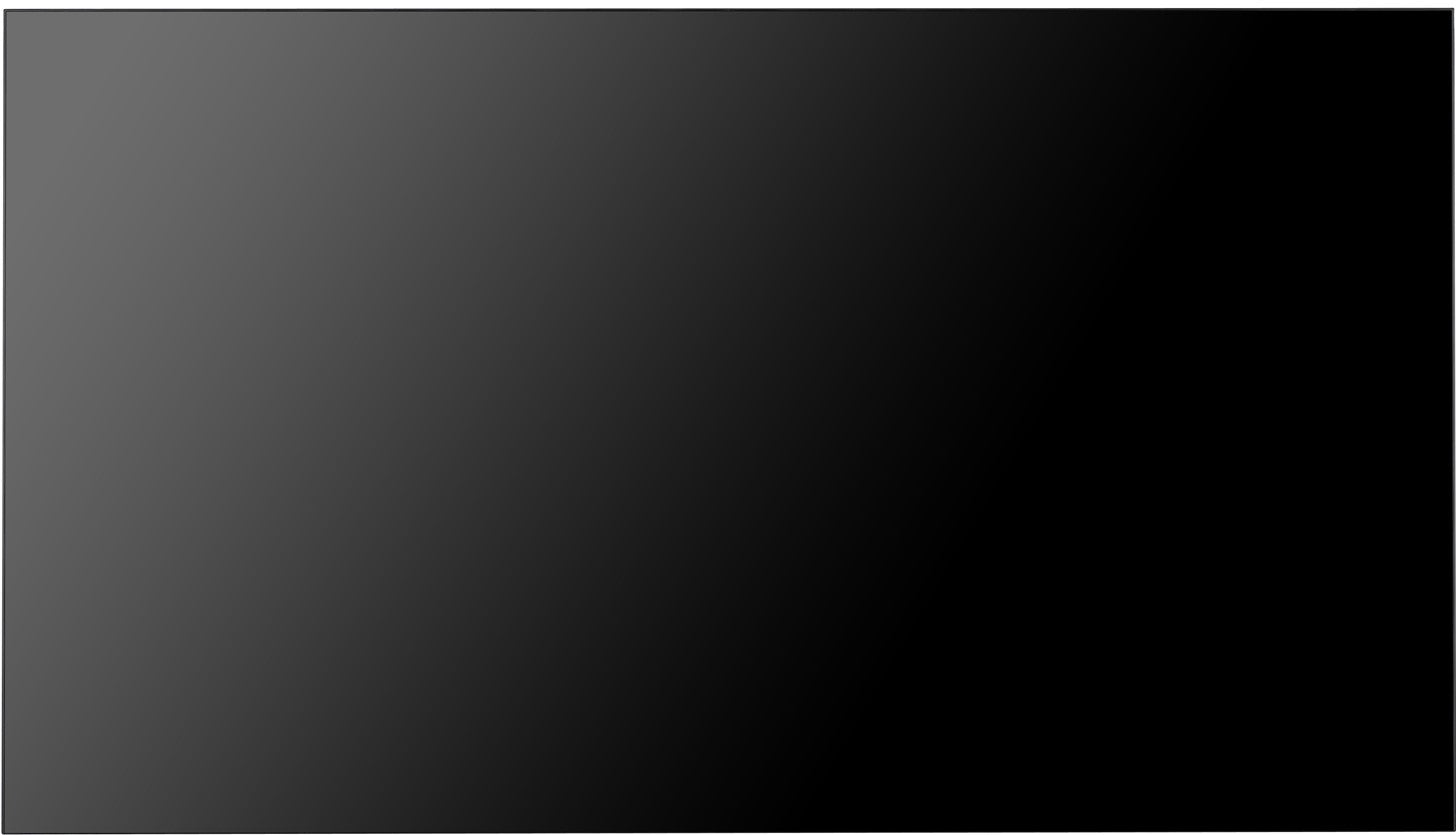

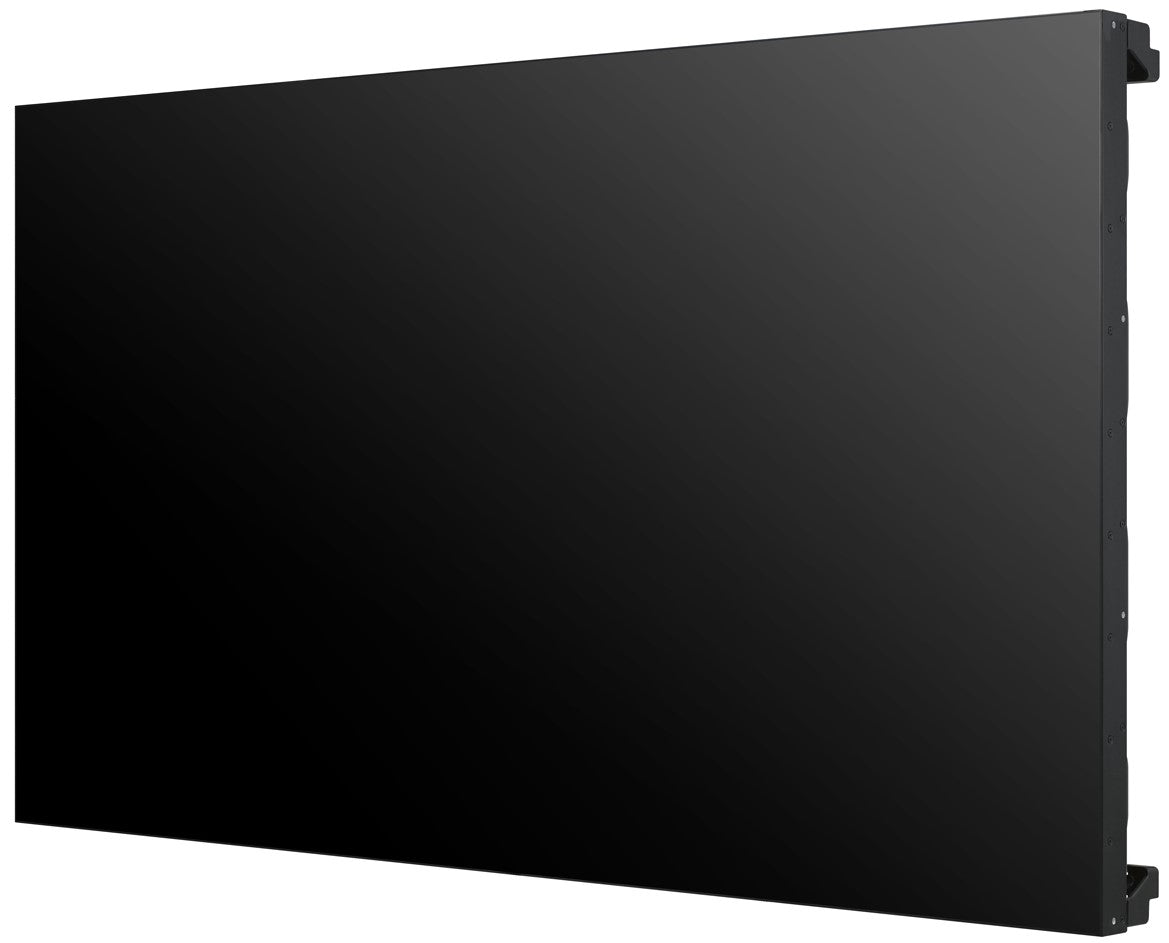

LG 55VL7F-A 55″ Full HD Ultra Slim Bezel Hi-Bright Video Wall Display
Incredible Immersion with Ultra-Narrow Bezel
The VL7F series provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its high brightness delivers clear and vivid content even under bright lighting.Achieving Incredible Immersion
Seamless Large Screens with Ultra-Narrow Bezel
The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.Achieving Incredible Immersion
Image Gap Reduction
The VL7F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.Vivid and Dynamic Picture Quality
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL7F series is high enough to display vivid colors throughout the screen with no distortion.Vivid and Dynamic Picture Quality
Wider Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL7F series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.User Convenience
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.User Convenience
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL7F series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.User Convenience
User-Friendly Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.User Convenience
Intuitive GUI
The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances. -
Panel Screen Size 55″ Panel Technology IPS Aspect Ratio 16 : 9 Brightness (Typ., cd/m²) 700 Contrast Ratio 1,200:1 Dynamic CR 500,000 : 1 Viewing Angle (H x V) 178 x 178 Response Time 8 ms (G to G) Surface Treatment 3% Life Time (Typ.) 60,000 Hrs Operation Hours 24 Hrs Orientation Landscape & Portrait Mechanical Specification Bezel Color Black Bezel Width 2.25 mm (T/L) / 1.25 mm(B/R) Weight (Head) 20.3 kg Packed Weight 33 kg Monitor Dimensions (W × H × D) 1,213.4 x 684.2 x 93.1 mm Carton Dimensions (W × H × D) 1,353 x 980 x 263mm Handle Yes VESA™ Standard Mount Interface 600 x 400 mm Environment Conditions Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 % Power Power Supply 100-240V~, 50/60Hz Power Type Built-In Power Power Consumption Typ./Max. 165 W / 195 W Smart Energy Saving 85 W Certification Safety CB / NRTL EMC FCC Class “A” / CE / KC ErP Yes (EU Only) Media Player Compatibility OPS type compatible No Software Compatibility Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Control/Control+ Connectivity Input HDMI(2), DP, DVI-D, Audio, USB Output DP, Audio External Control RS232C In/out, RJ45(LAN) In, IR In Accessory Basic Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual Optional Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V) -
Standard Warranty for LG Products
The estimated standard warranty for LG products varies.
Please refer to the below guide, which references general warranty periods beginning from the original purchase date.
Please note: the below is intended as a guide only, and T&Cs may vary depending on your model and product use.Warranty for LG Monitors
Labour : 24 Months
Parts : 24 Months
NOTE: The manufacturer warranty period is the same for consumer and commercial usage.Warranty Terms and Conditions:
Replacement Unit or Parts may be new or remanufactured service exchanges that are equivalent to new in performance and reliability.
The LG warranty does not cover any of the following actions:
a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear.
b) Cost relating to transport, removal or installation of the product.
c) Misuse, including failure to use the product for its normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper or insufficient ventilation or any other cause beyond the reasonable control of LG.
The LG manufacturer warranty is only valid when accompanied by the original invoice, sales receipt or confirmation from LGE UK of the warranty period.If the serial number is defaced, missing or illegible, the warranty with LGE UK is null and void. In this case you should contact the dealer from whom the product was purchased.
During the repair process it is possible that any stored data may be lost so it is strongly recommended that you backup any important data and media files before requesting a service. LG will not be responsible for any data corruption or loss however so caused during the repair process or failure of the customer to ensure that all data is properly backed up. -
Description Downloads LG 55VL7F-A 55″ Full HD Ultra Slim Bezel Hi-Bright Video Wall Display Spec Sheet Downloads
