LG 55TR3DK-B.AUEQ 55” 4K UHD 3840 x 2160 Interactive Display Supply

LG 55TR3DK-B.AUEQ 55” 4K UHD 3840 x 2160 Interactive Display

• Description
• Specifications
• Warranty
• Downloads

• LG 55TR3DK-B.AUEQ 55” 4K UHD 3840 x 2160 Interactive Display

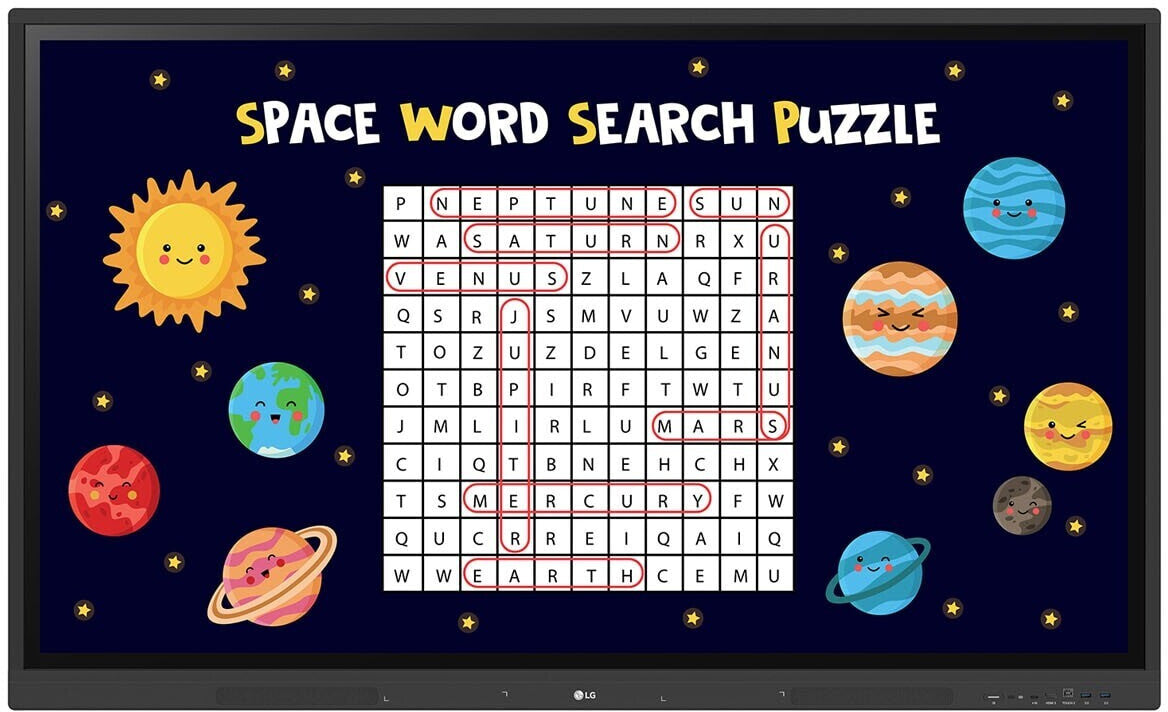

  Various Teaching Templates
  TR3DK series offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with TR3DK series, and created resources can be easily shared with others through QR codes.

  Multi-touch
  TR3DK Digital Board can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

  Easy to Save / Import / Export
  TR3DK series include simple import and export functionality. Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

  Wireless ScreenShare
  LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

  LG ConnectedCare DMS
  LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of TR3DK Digital Board installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

  Bluetooth Connectivity
  TR3DK Digital Board supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

  C-type Connection
  USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

  Front Connectivity Design
  TR3DK Digital Board features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered easier with more immersive sound.

  Built-in OPS Slot
  TR3DK Digital Board supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the TR3DK Digital Board without the hassle of connecting to an external desktop, offering you more expanded functions.

  Smart Viewing
  The Smart Viewing feature of TR3DK Digital Board enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).

  Power Saving
  When a device doesn’t receive an external input signal for a specific amount of time set by the user, the device goes into standby mode. Devices can also be automatically turned on or off at specific time or day set by the user, which contributes to save energy.

• CATEGORY	DETAILS
  PRODUCT SUMMARY
  Brand	LG
  SKU	10392480
  Manu Part #	55TR3DK-B.AUEQ
  EAN	8806091832917
  FEATURES
  Brightness	440 nit (Max.), 390 nit (Typ.)
  Resolution	3,840 × 2,160 (UHD)
  Multi-Touch Point	40 Points (Max.)
  NETWORK
  Ethernet LAN	10,100,1000 Mbit/s
  Bluetooth	Yes
  Wi-Fi	Yes
  Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  Bluetooth version	5
  Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
  PORTS & INTERFACES
  Ethernet LAN (RJ-45) ports	2
  HDMI ports quantity	3
  Line-in	Yes
  VGA (D-Sub) ports quantity	1
  Line-out	Yes
  HDCP version	2.2
  DISPLAY
  Viewing angle, horizontal	178°
  Display diagonal	139.7 cm (55″)
  HD type	4K Ultra HD
  Response time	8 ms
  Display brightness	390 cd/m²
  Panel type	IPS
  Maximum refresh rate	60 Hz
  Contrast ratio (typical)	1200:1
  Touchscreen	Yes
  Display resolution	3840 x 2160 pixels
  Colour gamut	72%
  Contrast ratio (dynamic)	50000:1
  Viewing angle, vertical	178°
  WEIGHT & DIMENSIONS
  Depth	774 mm
  Height	87 mm
  Width	1271 mm
  Weight	26.1 kg
  PACKAGING DATA
  Package depth	859 mm
  Package width	1401 mm
  Package height	220 mm
  Package weight	34.5 kg
  POWER
  Power consumption (max)	395 W
  Power consumption (typical)	170 W
  AC input voltage	100 – 240 V
  AC input frequency	50 – 60 Hz
  Power consumption (off)	0.5 W
  OPERATIONAL CONDITIONS
  Operating temperature (T-T)	0 – 40 °C
  Operating relative humidity (H-H)	10 – 90%
  AUDIO
  Built-in speaker(s)	Yes
  Number of built-in speakers	2
  Speaker power	15 W
  COMPUTER SYSTEM
  Graphics card	Mali-G52 MP2
  RAM capacity	32 GB
  SUSTAINABILITY
  Sustainability certificates	ENERGY STAR
  ERGONOMICS
  VESA mounting	Yes
  Panel mounting interface	400 x 200 mm
  Product colour	Black

• One-year Warranty

• Description	Downloads
  LG 55TR3DK-B.AUEQ 55” 4K UHD Interactive Display DataSheet	Downloads
