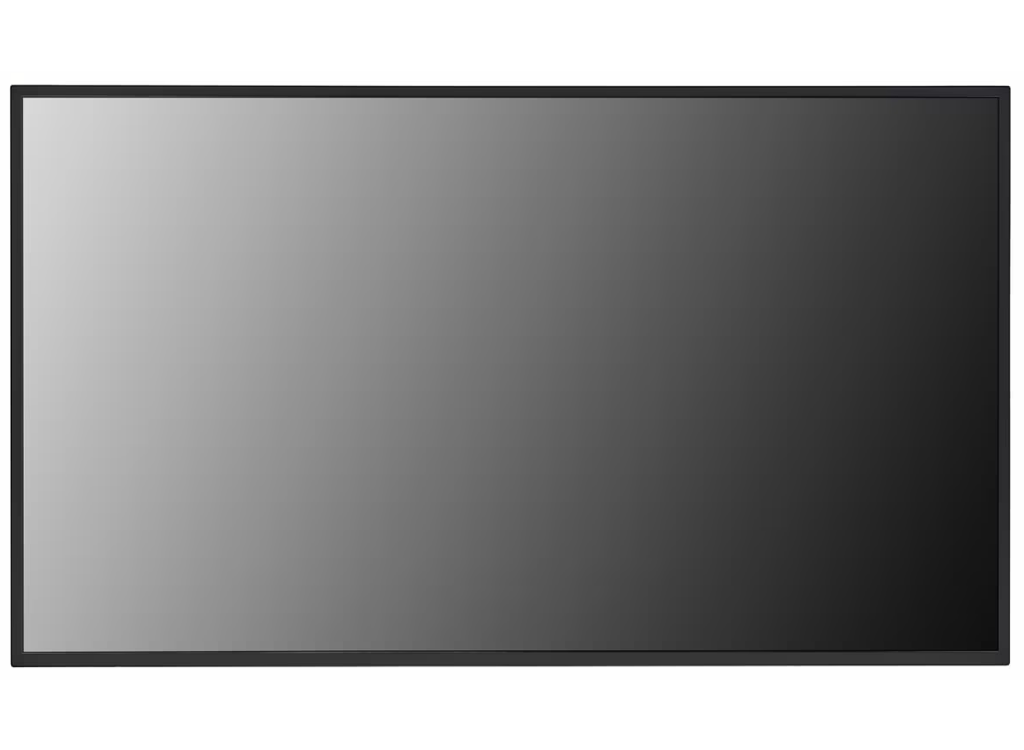

LG 55TNF5J-B 55″ In-Cell Touch Open Frame Signage

• Description
• Specifications

• LG 55TNF5J-B 55″ In-Cell Touch Open Frame Signage

  New In-Cell Touch Open Frame for Optimal Customization

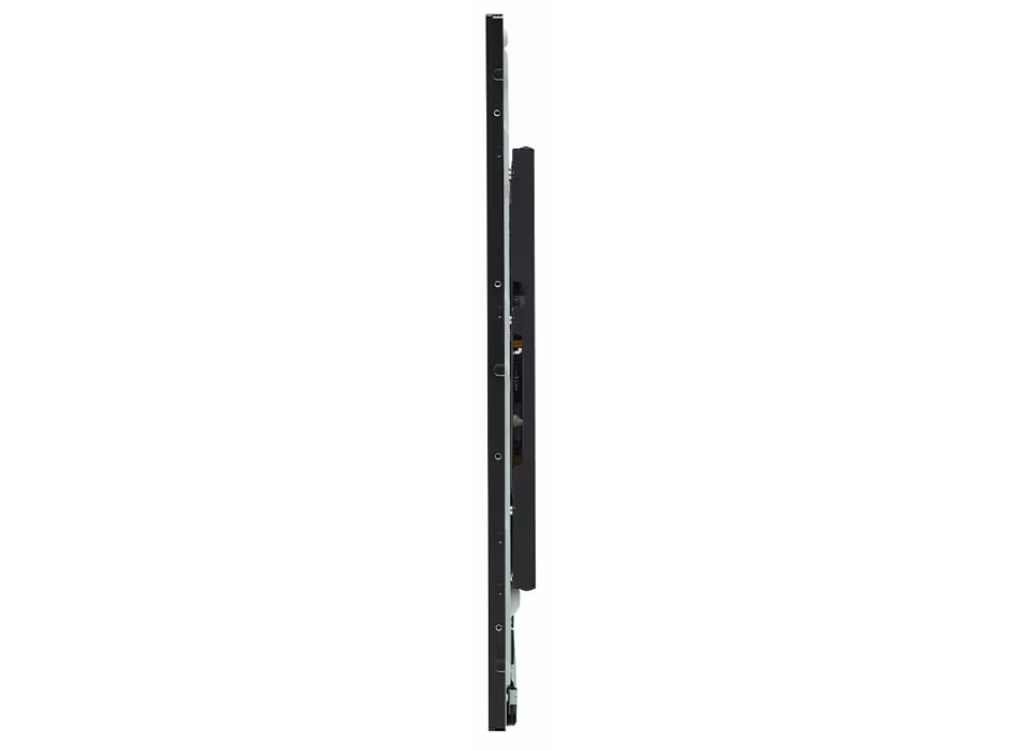

  Slim & Light
  The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).


  Clear Picture Quality
  Compared to general touch products, TNF5J implements clear picture quality without milk effects caused by additional touch sensor film parts.


  Design Flexibility
  By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.


  24hrs / 7days
  TNF5J’s excellent durability allows for use in kiosks that require a full day of operation.


  Wide Viewing Angle
  IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.


  45-degree Tilt
  (Face up)
  Installation Possible
  When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.


  10 Points of
  Multi-Touch
  The TNF5J provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.


  High-Performance with
  webOS 6.0
  webOS 6.0, upgraded in SoC* and web engine, is available on TNF5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

• Category	Details
  LANGUAGE	English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic, Polish
  SOUND	Speaker (Built-in): NO
  CERTIFICATION	Safety: CB / NRTL EMC: FCC Class “A” / CE / KC ePEAT (US only): NO ERP / Energy Star: YES / NO
  DEDICATED FEATURE – TOUCH	Response Time: 90ms ↓ Accuracy: 3.5mm Available Object Size for Touch: Ø6 mm ↑ Interface: USB2.0 Multi Touch Point: Max. 10 Points Operating System Support: Windows 10
  ENVIRONMENT CONDITIONS	Operation Humidity: 10% to 80% Operation Temperature: 0 °C to 40 °C
  MECHANICAL SPECIFICATION	Bezel Width: T/R/L/B: 9.1/9.1/9.1/16.1mm Bezel Color: Black Carton Dimensions: 1360 x 835 x 175mm Monitor Dimensions: 1231.8 x 709.6 x 39.2mm Packed Weight: 21.6Kg VESA Standard Mount Interface: 300 x 300 mm Weight (Head): 16.8Kg
  OPS COMPATIBILITY	OPS Power Built-in: NO OPS Type compatible: NO
  POWER	Power Type: Built-In Power Power Supply: AC 100-240V~, 50/60Hz
  ACCESSORY	Optional: NO Basic: Power Cord 1.55m, USB Cable(Type A-Type B) 1.8m, User Manual, QSG, Remote Controller (includes battery 2ea), RS232C Gender, IR Receiver
  SOFTWARE COMPATIBILITY	Connected Care: YES Mobile CMS: YES Promota: NO SuperSign Cloud: YES SuperSign CMS: YES SuperSign Control+: YES SuperSign WB: NO
  SPECIAL FEATURE	Power Protection: N/A Conformal Coating (Power Board): YES IP Rating: N/A Overlay Touch Compatibility: N/A Tilt (Face up): Max. 45 degrees
  PANEL	Contrast Ratio: 1,000:1 Aspect Ratio: 16:9 Brightness: 450nit (Typ.) Color Depth: 1.07 Billion colors Native Resolution: 3840 x 2160 (UHD)
  FEATURE – HARDWARE	Local Key Operation: NO Acceleration(Gyro) Sensor: YES Temperature Sensor: YES
  CONNECTIVITY	HDMI In: YES (2ea) RJ45(LAN) In: YES (1ea) USB In: USB2.0 Type A (1ea)
  FEATURE – SOFTWARE	Pro:Idiom: YES Backlight Sync: NO Brightness Compensation: NO
  POWER CONSUMPTION	BTU: 433 BTU/Hr(Typ.), 580 BTU/Hr(Max.) Max: 170W Typ: 127W
