Lenovo Thinksystem ST550 Tower 2.2GHz 32GB RAM Server | 7X10A0F5EA

• Description
• Specifications
• Downloads

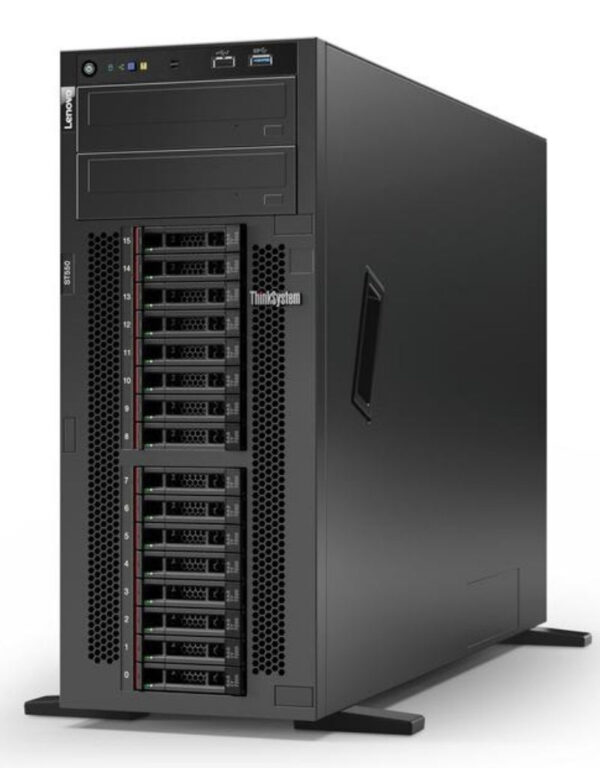

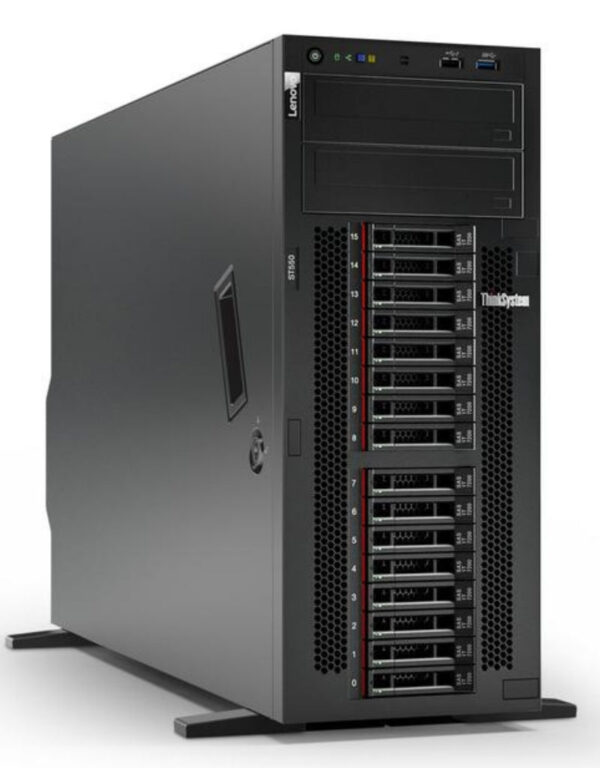

• Lenovo Thinksystem ST550 Tower 2.2GHz 32GB RAM Server


  Energy-efficient design
  Certified by ENERGY STAR, this Lenovo ThinkSystem ST550 server exemplifies efficiency in operation, reducing power consumption and lowering energy costs without sacrificing performance.

  Robust expansion capabilities
  With a variety of expansion slots including PCIe 3. 0 x16, this server offers ample room for growth and customization, allowing for full-length, full-height, and double-width expansions to meet the demands of evolving business needs.


  Versatile connectivity options
  Equipped with multiple USB 3. 0 and USB 2. 0 ports, along with VGA and dual Gigabit Ethernet ports, the ST550 ensures a wide range of connectivity options for various peripherals and network configurations.

  Advanced memory support
  Supporting up to 12 DIMM slots with features like Memory Mirroring and Memory Sparing, the server ensures data integrity and reliability, making it ideal for critical applications that demand continuous uptime.

  Powerful processing capabilities
  Powered by an Intel Xeon Silver processor and capable of supporting a second processor, the ST550 delivers exceptional performance and scalability, making it suitable for a wide range of enterprise workloads.

• Attribute	Details
  Front Accessible Bays Qty	2
  Type	Server
  Hot-Swap Bays Qty	8
  Server Scalability	2-way
  Product Form Factor	Tower – 4U
  Embedded Security	Trusted Platform Module (TPM 1.2 and TPM 2.0)
  Localisation	Region: EMEA
  Bays	2 x 5.25″ x 1/2H (total/free), 8 x hot-swap 2.5″ (total/free)

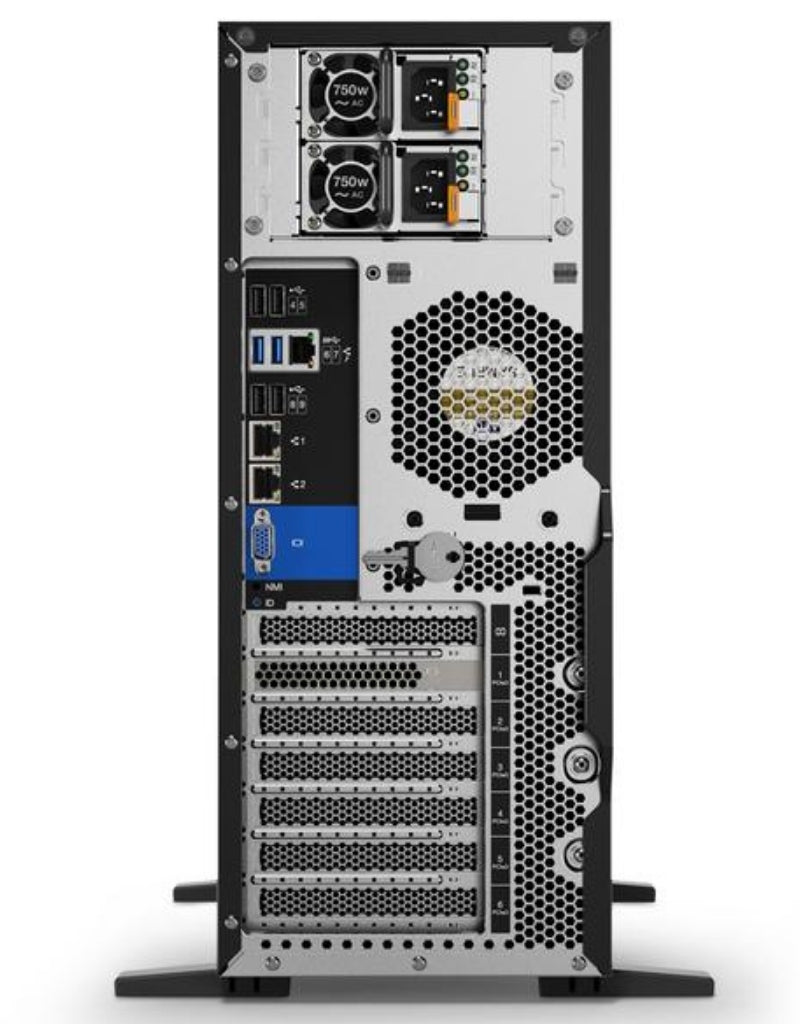

  Interfaces	4 x USB 3.0, 5 x USB 2.0, VGA, management RJ-45, 2 x LAN RJ-45
  Slots	1 x PCIe 3.0 x8, 5 x PCIe 3.0 x16
  Service & Support	Limited 3 years on-site warranty, next business day response
  Effective Memory Speed	2400 MHz
  Configuration Features	1 x 32 GB, DIMM 288-pin, DDR4 SDRAM – ECC, rated 2933 MHz
  Installed Size	32 GB installed / 768 GB max
  Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
  Ethernet Ports	2 x Gigabit Ethernet
  Remote Management Protocol	SNMP 3, CIM, IPMI 2.0
  Ethernet Controller	Intel X722
  Remote Management Controller	XClarity Controller (XCC) Enterprise
  Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
  Security Slot Type	Kensington security slot
  Compliant Standards	Multiple international standards including TUV GS, RoHS, ENERGY STAR, etc.
  Installed Qty (Power)	1
  Max Supported Qty (Power)	2
  Power Redundancy	Optional
  Device Type (Power)	Power supply – hot-plug
  Power Provided	750 Watt
  Power Redundancy Scheme	1+1 (with optional power supply)
  80 PLUS Certification	80 PLUS Titanium
  Voltage Required	AC 100-240 V (50/60 Hz)
  Channel Qty (Storage Controller)	8
  Buffer Size (Storage Controller)	2 GB
  RAID Level	RAID 0, 1, 5, 6, 10, 50, 60, JBOD
  Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
  Type (Storage Controller)	1 x RAID – PCIe 3.0 x8
  Storage Controller Name	ThinkSystem RAID 930-8i
  Cache Per Processor	13.75 MB L3 Cache
  Optical Storage	No optical drive
  OS Provided	No operating system
  Monitor Type	None
  Graphics Processor	Matrox G200
  Video Memory	16 MB
  Video Interfaces	VGA
  Hard Drive	No HDD
  Height	43.8 cm
  Width	17.6 cm
  Weight	36 kg
  Depth	66 cm
  Shipping Height	37.2 cm
  Shipping Width	57.4 cm
  Shipping Depth	98.2 cm
  CPU Qty	1
  Max CPU Qty	2
  Clock Speed	2.2 GHz
  Max Turbo Speed	3.2 GHz
  Number of Cores	10-core
  Chipset Type	Intel C621
  CPU	Intel Xeon Silver 4210
  ENERGY STAR Version	3.0
  ENERGY STAR Certified	Yes
