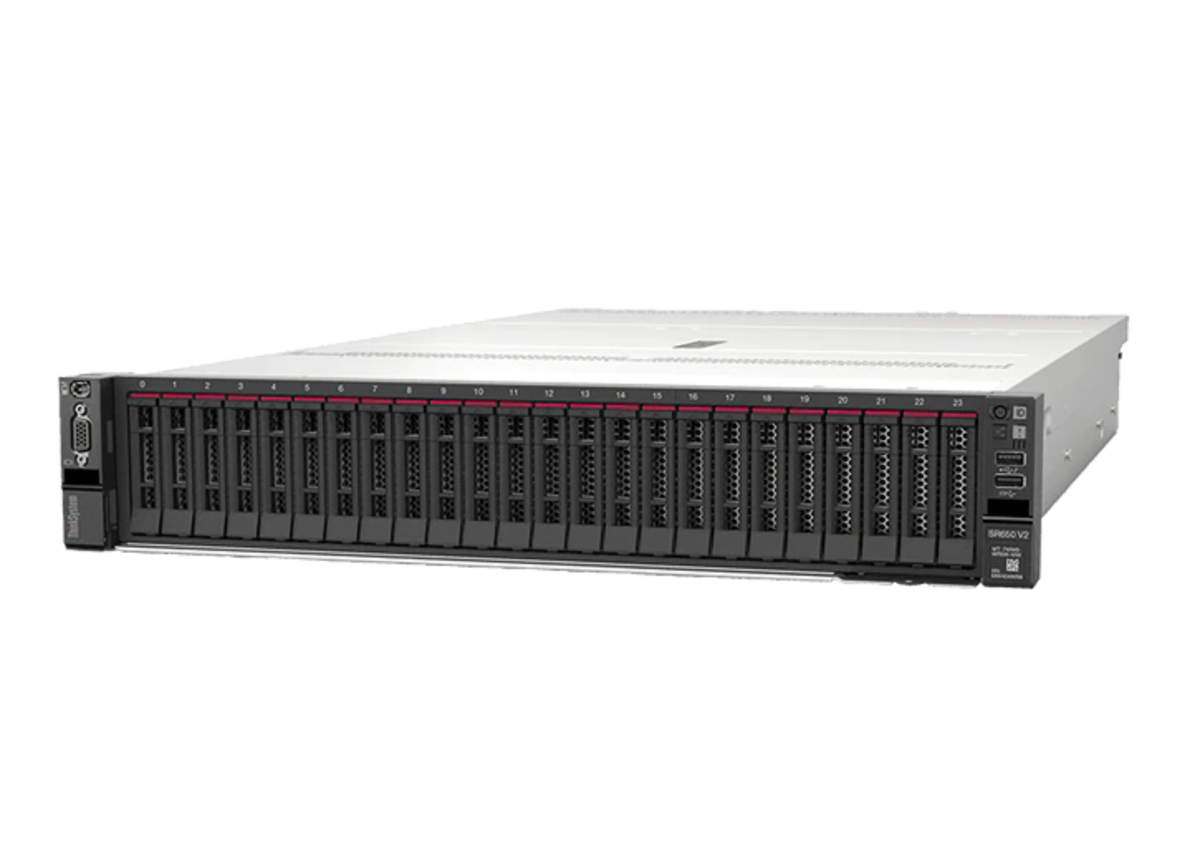

Lenovo ThinkSystem SR650 V2 Rack (2U) Intel Xeon Silver 4309Y 2.8 GHz 32 GB DDR4-SDRAM 1100 W Server
Top-performing server for data centers needing scalability
Lenovo ThinkSystem SR650 V2 is a 2-socket rack server designed for speed and expansion, with flexible storage, I/O, and industry #1 reliability for business-critical workloads.
Future defined data center
Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR650 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
ThinkSystem SR650 V2 is tuned for Intel® Optane™ persistent memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.
Flexible storage
Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 & U.3 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Get the Help You Need, When You Need It with Premier Support
Lenovo Premier Support alleviates the problems encountered when maintaining your data center by putting you in contact with the right person on the first call. Free up your maintenance, management, and employee training resources, and focus efforts on what’s more important: innovation and growing your business. -
Category Details General Type: Server, 2U Rack-mountable, 8 Hot-Swap Bays, 2-way Scalability, TPM 2.0 Security Chip, 5 Fans, EMEA Region Expansion/Connectivity 8 x Hot-swap 2.5″ Bays, PCIe 4.0 Slots: 1 x OCP 3.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x8, USB: 5 x USB 3.1 Gen 1, 1 x USB 2.0, 1 x VGA, 1 x RJ-45 Management, 1 x Diagnostics Warranty 3-Year Limited Warranty, On-site, Next Business Day Response RAM 32 GB DDR4 SDRAM, 3200 MHz, ECC, 32 Slots (31 Empty), Max 8 TB 3DS Registered, 12 TB Persistent Memory Networking Remote Management: XClarity Controller (XCC) Enterprise, Protocol: SNMP 3, IPMI 2.0 Miscellaneous Theft Protection: Chassis Intrusion Switch, Compliant Standards: Various (BSMI, FCC, VCCI, UL, etc.) Power 1 x 1100W Hot-Plug PSU, Max Supported: 2, Optional Redundancy, 80 PLUS Titanium Certified Storage Controller ThinkSystem RAID 930-8i, 8 Channels, 2 GB Buffer, RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD, Interface: SATA 6Gb/s, SAS 12Gb/s Cache Memory L3 Cache: 12 MB per Processor Optical Storage No Optical Drive Operating System No OS Provided Graphics Controller Matrox G200, 16 MB Video Memory, VGA Hard Drive No HDD Installed Dimensions & Weight Width: 44.5 cm, Height: 8.7 cm, Depth: 76.4 cm, Weight: 38.8 kg Processor/Chipset 1 x Intel Xeon Silver 4309Y, 8-core, 2.8 GHz (Max Turbo 3.6 GHz), Max CPUs: 2, Chipset: Intel C621A Sustainability EPEAT Compliant: EPEAT Bronze -
