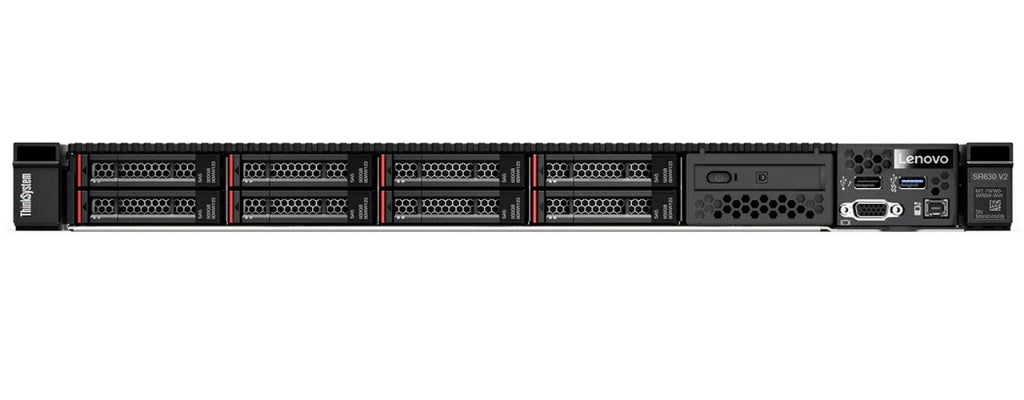

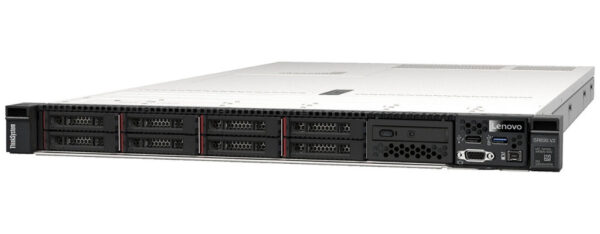

Lenovo ThinkSystem SR630 V2 Rack (1U) Intel Xeon Silver 4314 2.4 GHz 32 GB DDR4-SDRAM 1100 W Server
Built for business, with business-critical versatility
Confidently deploy performance-driven, industry-leading in reliability and security enhanced SR630 V2 for cloud, analytics, virtualization or gaming.
Future defined data center
Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR630 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
ThinkSystem SR630 V2 is tuned for Intel® Optane™ Persistent Memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.
Flexible storage
Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, U.2 & U.3 NVMe PCIe drives, or EDSFF-based SSDs. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Get the Help You Need, When You Need It with Premier Support
Lenovo Premier Support alleviates the problems encountered when maintaining your data center by putting you in contact with the right person on the first call. Free up your maintenance, management, and employee training resources, and focus efforts on what’s more important: innovation and growing your business. -
Category Feature Details General Type Server Hot-Swap Bays Qty 8 Server Scalability 2-way Product Form Factor Rack-mountable – 1U Embedded Security Trusted Platform Module (TPM 2.0) Security Chip Localisation Region: EMEA Built-in Devices 6 x fans Expansion / Connectivity Bays 8 (total) / 8 (free) x hot-swap 2.5″ Interfaces 4 x USB 3.1 Gen 1 (1 front, 3 rear), 1 x USB 2.0 (front), 2 x VGA (1 front, 1 rear), 1 x management, 1 x diagnostics, 1 x USB 3.1 Gen 1 (internal) Slots 1 x PCIe 4.0 x16 / OCP 3.0, 2 x PCIe 4.0 x16 (low-profile) Manufacturer Warranty Service & Support Limited warranty – 3 years – on-site – response time: next business day RAM Configuration Features 1 x 32 GB Rated Memory Speed 3200 MHz Form Factor DIMM 288-pin Technology DDR4 SDRAM – ECC Effective Memory Speed 2667 MHz Slots 32 (Total) / 31 (empty) Features Registered, Memory Mirroring, no mixing of memory types, slots 17-32 require 2 CPUs Installed Size 32 GB (installed) / 8 TB (max) Networking Remote Management Controller XClarity Controller (XCC) Enterprise Miscellaneous Theft/Intrusion Protection Chassis intrusion switch Compliant Standards Multiple standards including EN, FCC, UL, VCCI, and more Power Installed Qty 1 Max Supported Qty 2 Power Redundancy Optional Device Type Power supply – hot-plug Power Provided 1100 Watt Power Redundancy Scheme 1+1 (with optional power supply) 80 PLUS Certification 80 PLUS Titanium Voltage Required AC 100-240 V (50/60 Hz) Storage Controller Channel Qty 8 Buffer Size 2 GB RAID Level RAID 0, 1, 5, 6, 10, 50, JBOD, 60 Controller Interface Type SATA 6Gb/s / SAS 12Gb/s Type 1 x RAID – PCIe 3.0 x8 Storage Controller Name ThinkSystem RAID 930-8i Cache Memory Cache Per Processor 24 MB Installed Size L3 Cache – 24 MB Optical Storage Type No optical drive Operating System / Software OS Provided No operating system Monitor Monitor Type None Graphics Controller Video Memory 16 MB Video Interfaces VGA Graphics Processor Matrox G200 Hard Drive Type No HDD Dimensions & Weight Width 44 cm Height 4.3 cm Weight 20.8 kg Depth 77.3 cm Dimensions & Weight Details 58.7 cm – 99.8 cm – 22.5 cm Processor / Chipset CPU Qty 1 Max CPU Qty 2 Clock Speed 2.4 GHz Max Turbo Speed 3.4 GHz Number of Cores 16-core Chipset Type Intel C621A CPU Intel Xeon Silver 4314 Sustainability Information ENERGY STAR Version 3.0 ENERGY STAR Certified Yes EPEAT Compliant EPEAT Bronze -
