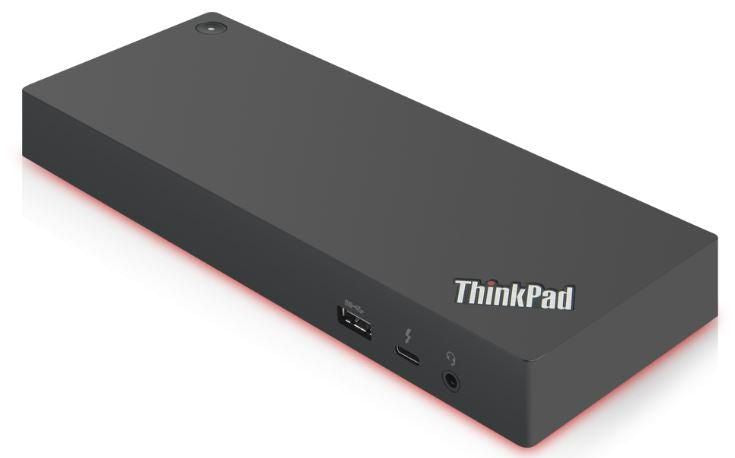

Lenovo ThinkPad Thunderbolt 3 Dock, Gen 2 135W | 40AN0135DK

• Description
• Specifications
• Downloads

• Lenovo ThinkPad Thunderbolt 3 Dock, Gen 2 135W | 40AN0135DK

  Maximize Your Productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast! This Intel Thunderbolt™ Chipset powered Thunderbolt Dock Gen 2 invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptop. Expand your horizons with multiple 4K displays, and transfer files at record speed.It’s everything you need to enhance your creativity and efficiency today.

  Expand compatibility on USB-C and Thunderbolt systems: Dual UHD Displays provide the best video experience. Enhanced performance with professional video solutions and exclusive network manageability. The ThinkPad Thunderbolt 3 Dock Gen 2 is supported on the following Lenovo systems: ThinkPad X1 Yoga 2nd Gen (Machine Types: 20JD, 20JE, 20JF, 20JG); ThinkPad X1 Yoga 3rd Gen (Machine Types: 20LD, 20LE); ThinkPad T570 (Machine Types: 20H9, 20HA, 20JW, 20JX); ThinkPad P51s (Machine Types: 20HB, 20HC, 20JY, 20K0); ThinkPad T580 (Machine Types: 20L9, 20LA); ThinkPad P52s (Machine Types: 20LB, 20LC).





• Category	Details
  Network
  Ethernet LAN	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Operational conditions
  Operating relative humidity (H-H)	5 – 95 %
  Operating temperature (T-T)	0 – 40 °C
  Package dimensions
  Depth (package, cm)	27 cm
  Gross Weight (Package, kg)	2 kg
  Height (package, cm)	8 cm
  Width (package, cm)	17 cm
  Packaging content
  AC adapter included	Yes
  Cables included	Thunderbolt
  Manual	Yes
  Packaging data	Quantity per pack
  Performance
  Brand compatibility	Lenovo
  Cable lock slot	Yes
  Card reader integrated	No
  Charging function	Yes
  Compatibility	ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC)
  LED indicators	Yes
  Maximum digital resolution	3840 x 2160 Pixels
  Plug and Play	Yes
  Product colour	Black
  Ports & interfaces
  Combo headphone/mic port	Yes
  Connectivity technology	Wired
  DisplayPorts quantity	2
  HDMI ports quantity	2
  Host interface	Thunderbolt 3
  Microphone in	No
  USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
  USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
  Power
  Power supply	135 Watt
  Product dimensions
  Net Weight (Product, kg)	1.4 kg
  Product Depth	8 cm
  Product Height	3 cm
  Product Width	22 cm
  Software
  Windows operating systems supported	Windows 10/Windows 7
  Technical details
  Harmonized System (HS) code	84733020
  Vendor information
  Brand Name	Lenovo
  Warranty	1 Year(s)

• Description	Downloads
  User Guide	Downloads
