Lenovo ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 M.2 WWAN Module | 4XC1Q24436

• Description
• Specifications

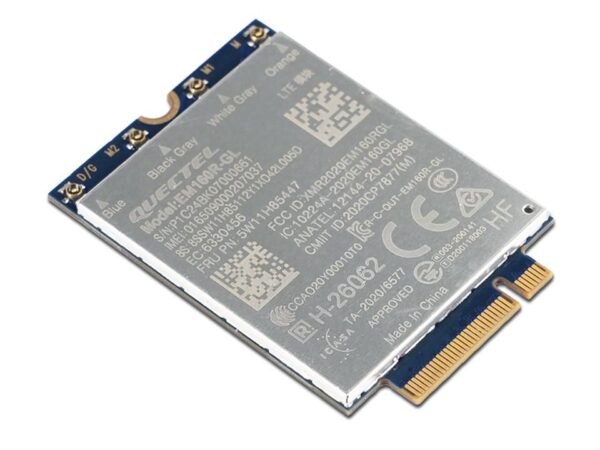

• Lenovo ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 M.2 WWAN Module


  ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 M.2 WWAN Module for X1 Carbon Gen 12/P16v Gen 2
  ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 M.2 WWAN Module for X1 Carbon Gen 12/P16v Gen 2 is an LTE advanced category 16 module. Adopting the 3GPP Release 14 technology, it delivers speed of 1.0 Gbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.

•

  Feature	Details
  Battery	NONE – Only for non-battery items
  Design	Internal Antenna
  Certification	NCC, ANATEL, SRRC, NAL, CCC, CE, FCC, IC, RCM, PTCRB, GCF, KC, JATE, TELEC, NBTC, IMDA, ICASA
  Compatible Products	ThinkPad P14 Series, ThinkPad X1 Series (X1 Carbon G12)
  Network	Max Data Transfer Rate: 1000 Mbit/s, 4G
  Operating Conditions	Operating Temp: -40 to 75°C, Humidity: 5-95%, Storage Temp: -40 to 90°C
  Package Dimensions	Depth: 14.4 cm, Height: 17.7 cm, Width: 5.3 cm, Gross Weight: 0.26 kg
  Ports & Interfaces	Wireless, Host Interface: M.2, WWAN
  Product Dimensions	Depth: 3 cm, Height: 0.23 cm, Width: 4.2 cm, Net Weight: 0.2 kg
  System Requirements	Windows 10/11 x64
  Vendor Information	Brand: Lenovo
  Warranty	1 Year
  Categories	Server, Computer & Printer Parts, System Components, Networking Cards
