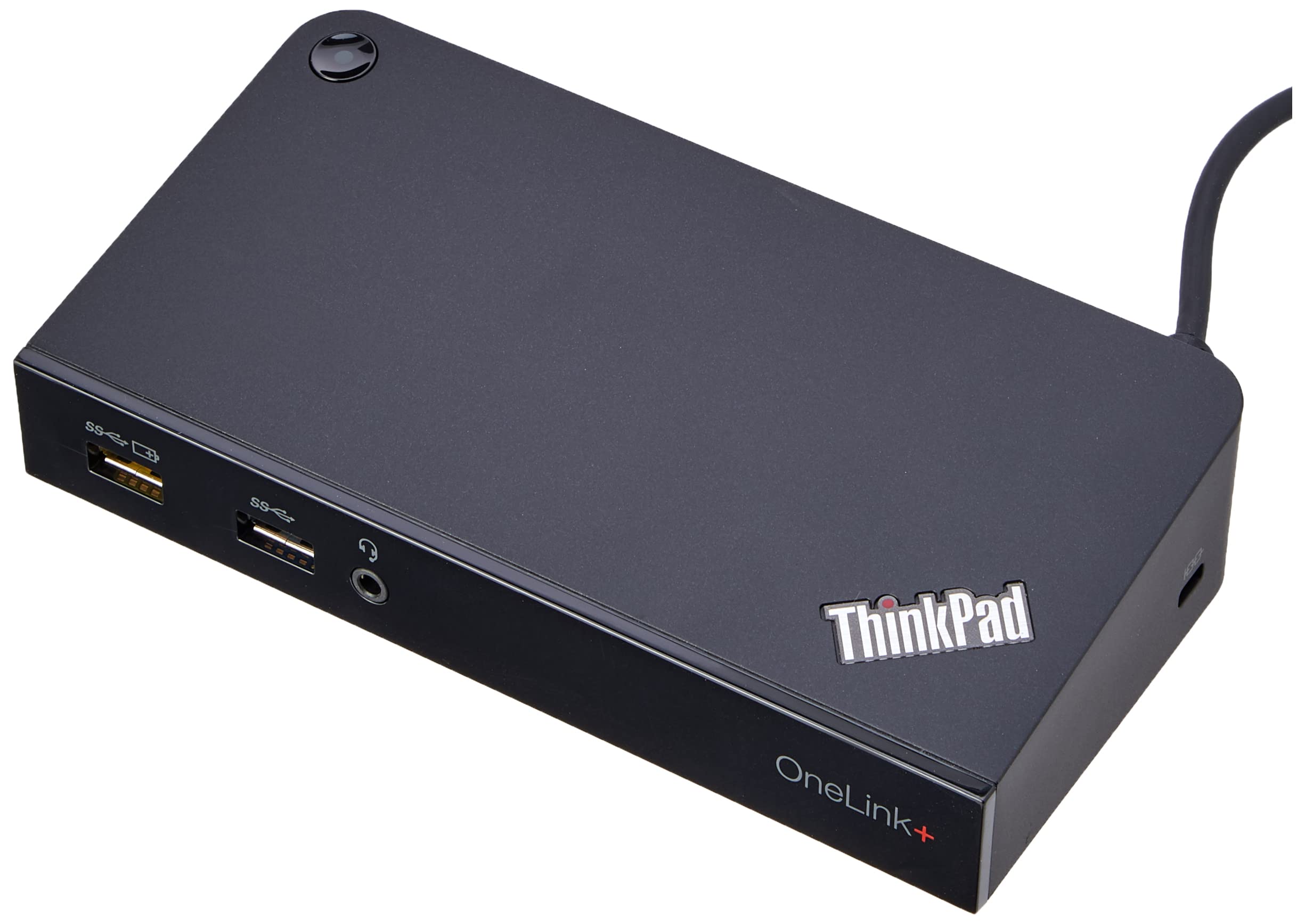

Lenovo ThinkPad OneLink+ Dock | 40A40090EU

• Description
• Specifications

• Lenovo ThinkPad OneLink+ Dock | 40A40090EU

  The ThinkPad OneLink+ Dock, powered by Lenovo’s revolutionary OneLink+ technology, transforms your new ThinkPad into a full-featured machine for the office or at home. Not only does the new convenient OneLink+ connector deliver super-fast data transfers with USB 3.0 and up to Ultra High Definition (UHD) video, but it also charges your notebook, mobile phone and tablet while you work or play!

  Unlike USB docks, the OneLink+ Dock delivers video with no compression, no drivers and no impact on image quality and notebook performance. Simply connect your notebook with the ThinkPad OneLink+ Dock to connect to power, the Internet and workplace accessories through a convenient single connector. Expect nothing short of outstanding value with connections for two external displays, a keyboard, mouse and printer. It also comes with a ThinkPad 90 W slim-tip AC adapter.

  The docking station is equipped with a stereo/microphone combination audio port and two USB 3.0 ports on the front panel, with one of these being an “always (power) on” port for mobile device charging. In addition, the rear panel has two USB 2.0 ports and two USB 3.0 ports, enabling maximum device connectivity. The OneLink+ Dock also comes with a 10/1000 Gigabit Ethernet port, one VGA port and two DisplayPort 1.2 ports for up to three video outputs* with a maximum resolution of 4K2K**. For security, the dock can be secured via a cable lock.

  With all these great features, the ThinkPad OneLink+ Dock actually takes up less desk space than other typical docking stations!

  Features and Benefits:
  – A single OneLink+ cable enables all docking functions while delivering continuous power, allowing you to boost your productivity in no time
  – Up to 4k video output allows you to enjoy a vivid video experience with your brand new ThinkPad Ultrabook
  – Power button on the dock mirrors the system power button
  – Gigabit Ethernet (10/100/1000) with Boot over LAN support on selected systems

• Category	Details
  Network
  Ethernet LAN	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Package dimensions (verified)
  Depth Verified	20 cm
  Gross Weight Verified	0.938 kg
  Height Verified	6.8 cm
  Width Verified	24.4 cm
  Packaging content
  AC adapter included	Yes
  Performance
  Brand compatibility	Lenovo
  Cable lock slot	Yes
  Card reader integrated	No
  Compatibility
  ThinkPad Yoga 260
  Maximum digital resolution	3840 x 2160 Pixels
  Product colour	Black
  Ports & interfaces
  Combo headphone/mic port	Yes
  Connectivity technology	Wired
  DisplayPorts quantity	2
  Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
  Microphone in	No
  USB 2.0 ports quantity	2
  USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
  VGA (D-Sub) ports quantity	1
  Power
  Power source type	DC
  Product dimensions
  Net Weight (Product, kg)	0.8 kg
  Vendor information
  Brand Name	Lenovo
  Warranty
  Warranty	1 Year(s)
