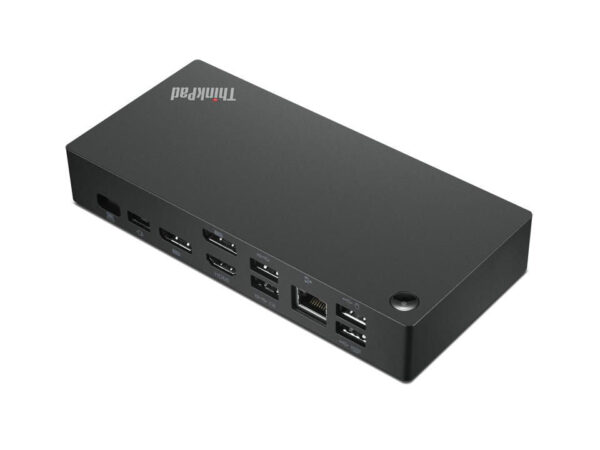

Lenovo ThinkPad Dock USB-C 90W | 40AY0090DE

• Description
• Specifications

• Lenovo ThinkPad Dock USB-C 90W | 40AY0090DE


  The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks, Automated firmware updates, Next-level plug-and-play. Everything you’d want from the future of docking is here. It’s perfect for mixed PC environments too, giving user’s the freedom to connect any USB Type C industray standard Notebooks.

  One Dock. No Limits.
  Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.

  One Cable. No Hassle.
  With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.

  Entire Fleet. One Manager.
  The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It’s an IT manager’s dream.

• Category	Specification
  Legal Information
  UNSPSC Code	43211615
  Logistics data
  Harmonized System (HS) code	84733020
  Network
  Ethernet LAN	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Operational conditions
  Operating relative humidity (H-H)	20 – 95 %
  Operating temperature (T-T)	0 – 35 °C
  Package dimensions (verified)
  Depth Verified	20.5 cm
  Gross Weight Verified	0.9 kg
  Height Verified	7.5 cm
  Width Verified	16 cm
  Packaging content
  Cables included	USB Type-C
  Packaging data
  Quantity per pack	1 pc(s)
  Performance
  Cable lock slot	Yes
  Cable lock slot type	Kensington
  Card reader integrated	No
  Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
  HD type	4K Ultra HD
  Maximum digital resolution	3840 x 2160 Pixels
  Number of displays supported	3
  On/off switch	Yes
  Product colour	Black
  Ports & interfaces
  Combo headphone/mic port	Yes
  Connectivity technology	Wired
  DisplayPorts quantity	2
  HDMI ports quantity	1
  Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  Microphone in	No
  USB 2.0 ports quantity	2
  USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
  USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
  Power
  Power connector	USB Type-C
  Power source type	USB
  Power supply	90 Watt
  Product dimensions
  Net Weight (Product, kg)	0.45 kg
  Product Depth	8 cm
  Product Height	3.08 cm
  Product Width	17.1 cm
  Software
  Windows operating systems supported	Windows 10/Windows 7
  Sustainability
  Sustainability certificates	CE
  Vendor information
  Brand Name	Lenovo
  Warranty	1 Year(s)
