Lanview 500m Cat6a U-FTP Cable 4x2xAWG23 PE Black Outdoor | LVN122445

• Description
• Specifications

• Lanview 500m Cat6a U-FTP Cable 4x2xAWG23 PE Black Outdoor

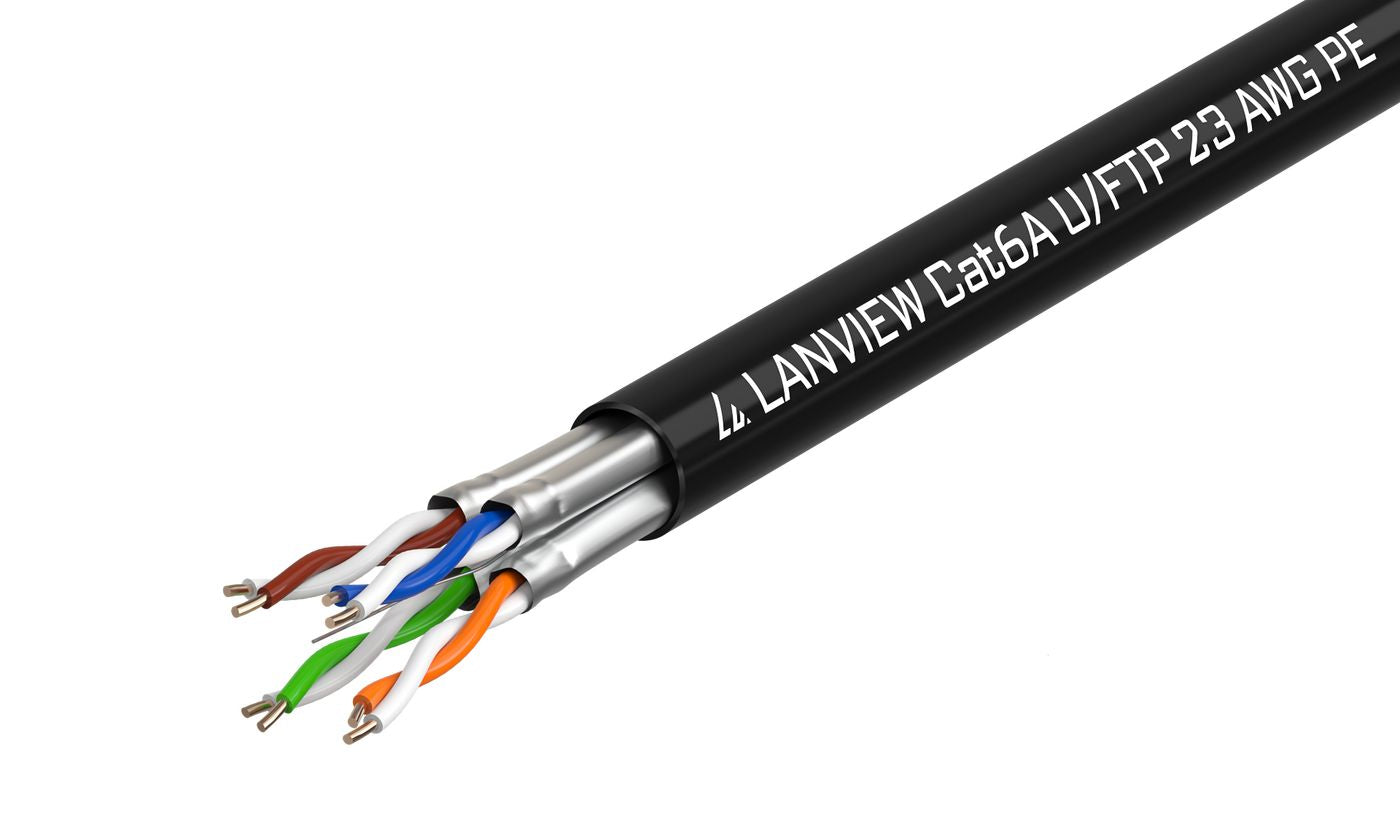

  500m Cat6a U-FTP cable 4x2xAWG23 PE black outdoor
  Used in structured cabling systems outdoor. Typically used as intermediate cabling between buildings as well as outdoor surveillance.
  This type of cable has no overall shielding but the individual twisted pairs are wrapped in a foil screen, offering some protection from EMI and crosstalk from adjacent pairs and other cables.
  Lanview Cat6a U-FTP PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4×2 color coded PE insulated conductors,

• Feature	Details
  Battery Type	None (Non-battery item)
  AWG Wire Size	23
  Cable Class	D
  Cable Fire Class	Fca
  Cable Length	500 m
  Cable Shape	Round
  Cable Shielding	U/UTP (UTP)
  Cable Standard	Cat6a
  Cable Type	Cable on Reel
  Cabling Technology	10GBase-T
  Conductor Material	Copper
  Conductor Type	Solid
  Connector 1	Open End
  Connector 2	Open End
  Data Transfer Rate	10 Gbit/s
  Ethernet Interface	10 Gigabit Ethernet
  Frequency	500 MHz
  HS Code	84733080
  Jacket Material	Polyethylene (PE)
  Product Color	Black
  RoHS Compliance	Yes
  Outdoor Use	Yes
  UNSPSC Code	26121609
  Package Depth	35 cm
  Package Height	40 cm
  Package Width	35 cm
  Package Weight	26.5 kg
  Net Weight	22.5 kg
  Product Depth	35 cm
  Product Height	40 cm
  Product Width	35 cm
  Brand	Lanview
  Warranty	25 Years
  Outer Diameter	7.3 mm
  Main Category	Network
  Subcategory	Cables, Network Cables
