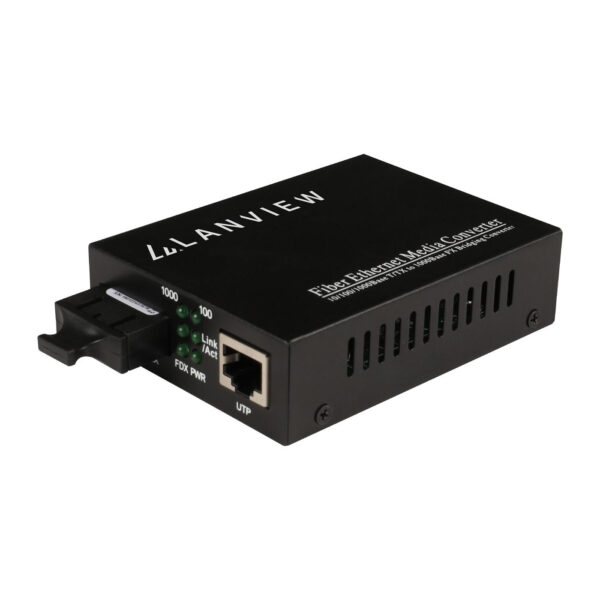

Lanview 1-Port 10/100/1000X SC to 1-Port 10/100/1000T 802.3x Media Converter

• Description
• Specifications
• Downloads

• Lanview 1-Port 10/100/1000X SC to 1-Port 10/100/1000T 802.3x Media Converter


  1-Port 10/100/1000X SC to 1-Port 10/100/1000T 802.3x Media Converter
  The transceiver facilitates the conversion of 1000BASE-SX/LX/LH/EX/ZX fiber to 10/100/1000Base-T copper media and vice versa.
  it is engineered to transmit data for distances up to 80 kilometers.
  Additionally, the SFP to Ethernet Converter can operate independently as a standalone device or in conjunction with Lanview’s 19” system chassis.

• Category	Details
  Design	Certification: CE, FCC, RoHS
  	Housing Material: Metal
  	IP Code: IP20
  	LED Indicators: Link/Activity/FDX/Power/TX/RX
  Legal Information	UNSPSC Code: 43201553
  Management Features	Plug and Play: Yes
  Network	Cable Types: Cat5/Cat5e/Cat6/Cat6a/Cat7
  	Copper Ethernet: 1000BASE-LX/SX
  	Duplex System: Full
  	Flow Control: Yes
  	Standards: IEEE 802.3ab/ae/an/bz/u/x
  Operational Conditions	Humidity: 5-95%
  	Operating Temp: 0 – 50°C
  	Storage Temp: -40 to 70°C
  Other Features	Connectors: RJ45, SC
  	Power Requirements: 5V, 1A
  	Max Transmission Distance: 20 km
  Package Dimensions	Depth: 10 cm, Height: 5 cm, Width: 15 cm
  	Gross Weight: 0.53 kg
  Packaging Content	Quick Installation Guide: Yes
  	User Guide: Yes
  Performance	Fiber Cable Diameters: 50/125, 62.5/125, 9/125 µm
  	Fiber Mode: Multi/Single-mode
  Ports & Interfaces	Connectivity: Wired
  	Fiber Connector: SC
  Power	Input Voltage: 5V, Current: 1A
  Product Dimensions	Depth: 7.8 cm, Height: 2.3 cm, Width: 9.5 cm
  	Net Weight: 0.43 kg
  Technical Details	Sustainability: LVD, RoHS
  	Compliance: Yes
  Vendor Information	Brand: Lanview
  	Warranty: 2 Years
  Categories	Main: Network
  	Subcategories: Wired Network, Network Media Converters

• Description	Downloads
  Lanview 1-Port 10/100/1000X SC to 1-Port 10/100/1000T 802.3x Media Converter DataSheet	Downloads
