Laminated IPS 3.0 inch backlight LCD screen kit M2 for Nintendo Game Boy Advance GBA AGB with bracket – black / Rose red (pink) | Funnyplaying
Features:
– Laminated 3.0 IPS TFT backlight screen kit M2 for Nintendo Game Boy Advance (AGB)
– No dust issues, screen lens pre-fitted in clean environment via factory lamination.
– All features accessible by touch control, soldering controls is optional.
– No ghosting & better image brightness / color than the original screen.
– Custom Laminated ITA/IPS ready shell required.
Description:
This is a slightly updated version of the popular Funnyplaying laminated IPS screen kit for Game Boy Advance with a 3.0 inch display area.
If you want a brighter and more vibrant display than the original screen but also want to keep the authentic pixel size, then the ITA kit for Game Boy Advance is a good option.
The updated M2 panel exhibits a 99% coverage of the sRGB color gamut and achieves a maximum luminance of 500 cd/m².
The settings are held in the memory when powered off, and on the lowest brightness the screen kit consumes 0.27w.
The screen kit reprovides a much brighter, more vibrant image than the original display, without any ghosting.
You have the option of a no solder installation, with touch controls to access the on screen display (OSD) menu.
Using the laminated IPS/ITA shell is highly recommended (not included), using a regular shell would require very significant cutting of the shell and the designing of a support bracket.
An injection molded bracket is included with the kit, this bracket is for use with a laminated IPS shell from Funnyplaying, it is not compatible with any other shell type.
The screen kits supports adjustable brightness with a 0.14w power draw on the lowest brightness setting. To adjust the brightness simply touch the logo on the glass.

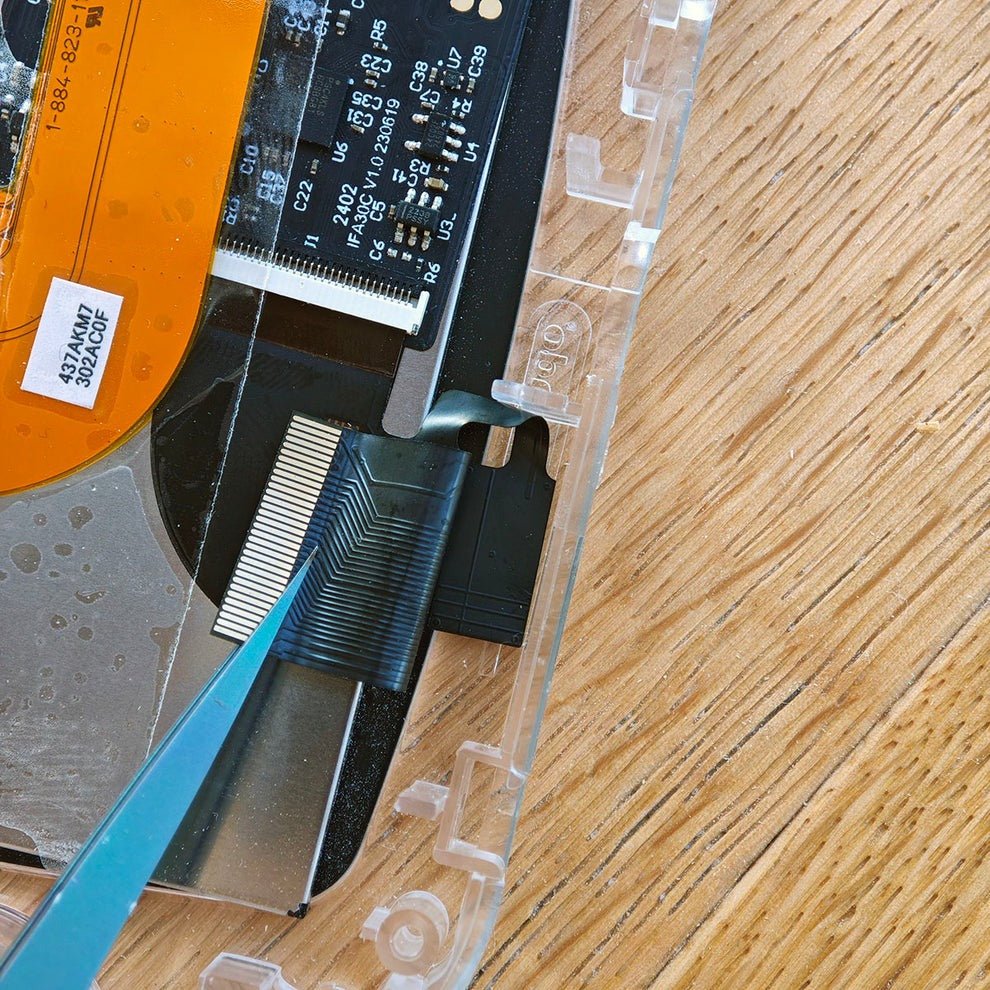

The full contents of the kit is as follows: Laminated glass IPS LCD screen, Driver ribbon cable, hookup wires, injection molded bracket and foam pad.
Once installed the screen supports brightness adjustment via the a touch sensor.

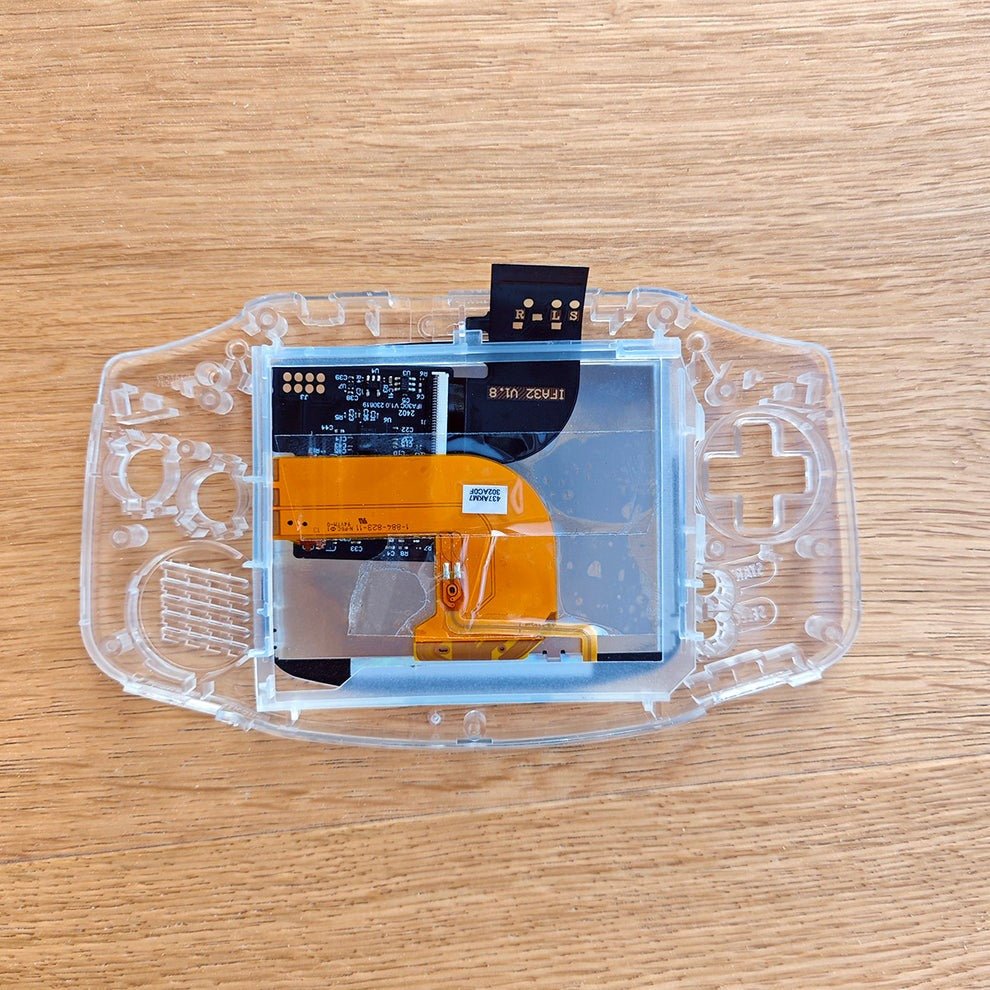

This kit includes all of the items needed to fit the screen into a modified housing (not included), you can cut down your own shell to make the room for the LCD.
You will need to have some patience and good electronics skills to fit this kit although purchasing a pre-modified shell (once available) can drastically reduce the effort required and save you up to one hour of cutting and cleaning your own housing.
Additional tools needed include a soldering iron and solder if you wish to install the OSD menu functions.
Please note that the LCD screen and ribbon cable require care to install and are fragile in nature, they are also more susceptible to damage once installed if the console is dropped, LCD screens can crack under pressure or with a impact, our warranty does not cover accidental / user damage of any components in this kit. Replacement LCD screens are available to purchase separately.
