Kramer Electronics VM-16H 1:16 HDMI Distribution Amplifier

• Description
• Specifications
• Downloads

• Kramer Electronics VM-16H1:16 HDMI Distribution Amplifier

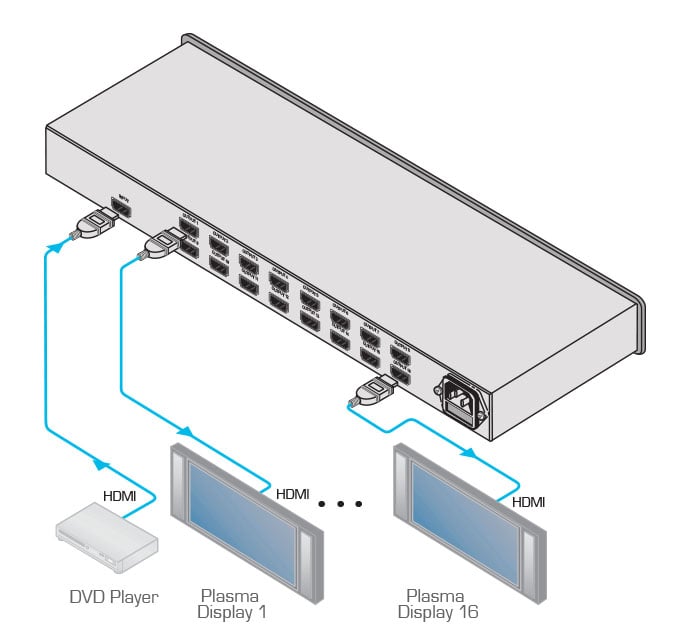

  The VM−16H is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to 16 identical outputs.

  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
  HDTV Compatible.
  HDCP Compliant.
  HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
  3D Pass–Through.
  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  Active Output LED Indicators.
  Worldwide Power Supply — 100–240V AC.
  Standard 19” Rack Mount Size — 1U. Rack “ears” included.
  Spec sheet
  Print this page
  Marketing Literature


  Applications
  Home theater, presentation and multimedia applications.
  Rental and staging.
  Retail store displays.

• Feature	Details
  Input	HDMI Connector
  Output	8/16 HDMI connectors
  Bandwidth	6.75Gbps (2.25Gbps per graphic channel)
  Compliance with HDMI Standard	Supports HDMI and HDCP
  Controls	SELECT and READ buttons for EDID information
  Indicator LEDs	OUTPUT STATUS 1 to 8/16
  Operating Temperature	0° to +40°C (32° to 104°F)
  Storage Temperature	–40° to +70°C (–40° to 158°F)
  Humidity	10% to 90%, RHL non–condensing
  Power Consumption	100–240V AC, 50/60Hz 48VA
  Included Accessories	Power cord
  Product Dimensions	19″ x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
  Product Weight	1.8kg (4.0lbs) approx.
  Shipping Dimensions	52.50cm x 33.00cm x 10.70cm (20.67″ x 12.99″ x 4.21″) W, D, H
  Shipping Weight	3.2kg (7.1lbs) approx.
