• Kramer Electronics PA-240Z 240W Power Amplifier

  PA−240Z is a high−performance, selectable Hi−Z (70V/100V) or Lo−Z (4Ω/8Ω) power amplifier featuring balanced and unbalanced inputs and additional line−level output. This versatile amplifier features built−in DSP, auto−standby and maximum durability. PA−240Z is suitable for a vast range of AV installations.

  High–performance Amplifier — With built–in DSP and additional balanced stereo line–level output. PA–240Z features flat frequency response, unmatched sonic performance, excellent signal to noise ratio, and extraordinarily low distortion levels.

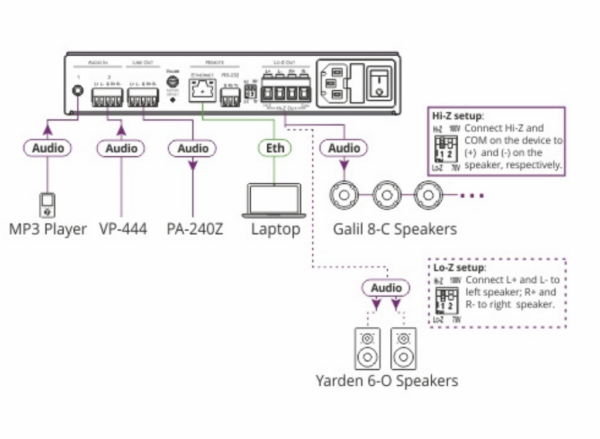

  Adaptable to Any AV Installation — Switch between Lo–Z and Hi–Z to accommodate any type of loudspeaker installation. Select 1 Channel of 240W into a 70V/100V line or 2 channels of 120W into 4Ω/8Ω.

  Individual Mix Per Output — Each output supports an independent input mix with master volume, 3–band parametric EQ, and selectable high–pass filter. Create one output mix and EQ settings suitable for the venue and another for recording or cascading more amplifiers, powered speakers or subwoofers according to any AV installation requirements.

  Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.

  Durable and Reliable — PA–240Z is immune to failure. It includes layers of protection against over–current, DC voltage at the outputs, high frequency, and over–heating with intelligent, heat–sensitive fans for added protection.

  Flexible Control Options — Control locally via RS–232 serial commands or remotely, via embedded web pages over Ethernet.

  Power Efficient — This super–efficient amplifier includes auto–standby for power saving and cost reducing operation. No need to rely on default auto–standby settings. Adjust your noise floor threshold based on exactly when your amplifier needs to go into sleep mode and when it needs to wake up.

  Easy Installation — ½ 19” size enables mounting in a 1U rack space with the recommended rack adapter.


  Applications
  Medium to large meeting rooms
  Auditoriums and lecture halls
  Court rooms
  Retail stores and shopping centers
  Hotel lobbies
  Transportation hubs

• Category	Specification
  Inputs	1 unbalanced stereo on a 3.5mm connector
  	1 balanced stereo +4dBu/10kΩ on a 5-pin terminal block
  Outputs	1 balanced stereo line level on a 5-pin terminal block
  	1 stereo or 1 mono speaker output on a 4-pin large terminal block
  Input Sensitivity	Full power @ 0.3V (–10dBV)
  Output Power	2 x 120W @ 4Ω or 8Ω
  	1 x 240W @ 70V or 100V
  Amplifier Type	Class D
  Maximum Voltage Gain	26dB SE / 32dB BTL
  Dynamic Range	119dB
  Frequency Response	20Hz to 20kHz @ +/–1dB
  S/N Ratio	80dB — 10dBV, 20 Hz — 20 kHz
  Controls	Screw trimmer amplifier attenuator, IP and RS–232
  Power	Consumption: 265VA
  	Source: Universal mains operational voltage 85VAC — 265VAC
  	(full power at 120V — 230V)
  Audio THD + Noise	THD+N (1kHz @ 1W) 0.003 %
  Audio 2nd Harmonic	0.08% @ 75W RMS @ 4Ω 6.67kHz
  Total System Efficiency	89.5%
  Included Accessories	Power cord
  Product Dimensions	21.46cm x 16.30cm x 4.36cm (8.45″ x 6.42″ x 1.72″ ) W, D, H
  Product Weight	0.9kg (2.1lbs) approx.
  Shipping Dimensions	40.50cm x 29.70cm x 9.00cm (15.94″ x 11.69″ x 3.54″ ) W, D, H
  Shipping Weight	1.5kg (3.4lbs) approx.
